| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 680 mm |
| Max. cross cut width left from saw blade | 650 mm |
| Saw blade angle | 45 – 90 ° |
| Max. cutting height 90° | 80 mm |
| Max. cutting height 45° | 58 mm |
| (Main) saw blade diameter | 254 mm |
| (Main) saw blade speed | 4000 min¯¹ |

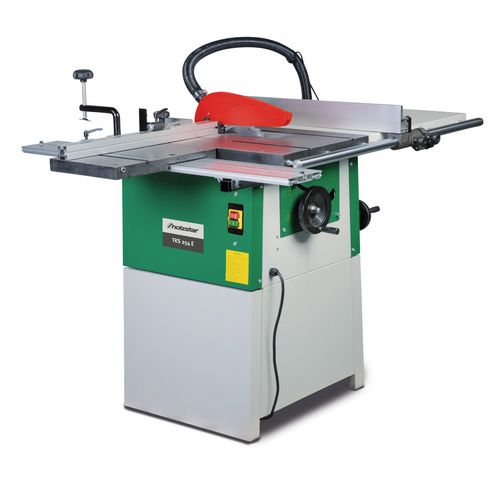

Table saw
TKS 254 E
Fixed machine with maximum cutting depth 80 mm
From 1.239,00
EUR excl. Tax / pc(s).
From 1.474,41
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| Electrical Data | Noise emission | General | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Absorbed power drive motor (kW) | Total rated value (A) | Supply voltage (V) | Sound pressure level (dB(A)) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| TKS 254 E (230 V) | 5902025 | 2.1 | 9.3 | 230 | 85.1 | 1 | 1.239,00 | 1.474,41 | |
| TKS 254 E (400 V) | 5902026 | 2.0 | 3.5 | 400 | 84.7 | 1 | 1.239,00 | 1.474,41 | |
Select Attributes
Electrical Data
- Absorbed power drive motor
- Total rated value
- Supply voltage
Noise emission
- Sound pressure level
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- Large dimensioned cast iron table
- Saw blade tilt from 90° to -45° to the left, precise, accurate to the degree and conveniently adjustable via handwheel and scale
- Large central suction connection Ø 100 mm
- The saw blade height adjustment is also carried out via a hand wheel from the operator's front panel
- The stable suspension of the saw unit at the front and rear enables precise cuts to be made
- With powerful motor and thermal overload protection

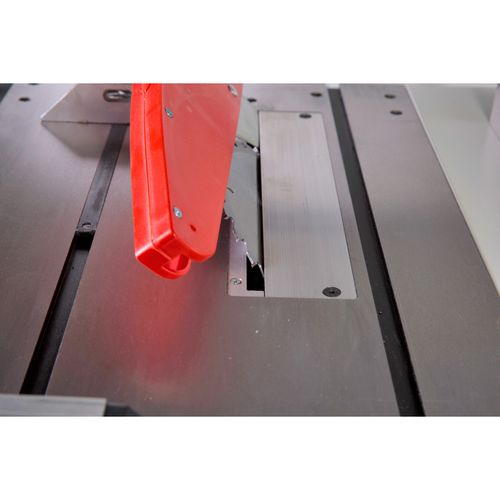

- Incl. saw blade protection hood with integrated suction connection
- Accurate blade rotation by 90° to -45° to the left
- High stability for precise cuts
| Dimensions and weights | |
|---|---|
| Length approx. | 1430 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1030 mm |
| Weight approx. | 105 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Total output | 2.1 kW |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 100 mm |
| Saw blade protection extraction port diameter | 30 mm |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 400 mm |
| Sliding carriage width | 250 mm |
| Table length | 635 mm |
| Table width | 420 mm |
| Work height | 850 mm |
Unit: pc(s).
