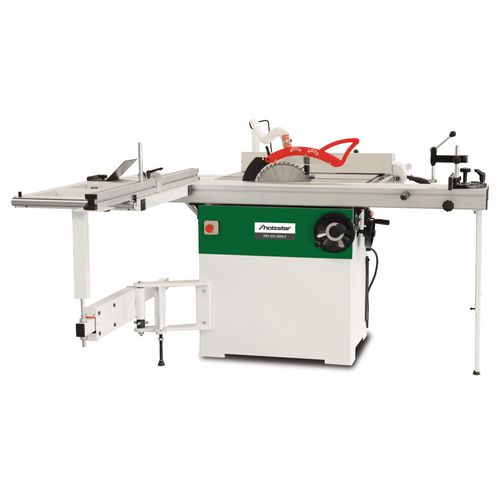

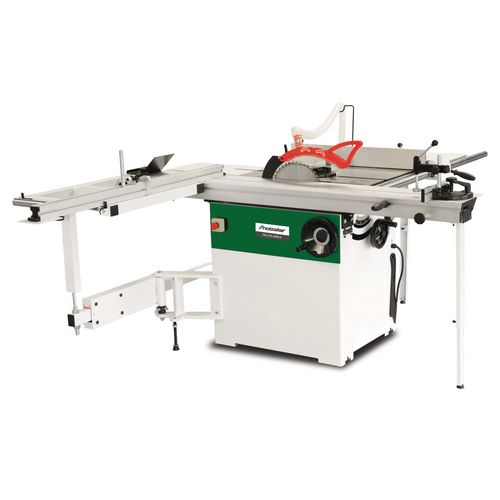

Productdetails
- Standard with Vorritzeinrichung
- From -45 ° to + 45 ° swiveling, extendable telescopic stop with finely adjustable stop flap
- Robust and precise design with sliding carriage
- The gray cast iron work table enables low-vibration work
- Saw blade height adjustment via a handwheel
- Saw blade pivoting from 90 to 45 ° adjustable via handwheel with scale
- Stable sawing unit guarantees vibration-free and precise work
- Solid boom table with roller and telescopic arm for maximum stability
- Miter fence and hold-down over the entire length of the carriage slidable
- Large aluminum rip fence on round rod guide with fine adjustment
- Strong drive motor for constant cutting speed, even at 100 mm cutting height
- Large dimensioned worktable and standard table extension for cutting widths up to 1220 mm
Circular saw unit |
---|
Max. cutting width with rip fence | 1220 mm |
Trimming length | 2000 mm |
Saw blade angle | 90 – 45 ° |
Max. cutting height 90° | 100 mm |
Max. cutting height 45° | 80 mm |
(Main) saw blade diameter | 315 mm |
(Main) saw blade speed | 4000 min¯¹ |
Dimensions and weights |
---|
Length approx. | 4330 mm |
Width/depth approx. | 4155 mm |
Height approx. | 1150 mm |
Weight approx. | 275 kg |
Electrical Data |
---|
Absorbed power drive motor | 3.5 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Extraction port |
---|
Extraction port diameter bottom | 100 mm |
Saw blade protection extraction port diameter | 38 mm |
Pre-scoring unit |
---|
Diameter saw blade | 90 mm |
Saw blade speed | 5800 min¯¹ |
Sliding carriage and table |
---|
Table length | 680 mm |
Table width | 580 mm |
Work height | 870 mm |
Unit: pc(s).
Packaging unit: 1
- Sliding tray with boom
- Roll of material on the boom
- Rip fence with round bar guide and fine adjustment
- table extension
- table extension
- flip stop
- edging shoe
- Eccentric
- Scoring unit
- Saw blade guard with suction hose
- Saw blade 315 x 30 x 3 mm 24 teeth
- Scoring saw blade 90 x 20 x 3 mm 12 teeth
Table broadening | ✔ |
Table lengthening | ✔ |
Saw blade cover | ✔ |
