| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 290 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 83 mm |
| Max. cutting height 45° | 60 mm |
| (Main) saw blade diameter | 315 mm |
| (Main) saw blade speed | 2800 min¯¹ |

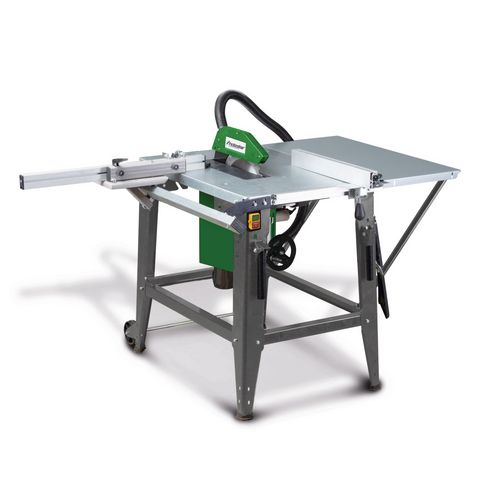

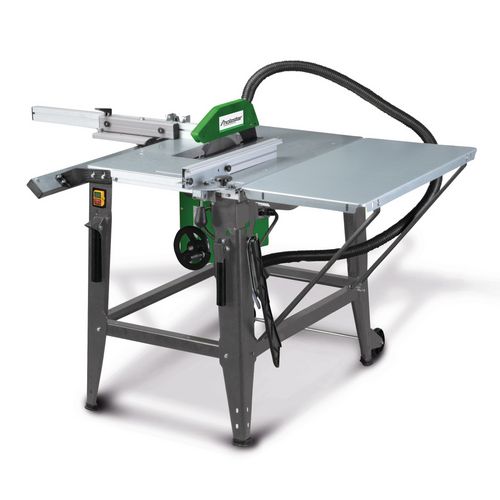

Table saw
TKS 316 E (400 V)
Mobile DIY machine for trimming boards, for cutting cuts, bevel and angle cuts
419,00
EUR excl. Tax / pc(s).
498,61 EUR incl. 19% Tax / pc(s).
498,61 EUR incl. 19% Tax / pc(s).
Promotional price *
329,00 EUR excl. Tax / pc(s).391,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 5902317
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Inclination of the saw blade from 0 to 45°, adjustable without tools

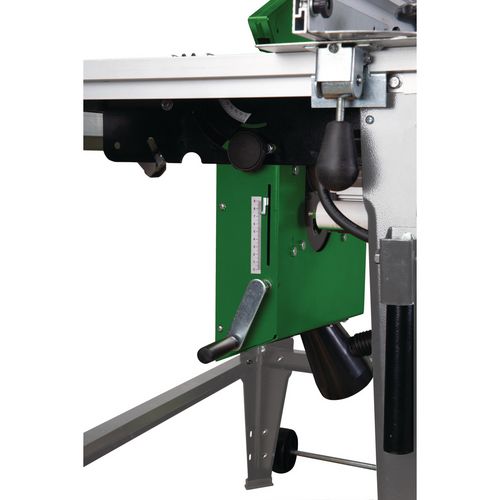

- Height adjustment of the saw blade via hand crank and scale

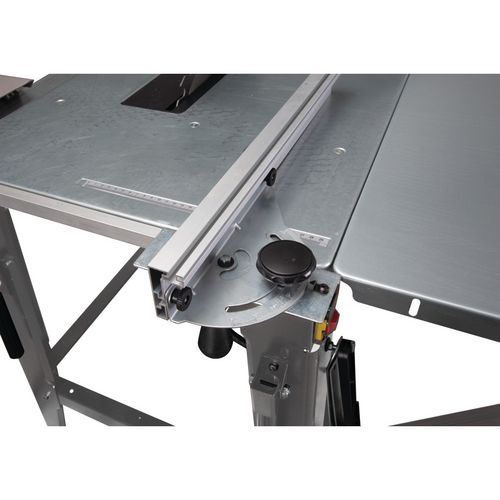

- Large aluminum rip fence with eccentric quick release, can be used as a miter fence as well
- Large, galvanized steel machine table
- Easy to move thanks to integrated chassis with two wheels and foldable transport handles</ li>
- Delivered unmounted
- Saw blade tilting up to 45 °
- Carriage with miter gauge or RIP fence

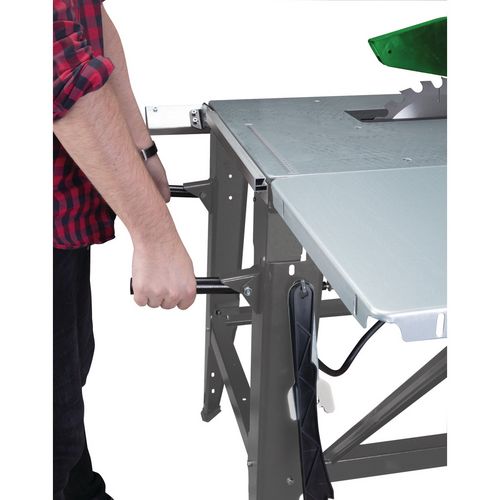

- Chassis with two wheels and handles
| Dimensions and weights | |
|---|---|
| Length approx. | 1600 mm |
| Width/depth approx. | 600 mm |
| Height approx. | 1050 mm |
| Weight approx. | 55 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 2,8 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 100 mm |
| Saw blade protection extraction port diameter | 35 mm |
| Sliding carriage and table | |
|---|---|
| Table length | 800 mm |
| Table width | 550 mm |
| Work height | 850 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Chassis

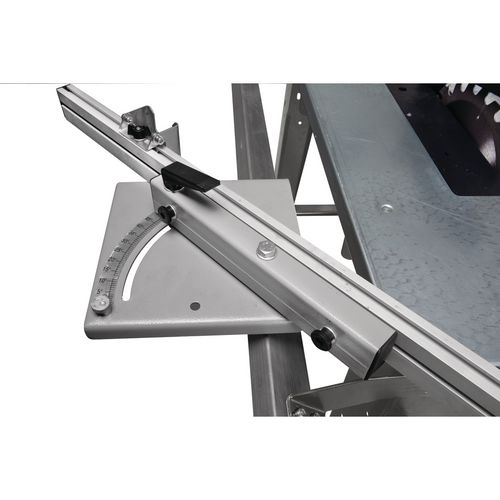

- Sliding table with miter gauge
- Table extension
- Combined parallel and miter fence
- Carbide Blade Ø 315 x 3,6 x Ø 30 mm Z24
- Saw blade guard with suction hose
- Push stick
