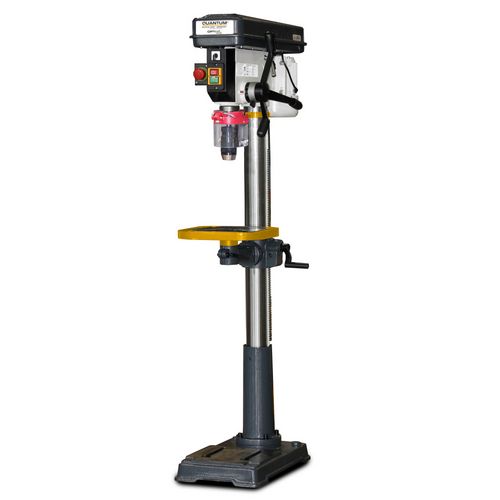

    Upright drill

    DQ 24 (230V)

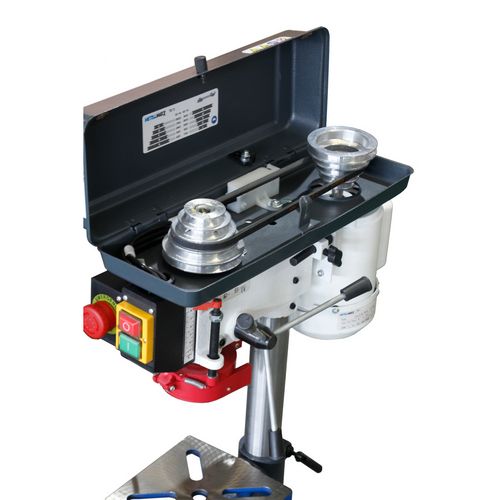

    with V-belt drive

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3182030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • High-quality quick-action drill chuck
    • Height-adjustable chuck protection cover
    • Work table adjustable from +45° to -45°
    • With high practical performance



    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • High-quality quick-action drill chuck
    • Work table adjustable from +45° to -45°



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Column diameter80 mm
    Length approx.1140 mm
    Width/depth approx.490 mm
    Height approx.275 mm
    Weight approx.60 kg
    Drilling performance
    Drilling performance steel (S235JR)20 mm
    Continuous drilling performance steel (S235JR)18 mm
    Drilling table
    T-groove typediagonal
    Electrical Data
    Drive motor output0.55 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Speed range
    Number of gears12 Steps
    Speed controlmanual
    Spindle
    Quill stroke85 mm
    Spindle chuckMT 3
    Reach176 mm
    Quill feedmanual
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Quick-action drill chuck
