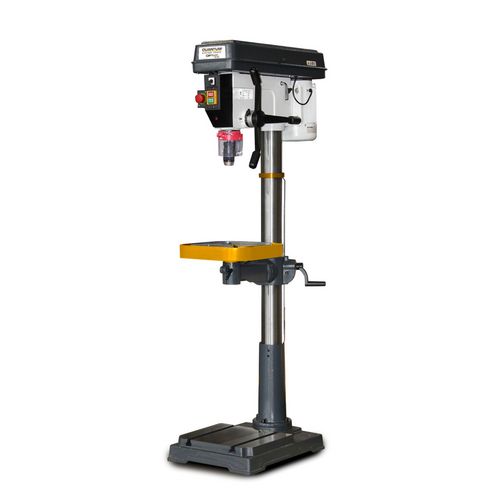

    Upright drill

    DQ 31 (230 V)

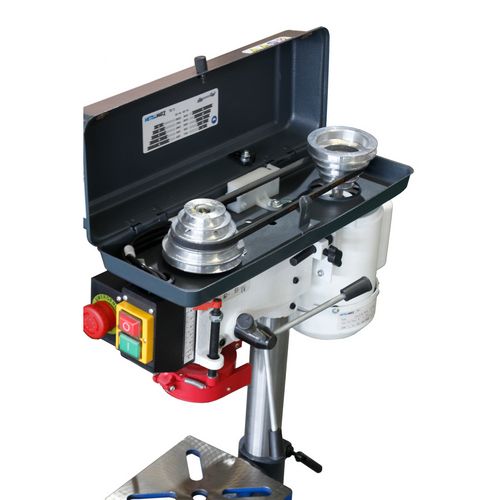

    with V-belt drive

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3182050

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • High-quality quick-action drill chuck
    • Height-adjustable chuck protection cover
    • Work table adjustable from +45° to -45°
    • With high practical performance



    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • High-quality quick-action drill chuck
    • Work table adjustable from +45° to -45°



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Column diameter92 mm
    Length approx.1415 mm
    Width/depth approx.650 mm
    Height approx.305 mm
    Weight approx.115 kg
    Drilling performance
    Drilling performance steel (S235JR)32 mm
    Continuous drilling performance steel (S235JR)28 mm
    Drilling table
    Workspace length360 mm
    Workspace width360 mm
    T-groove typediagonal
    T-groove size16 mm
    T-groove number2
    Rotation360 °
    Angle45 °
    Max. distance spindle - drilling table745 mm
    Electrical Data
    Drive motor output1.5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1205 mm
    Work area length575 mm
    Work area width 425 mm
    Speed range
    Speed range150 2450 min¯¹
    Number of gears12 Steps
    Speed controlManual
    Spindle
    Quill stroke120 mm
    Spindle chuckMT 4
    Reach225 mm
    Quill feedmanual
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Quick-action drill chuck
