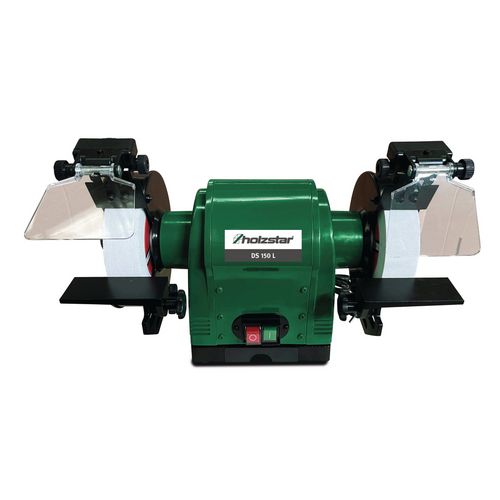

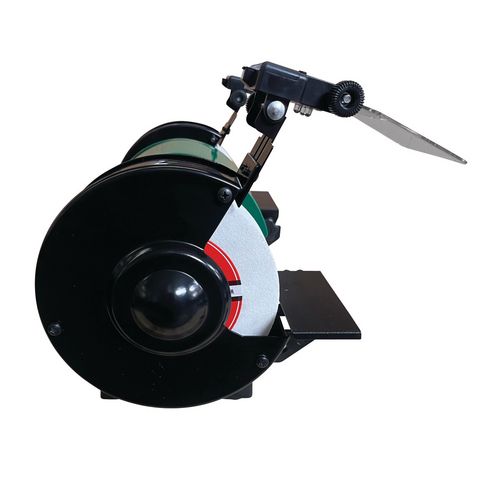

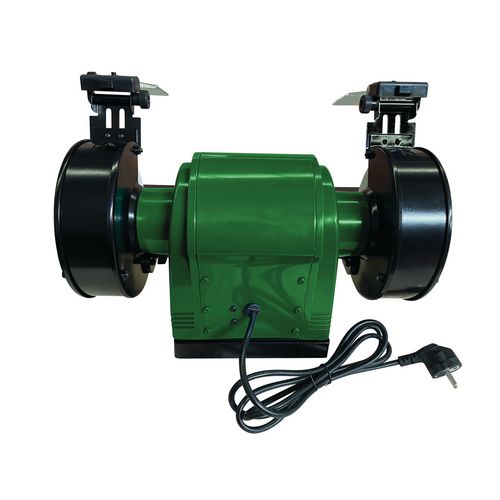

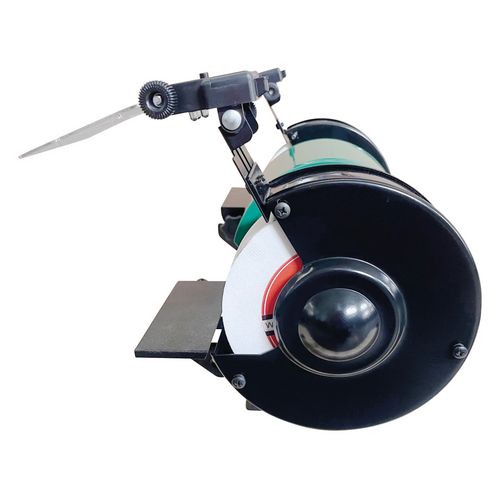

Double grinding machine
DS 150 L
for sharpening tools
155,00
EUR excl. Tax / pc(s).
184,45
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5903615
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Double grinding machine for grinding, sharpening and deburring
- Integrated LED light for illuminating the work area
- Maximum running smoothness
- Equipped with 150 mm corundum sanding discs for perfect sanding results
- Adjustable spark guard
- Tool-free adjustment of the workpiece support
- Double grinding machine for grinding, sharpening and deburring
- Maximum running smoothness
- Equipped with 150 mm corundum grinding wheels for perfect grinding results
| Dimensions and weights | |
|---|---|
| Length approx. | 446 mm |
| Width/depth approx. | 215 mm |
| Height approx. | 315 mm |
| Weight approx. | 14.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.2 kW |
| Absorbed power drive motor | 0.4 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Grinding wheel(s) | |
|---|---|
| External diameter | 150 mm |
| Width | 40 mm |
| Drill hole | 12.7 mm |
| Speed | 1490 min¯¹ |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Grinding wheel 150x40x12.7mm K60
- Grinding wheel 150x40x12.7mm K100
- Diamond dresser
- Four AAA batteries
