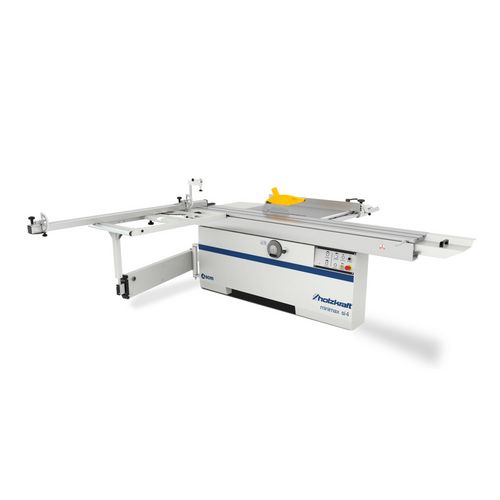

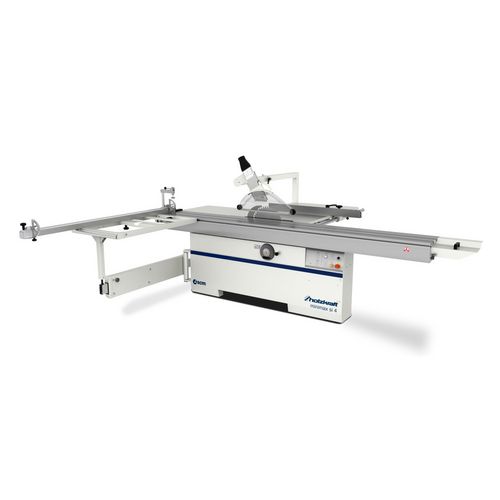

Sliding table saw
minimax si 4 - 315 / 32
With swiveling saw blade and anodised aluminum format sliding carriage
9.590,00
EUR excl. Tax / pc(s).
11.412,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5504832
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid worktable made of heavily ribbed gray cast iron - for maximum stability and durability
- Robust welded steel base frame - guarantees high torsional rigidity and vibration-free working

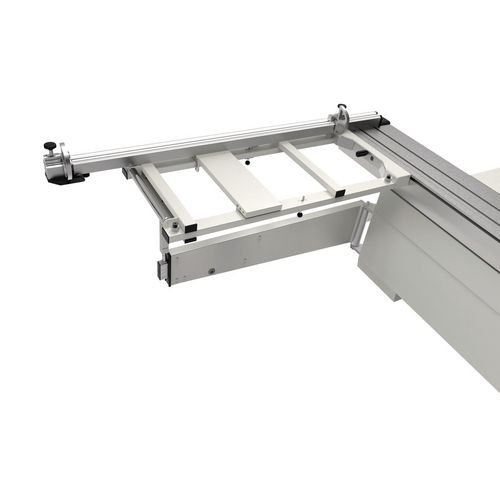

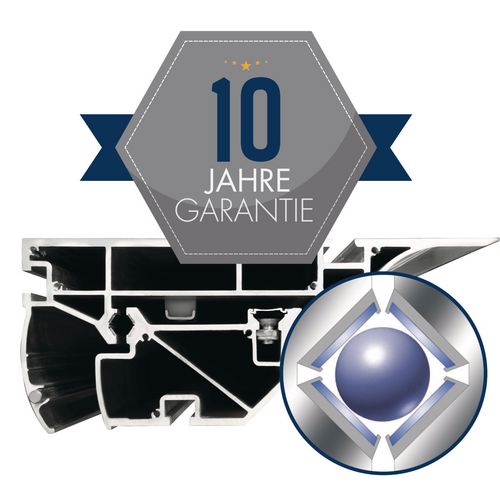

- Precise format sliding carriage made of anodized aluminium - guided smoothly by a high-quality ball contact system

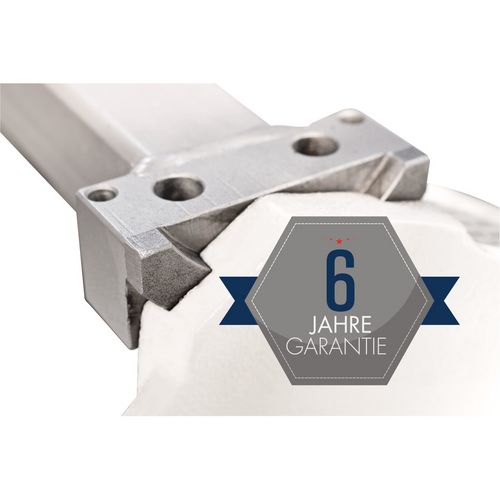

- Carbide guideways - for lasting precision and minimal maintenance

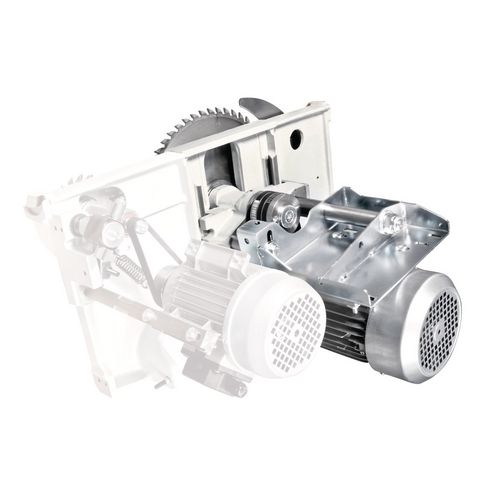

- Pivoting cast iron saw unit with double segment guide - exact zero-point pivoting for maximum cutting accuracy

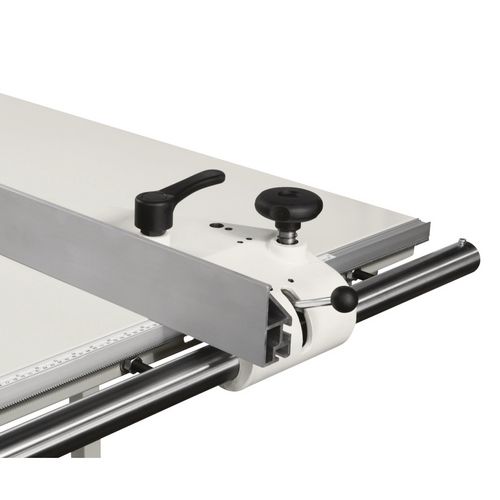

- Solid rip fence with round bar guide
- Equipped with movable eccentric clamping device
- Integrated angle cutting device on the sliding carriage - for fast and precise miter cuts
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 900 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Trimming length | 3200 mm |
| Saw blade angle | 90 46 ° |
| Max. cutting height 90° | 100 mm |
| Max. cutting height 45° | 71 mm |
| Explanation to: Max. cutting height | Independent of the scoring unit |
| (Main) saw blade diameter | 315 mm |
| Explanation to: (Main) saw blade diameter | Independent of the scoring unit |
| (Main) saw blade speed | 4000 min¯¹ |
| Dimensions and weights | |
|---|---|
| Weight approx. | 489 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 60 mm |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 360 mm |
| Sliding carriage height | 175 mm |
| Table length | 940 mm |
| Table width | 560 mm |
| Work height | 900 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Anodised aluminium sliding sizing carriage | ✔ |
| Handle for sliding carriage | ✔ |
| Material roll on claming frame | ✔ |
| Saw rip fence | with round rod guide |
| Stops | Two professional folding stops |
| Clamp sleigh | ✔ |
| Eccentric clamp | ✔ |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade cover | ✔ |
