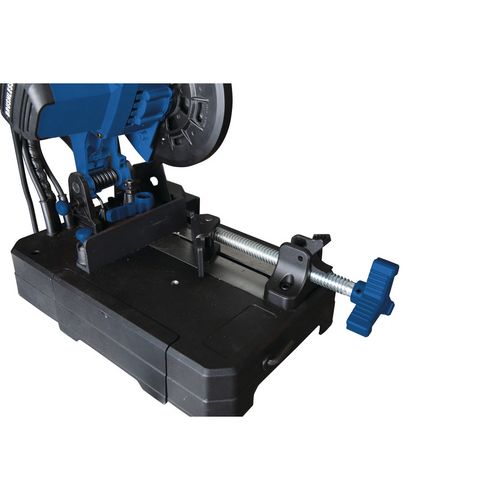

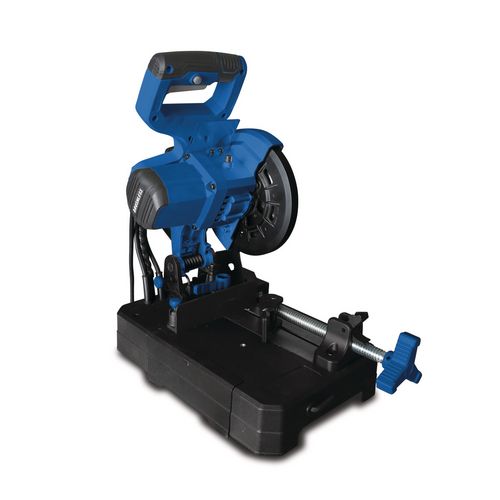

Metal dry cutter
MTS 185-3 B
with three speeds
295,00
EUR excl. Tax / pc(s).
351,05
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3840186
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For low-burr sawing of profiles and pipes made of steel, iron, copper, brass, aluminum, plastics and composite materials without coolant
- Application e.g. in metal construction, joineries, interior fitters etc.
- Angle for mitre cuts right 45°
- Easy to transport
- Motor with soft start for easier handling when switching on the saw
- Vice with quick adjustment
- Secure stand thanks to die-cast aluminum base
- Extremely stable and robust construction
- For low-burr sawing of profiles and pipes made of steel, iron, copper, brass, aluminum, plastics and composite materials without coolant
- Application e.g. in metal construction, joineries, interior fitters etc.
- Angle for miter cuts right 45°
- Motor with soft start
| Saw blade speed(s) | 1900/2300/2800 min¯¹ |
| Saw blade diameter | 185 mm |
| Feed | manual |
| VPE | 1 |
| Cutting capacity | |
|---|---|
| 0° (round) solid material | 55 mm |
| 0° (square) solid material | 45 x 45 mm |
| 0° (rectangle) solid material | 35 x 85 mm |
| 0° (round) pipe | 55 mm |
| 0° (square) pipe | 45 x 45 mm |
| 0° (rectangle) pipe | 35 x 85 mm |
| +45° (round) solid material | 45 mm |
| +45° (square) solid material | 40 x 40 mm |
| +45° (rectangle) solid material | 30 x 80 mm |
| +45° (round) pipe | 45 mm |
| +45° (square) pipe | 40 x 40 mm |
| +45° (rectangle) pipe | 30 x 80 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 480 mm |
| Width/depth approx. | 290 mm |
| Height approx. | 480 mm |
| Weight approx. | 12.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
