    Metallbandsäge

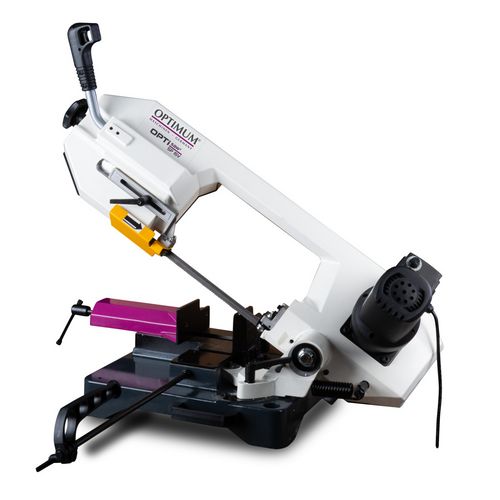

    OPTIsaw SP 15V

    Transportable mitre bandsaws with high cutting precision, particularly quiet

    1.125,00 EUR excl. Tax / pc(s).
    1.338,75 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3300080

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • With high-quality bi-metal band saw blade as standard
    • Adjustable material stop for standard work
    • Push button on the lever arm for the saw blade run switches the saw blade run on and off
    • Base plate with non-slip feet
    • Low-vibration and low-wear thanks to special gearbox with two hardened steel gears

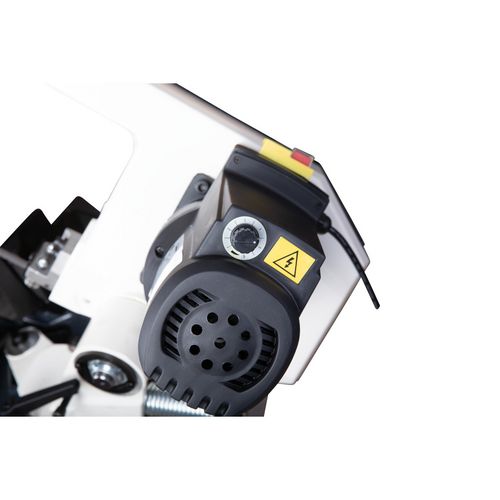

    • Vario drive motor with low speed and carbon brushes for up to 10 times longer service life
    • Saw arm can be tilted from 0° to +60° to enable angled saw cuts



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)150 mm
    0° quadratic (full material)140 mm
    0° rectangle horizontal (full material)140 x 140 mm
    -45° round (full material)100 mm
    -45° quadratic (full material)100 mm
    -45° rectangle horizontal (full material)100 x 100 mm
    -60° round (full material)70 mm
    -60° quadratic (full material)65 mm
    -60° rectangle horizontal (full material)65 x 70 mm
    +45° round (full material)100 mm
    +45° quadratic (full material)100 mm
    +45° rectangle horizontal (full material)100 x 100 mm
    +60° round (full material)70 mm
    +60° quadratic (full material)65 mm
    +60° rectangle horizontal (full material)65 x 65 mm
    Dimensions and weights
    Length approx.930 mm
    Width/depth approx.480 mm
    Height approx.450 mm
    Weight approx.30 kg
    Electrical Data
    Drive motor output1,5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)30 – 80 m/min
    Saw band length1735 mm
    Saw band width13 mm
    Saw band thickness0.9 mm
    Cutting angle from to0 60 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Material stop
    • Bi-metal band saw blade
