Brandimage to Product ADH 3050 (400V)

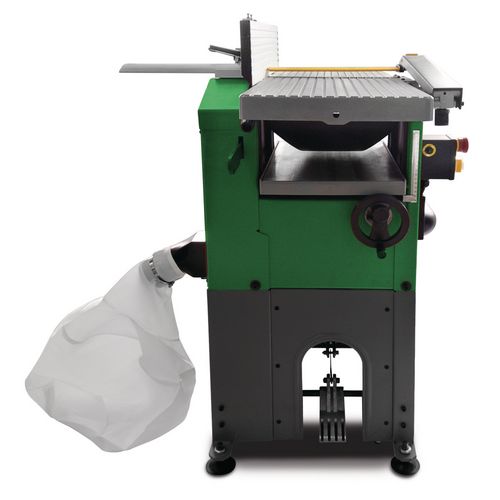

Surface and thickness planer

ADH 3050 (400V)

Compact model with integrated suction for do-it-yourselfers and craftsmen

1.285,00 EUR excl. Tax / pc(s).
1.529,15 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5904131

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • For angular joining (90°) and precise planing of solid wood boards and moldings
    • Automatic workpiece feed
    • Rubberized extraction roller protects the wood surface when planing thick
    • Suction integrated in the substructure
    • With chassis as standard
    • Simple and precise adjustment of the chip removal
    • Dressing table made of milled cast aluminum
    • Space-saving compact design



    • For angular joining (90°) and precise planing of solid wood boards and moldings
    • Automatic workpiece feed
    • Rubberized extraction roller protects the wood surface when planing thick
    • Suction integrated in the substructure
    • With chassis as standard



    Dimensions and weights
    Length approx.1140 mm
    Width/depth approx.800 mm
    Height approx.1075 mm
    Weight approx.93 kg
    Electrical Data
    Drive motor output1.25 kW
    Absorbed power drive motor1,8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Suction hood connection diameter100 mm
    Suction unit connection diameter75 mm
    Feed
    Speed8.5 m/min
    Jointing
    Max. cutting depth3 mm
    Planing stop pivoting range90 – 45 °
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades2 St
    Speed6700 min¯¹
    Max. planing width305 mm
    Thickness
    Working height min.6 mm
    Working height max.160 mm
    Working length min.250 mm
    Max. cutting depth2 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Suction connection hose, Ø 76 mm, 920 mm
    • Reduction 100/75 mm
    • Strip planer knife set
    • Chip bag



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
