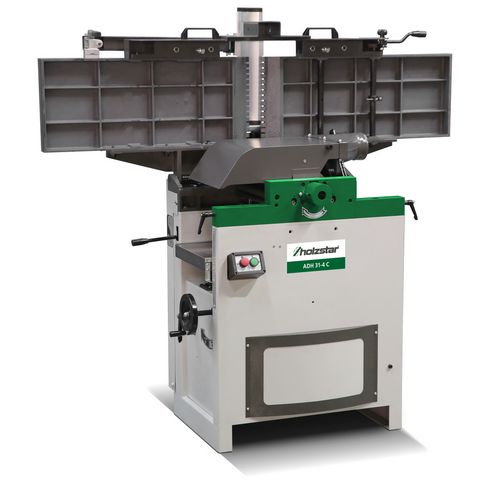

Surface and thickness planer

ADH 31-4 C

2.999,00 EUR excl. Tax / pc(s).
3.568,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5904013

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • For angular joining (90°) and precise planing of solid wood boards, planks and strips
    • Automatic workpiece feed
    • < li>Integrated, foldable swarf extraction hood
    • Aluminum dressing stop that can be tilted comfortably by + 45°
    • Simple and precise adjustment of the chip removal
    • Large dimensioned dressing table made of ribbed aluminum die-cast
    • Large thickness table made of gray cast iron with a polished surface



    Dimensions and weights
    Length approx.1605 mm
    Width/depth approx.630 mm
    Height approx.860 mm
    Weight approx.292 kg
    Electrical Data
    Drive motor output2,2 kW
    Absorbed power drive motor3,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter thickness100 mm
    Extraction port diameter joints100 mm
    Feed
    Speed6.5 m/min
    Jointing
    Max. cutting depth3 mm
    Planing stop pivoting range90 – 45 °
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades4 St
    Speed4000 min¯¹
    Max. planing width310 mm
    Thickness
    Working height min.5 mm
    Working height max.220 mm
    Max. cutting depth5 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1



    Strip planer knife set
