| Dimensions and weights | |
|---|---|
| Length approx. | 640 mm |
| Width/depth approx. | 670 mm |
| Height approx. | 350 mm |
| Weight approx. | 49.5 kg |

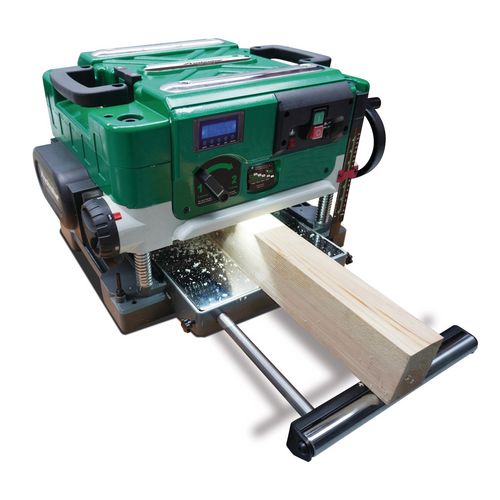

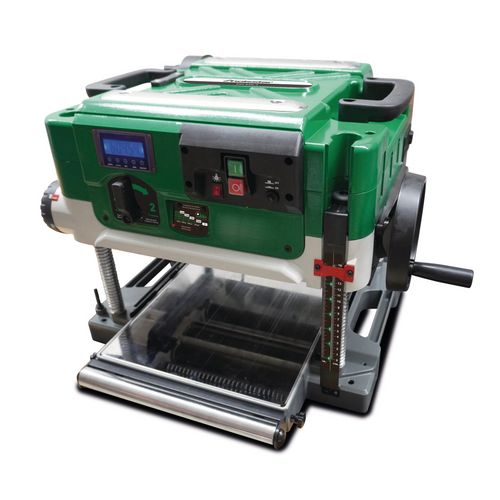

Thicknessing plane
DH 330-2 Spiral
Solid thickness planer with three strip planer knives
1.299,00
EUR excl. Tax / pc(s).
1.545,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5904336
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Built-in rubber infeed and outfeed roller for gentle processing

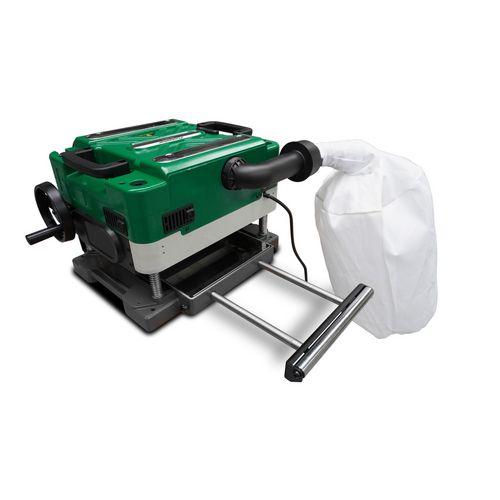

- Clean working thanks to integrated extraction system

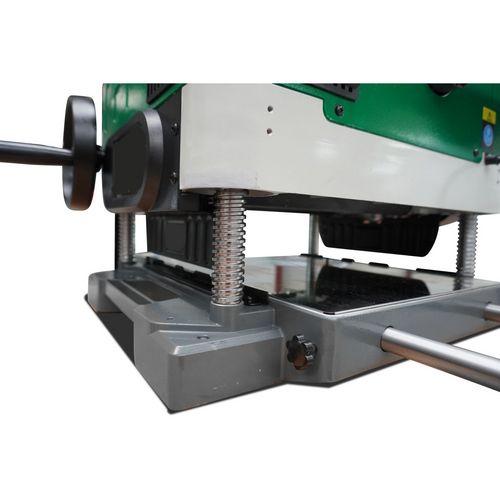

- Maximum precision thanks to solid quadruple spindle guide of the planing unit

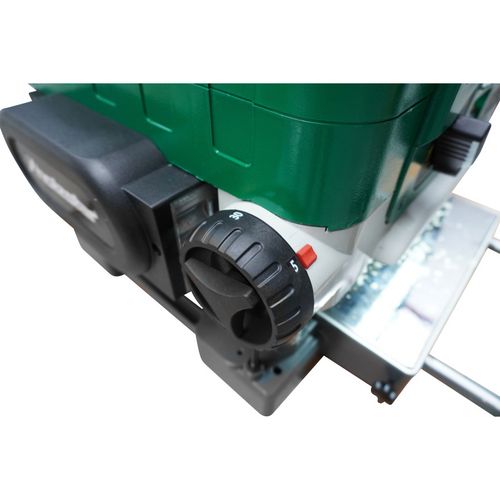

- Quick adjustment of the planing height via locking steps

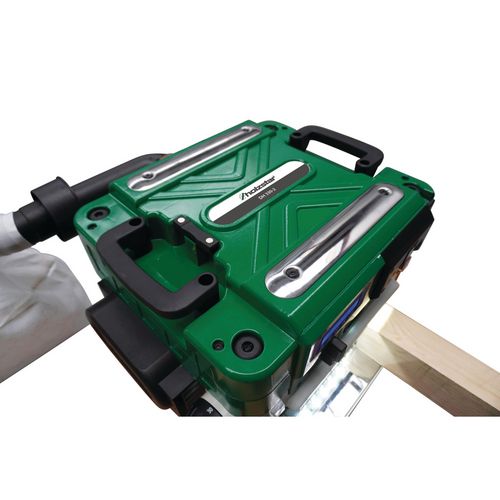

- Two attached carrying handles for transportation
- Equipped with lighting on the front and rear
- Two shelves on the top of the machine for workpiece storage
- Pull-out workpiece supports attached on both sides
- Built-in rubber infeed and outfeed roller for gentle processing
- Clean working thanks to integrated extraction system
- Solid quadruple spindle guide of the planing unit
- Quick adjustment of the planing height via locking steps
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 1.8 kW |
| Output power | 1 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter thickness | 60 mm |
| Feed | |
|---|---|
| Speed | 4 / 7 m/min |
| Planing knife shaft | |
|---|---|

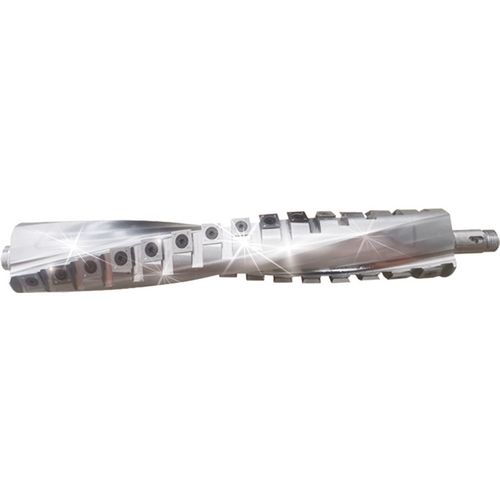

| Type | Spiral planer cutterblock |
| Number of planing blades | 30 |
| Speed | 9400 min¯¹ |
| Max. planing width | 330 mm |
| Thickness | |
|---|---|
| Working height min. | 3.2 mm |
| Working height max. | 152 mm |
| Max. cutting depth | 3.2 mm |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
