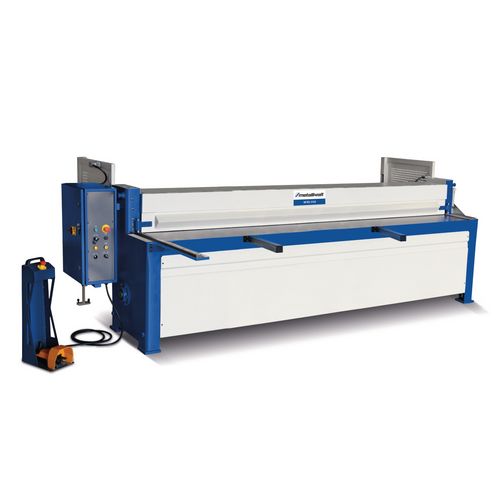

MTBS 3102

Heavy, robust welded construction with manual rear stop

27.690,00 EUR excl. Tax / pc(s).
32.951,10 EUR incl. 19% Tax / pc(s).

Promotional price *

23.399,00 EUR excl. Tax / pc(s).
27.844,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.

Art.-No. 3815430

Are you interested in this product?

Put a request

Find Trader

Productdetails

Sliding upper beam with adjustable flat guides
Manual backgauge with 550 mm travel range

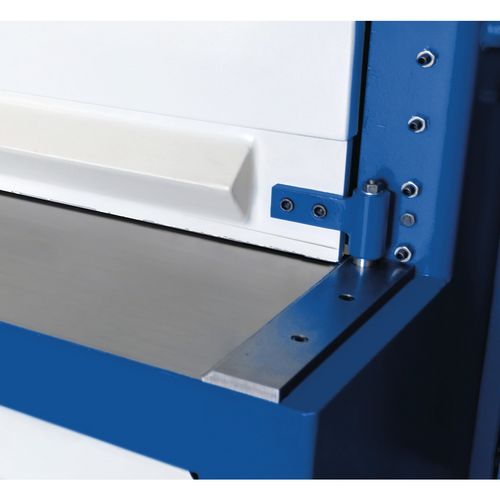

Solid 90° side fence with 1000 mm length, T-slot, tilting cam and scale
LED cutting line lighting and slotted holes in the top cover for an optimum view of the cutting edge for cutting on tear
High-quality, rotatable knives suitable for cutting stainless steel Heavy-duty hold-down beam with material-friendly polyurethane inserts suitable for cutting stainless steel
Heavy-duty hold-down bar with material-friendly polyurethane inserts

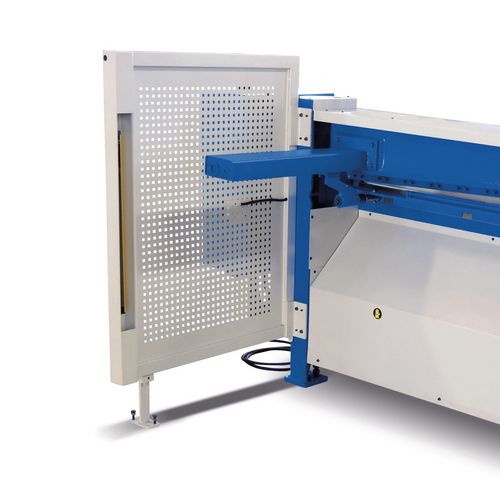

Rear area protected by light barrier
Operation via mobile foot pedal console with emergency stop

You will receive the 3-year Stürmer warranty for this item when you register online.

Working width	3060 mm
Cutting performance material tensile strength 400 N/mm²	2 mm
Cutting performance material tensile strength 700 N/mm²	1,2 mm
Cuts per minute	34
Number of sheet support arms	2
Rear stop adjustment range up to	550 mm
Cutting angle	1,6 °
Air consumption per cycle	4 l
VPE	1

Dimensions and weights
Length approx.	3650 mm
Width/depth approx.	2300 mm
Height approx.	1400 mm
Weight approx.	1820 kg

Electrical Data
Absorbed power drive motor	3 kW
Supply voltage	400 V
Mains frequency	50 Hz


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Drive	Motor
Cutting kerf adjustment	Manual
Cutting line lighting and visual slots	✔
Lateral stop	90°, 1000 mm
Rear stop	manual, operation at the stop directly
