Table router

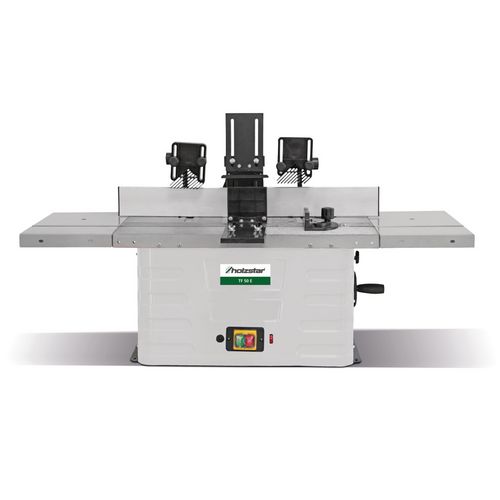

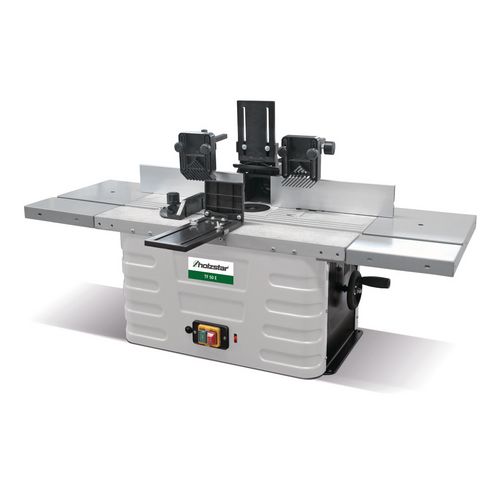

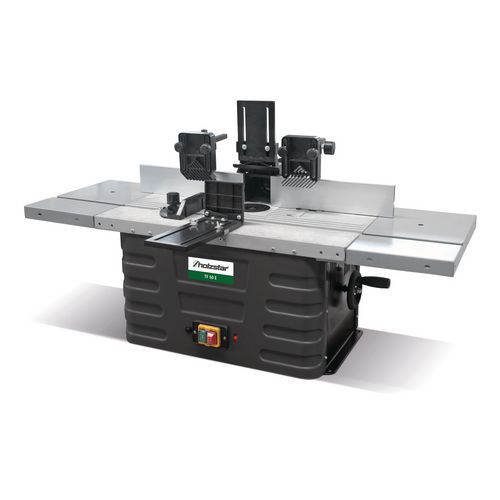

TF 50 E

Ideal for use on workbenches

369,00 EUR excl. Tax / pc(s).
439,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5901905

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Compact and handy design for comfortable use
    • Variable speed range from 11500 to 24000 min¯¹

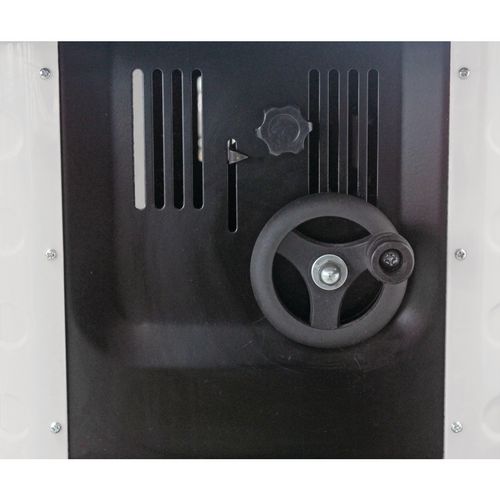

    • Spindle height adjustable from 0 to 40 mm

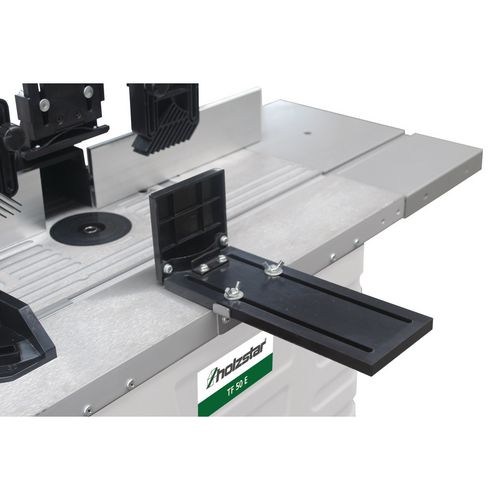

    • Large table support thanks to standard extensions on both sides
    • Robust work table made of cast iron

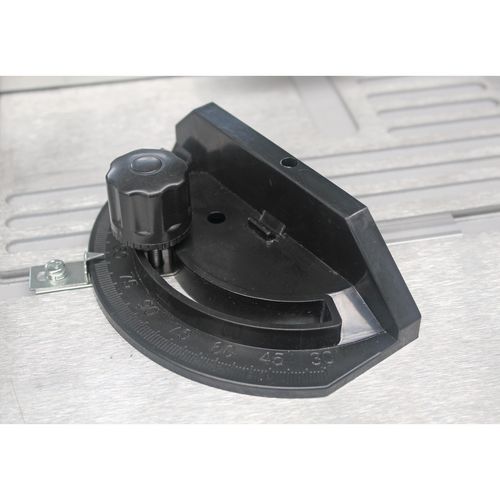

    • Mitre stop and various collets included



    Dimensions and weights
    Max. length610 mm
    Max. width/depth360 mm
    Max. height311 mm
    Length approx.1030 mm
    Width/depth approx.360 mm
    Height approx.311 mm
    Weight approx.21 kg
    Electrical Data
    Drive motor output1.5 kW
    Supply voltage230 V
    Mains frequency50 Hz

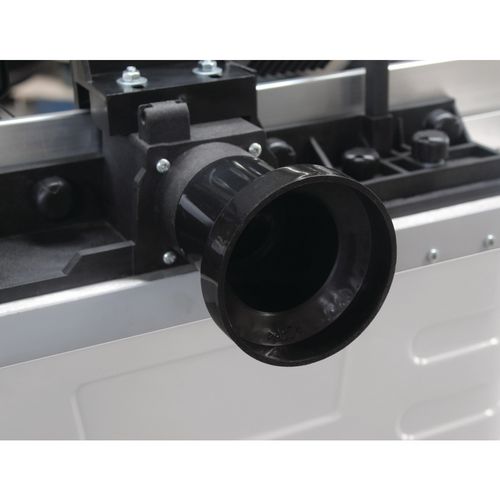

    Extraction port
    Extraction port diameter100 mm
    Milling cutter diameter max.
    Max. tool diamter 50 mm
    Milling spindle
    Stroke40 mm
    Speed(s)11500 – 24000 rpm
    Work table
    Length610 mm
    Width360 mm
    Table height 311 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Table extensions on both sides
    • Mitre fence
    • Aluminum routing fence
    • Collets for 6, 8 i 12 mm
    • Assembly tool (hexagon socket wrench 4mm and 5mm, wrench SW19 and SW24)



    Height adjustment of the spindlemanually

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
