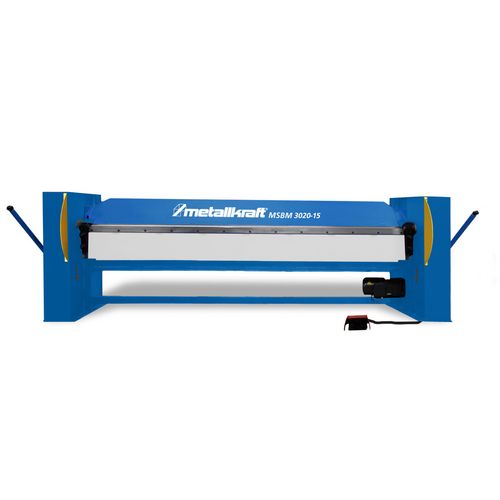

    Semi-motoric swivel bending machine

    msbm

    In heavy design with foot control

    From 15.790,00 EUR excl. Tax / pc(s).
    From 18.790,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    From 15.299,00 EUR excl. Tax / pc(s).
    From 18.205,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Variations

    GeneralBending capacityDimensions and weights Price Promotional price *
    TitleArt.-No.Max. working width (mm)VPE Segmentation 400N/mm² (mm)Stainless steel (mm)Aluminium (mm)Length approx. (mm)Weight approx. (kg)EUR excl. TaxEUR incl. 19% TaxEUR excl. TaxEUR incl. 19% Tax
    MSBM 1520-303779030152013.023,62475106015.790,0018.790,1015.299,0018.205,81
    MSBM 2020-253779031202012.51.7532975145016.890,0020.099,1016.199,0019.276,81
    MSBM 2520-203779032252012.01.252.43475178018.390,0021.884,10--
    MSBM 3020-153779033302011.51.01.83975220019.050,0022.669,50--
    MSBM 1520-30 S37790401520125-30-35-40-45-50-75-100-150-220-250-5003.02.03.62475106016.990,0020.218,1016.299,0019.395,81
    MSBM 2020-25 S37790412020125-30-35-40-45-50-75-100-150-200-200-270-400-4002.51.7532975145017.650,0021.003,5016.899,0020.109,81
    MSBM 2520-20 S37790422520125-30-35-40-45-50-75-100-150-200-200-270-400-400-5002.01.252.43475178019.250,0022.907,50--
    MSBM 3020-15 S37790433020125-30-35-40-45-50-75-100-150-200-200-270-400-400-500-5001.51.01.83975220020.290,0024.145,10--
    MSBM 1520-30 SH37790501520125-30-35-40-45-50-75-100-150-220-250-5003.02.03.62475106017.390,0020.694,10--
    MSBM 2020-25 SH37790512020125-30-35-40-45-50-75-100-150-200-200-270-400-4002.51.7532975145017.890,0021.289,10--
    MSBM 2520-20 SH37790522520125-30-35-40-45-50-75-100-150-200-200-270-400-400-5002.01.252.43475178019.590,0023.312,10--
    MSBM 3020-15 SH37790533020125-30-35-40-45-50-75-100-150-200-200-270-400-400-500-5001.51.01.83975220021.550,0025.644,50--
    Select Attributes
    General
    Bending capacity
    Dimensions and weights
    Price
    Promotional price

    Productdetails

    • Semi-motor version - manual operation of the upper cheek, bending process motorised
    • Designed for professional use
    • With foot operation
    • heavy, compact weldment
    • With continuous sharp bending rail

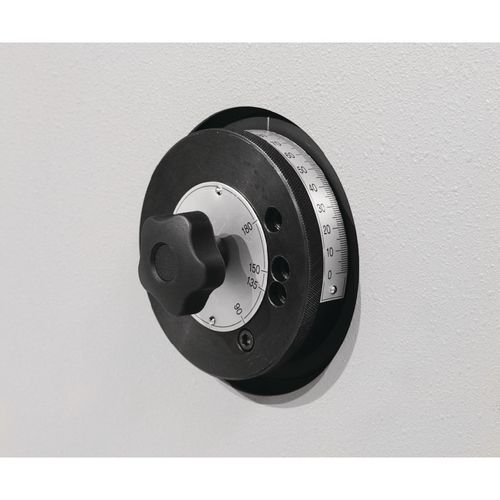

    • Standard with manual adjustment of the bending angle by means of nonius ring
    • Particularly low-maintenance
    • S-models with segmented top tools
    • SH models with high, segmented goat foot tools
    • Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
    • Further swivel bending machines available on request


    Quality Made in Europe



    Max. passageway between top + bottom beam140 mm
    Bending capacity
    Explanation stainless steelFor bending stainless steel the optional hardening of the tools is required
    Dimensions and weights
    Width/depth approx.560 mm
    Height approx.1290 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
