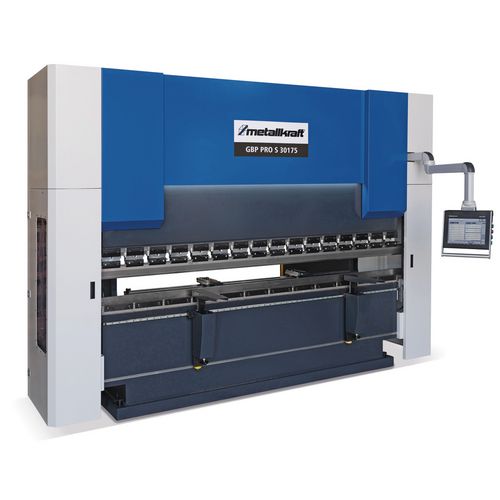

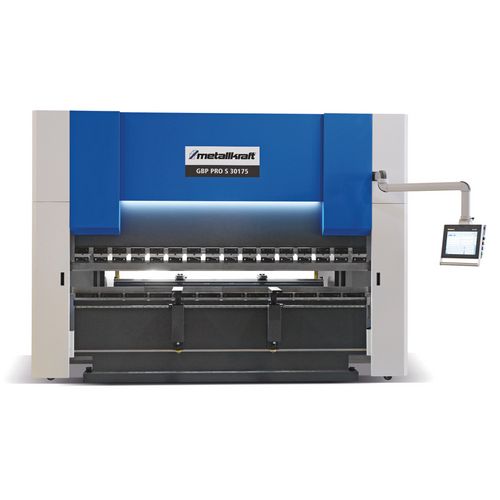

Press brake

GBP PRO S

Four powered axles, touch screen control DELEM DA 58 T, motorized crowning and manual upper tool-quick clamp

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General												Dimensions and weights				Price
Title	Art.-No.	Press force (t)	Bending length (mm)	Stand passageway (mm)	Stroke (mm)	Rapid mode (mm/s)	Bending speed (mm/s)	Retraction (mm/s)	Table height (mm)	Table width (mm)	X axis stroke (mm)	Oil tank capacity (l)	VPE	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	EUR excl. Tax	EUR incl. 19% Tax
GBP PRO S 1360	4257130	60	1250	1050	200	120	1 – 10	140	930	60	5 - 650	110	1	2500	1600	2300	3250	Price upon request	-
GBP PRO S 2065	4257200	65	2070	1600	200	140	1 – 10	140	930	60	5 - 650	110	1	3200	1600	2300	4100	Price upon request	-
GBP PRO S 20100	4257201	100	2070	1600	250	160	1 – 10	100	930	60	5 - 650	230	1	3250	1800	2550	6500	Price upon request	-
GBP PRO S 25100	4257250	100	2550	2100	250	160	1 – 10	100	930	60	5 - 650	230	1	3550	1800	2550	7300	Price upon request	-
GBP PRO S 25135	4257251	135	2550	2100	250	160	1 – 10	100	930	60	5 - 650	230	1	3600	1900	2550	7900	Price upon request	-
GBP PRO S 25175	4257252	175	2550	2100	250	160	1 – 10	100	930	60	6 - 650	230	1	3650	1900	2850	8300	Price upon request	-
GBP PRO S 30100	4257300	100	3150	2600	250	160	1 – 10	100	930	60	5 - 650	230	1	4220	1800	2550	8400	Price upon request	-
GBP PRO S 30135	4257301	135	3150	2600	250	160	1 – 10	100	930	60	5 - 650	230	1	4220	1800	2550	8800	Price upon request	-
GBP PRO S 30175	4257302	175	3150	2600	250	160	1 – 10	100	930	70 / 60	5 - 650	230	1	4250	1950	2850	11000	Price upon request	-
GBP PRO S 30220	4257303	220	3150	2600	275	140	1 – 10	100	930	100 / 90	5 - 650	300	1	4250	2000	2950	12500	Price upon request	-
GBP PRO S 30320	4257304	320	3150	2600	350	120	1 – 9	90	930	120 / 90	5 - 650	360	1	4400	2200	3350	17500	Price upon request	-
GBP PRO S 37175	4257372	175	3700	3150	250	160	1 – 10	100	930	70 / 60	5 - 650	230	1	4950	1950	2850	12500	Price upon request	-
GBP PRO S 37220	4257373	220	3700	3150	275	140	1 – 10	100	930	100 / 90	5 - 650	300	1	5000	2000	2950	13500	Price upon request	-
GBP PRO S 40175	4257402	175	4100	3600	250	160	1 – 10	100	930	70 / 60	5 - 650	230	1	5250	1950	2850	13500	Price upon request	-
GBP PRO S 40220	4257403	220	4100	3600	275	140	1 – 10	100	930	100 / 90	5 - 650	300	1	5250	2150	2950	14800	Price upon request	-
GBP PRO S 40320	4257404	320	4100	3600	350	120	1 – 9	90	930	120 / 90	5 - 650	360	1	5400	2340	3350	20000	Price upon request	-
GBP PRO S 40400	4257405	400	4100	3600	350	120	1 – 9	80	960	150 / 90	5 - 650	500	1	5750	2470	3500	26800	Price upon request	-
GBP PRO S 60220	4257603	220	6100	5600	275	120	1 – 10	100	1020	100 / 90	5 - 650	300	1	7500	2000	3100	24500	Price upon request	-
GBP PRO S 60320	4257604	320	6100	5600	350	120	1 – 9	90	960	120 / 90	5 - 650	360	1	7500	2400	3350	30000	Price upon request	-
GBP PRO S 60400	4257605	400	6100	5600	350	120	1 – 9	80	960	150 / 90	5 - 650	500	1	7500	2500	3500	35000	Price upon request	-

Select Attributes

General

Press force
Bending length
Stand passageway
Stroke
Rapid mode
Bending speed
Retraction
Table height
Table width
X axis stroke
Oil tank capacity
VPE

Dimensions and weights

Length approx.
Width/depth approx.
Height approx.
Weight approx.

Price

excl. Tax
incl. 19% Tax

Productdetails

Standard version:

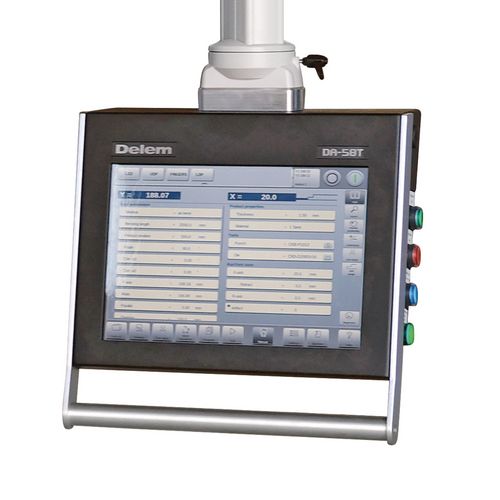

Touch screen control DELEM DA 58T with 2D color interface and bend sequence calculation.
CNC-controlled, motor-driven X-axis guided on linear rails - driven by recirculating ball screws
CNC-controlled, motorized R-axis guided on linear rails - driven by recirculating ball screws
Backspace protection by means of light barrier
Safety devices FIESSLER Akas II and FMSC
CNC-controlled, motorized table crowning
Manual lateral adjustment of the stop fingers (Z-axis) on linear rail

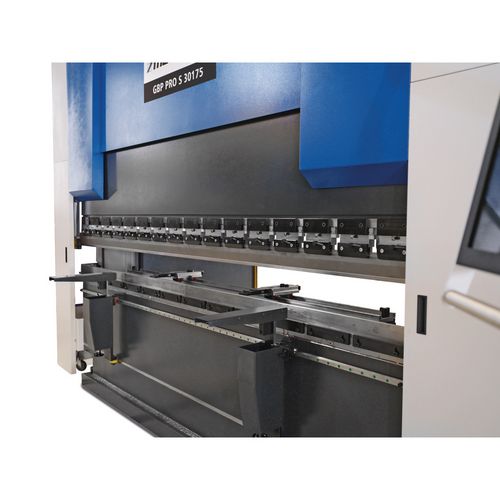

Two front support arms adjustable on linear rail

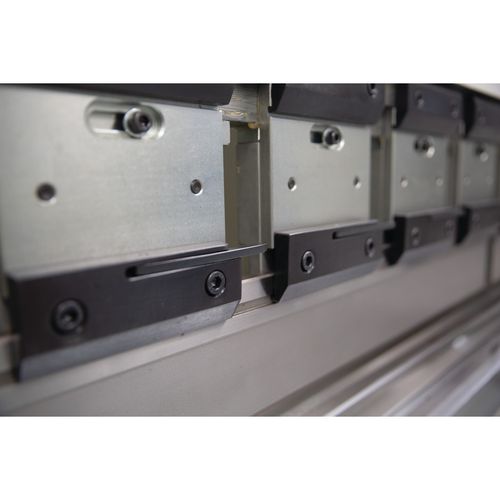

Upper tool quick clamping (lateral removal)
Standard upper tool set 135 mm - 85°
Standard die set Multi-V 85° - 16/22/35/50 mm
Side protection doors monitored by limit switches

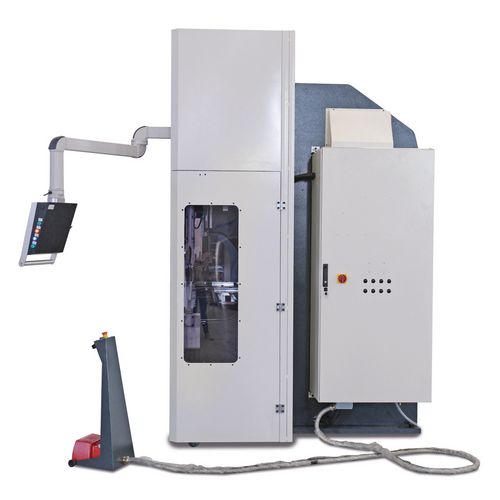

Control on swivelling arm on the right side
Electrical components from Schneider and Mitsubishi
Hydraulic components from HAWE and Ikron

Equipment options:

Controls (Cybelec CybTouch 19-2D with offline software or Delem DA 66T, DELEM DA-66T-2D/3D with offline software DA-60TL).
Extension of the X-axis to travel 1000mm
CNC-controlled, motorized Z1/Z2-axes
CNC-controlled, motorized Delta-X-axis
CNC-controlled 6-axis stop (tower version)
Special throat sizes
Hydraulic upper tool and die clamps
Additional fence fingers and front support arms
Second foot pedal for two-man operation
Manual or automatic central lubrication
Air conditioning for the control cabinet
Oil cooler
Oil warmer
Special tools
Special sizes on request

X axis speed

250 mm

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
