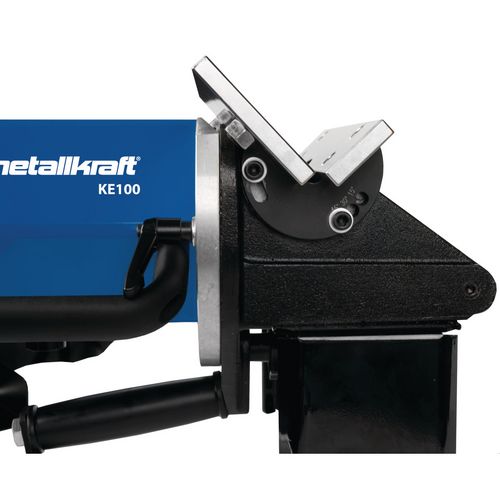

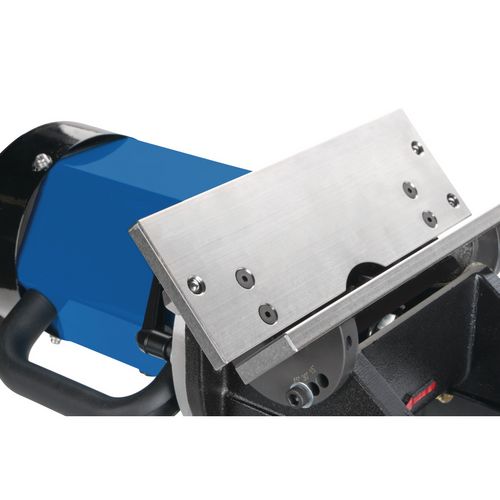

Edge deburrer

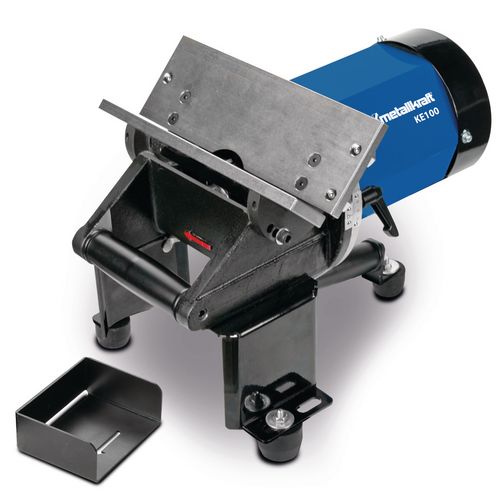

KE 100

For deburring of inner and outer edges, mobile and stationary use

1.199,00 EUR excl. Tax / pc(s).
1.426,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3992000

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

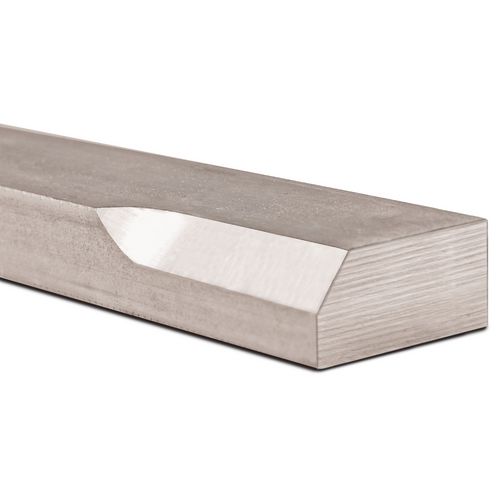

    • For the creation of clean visible edges and for weld preparation

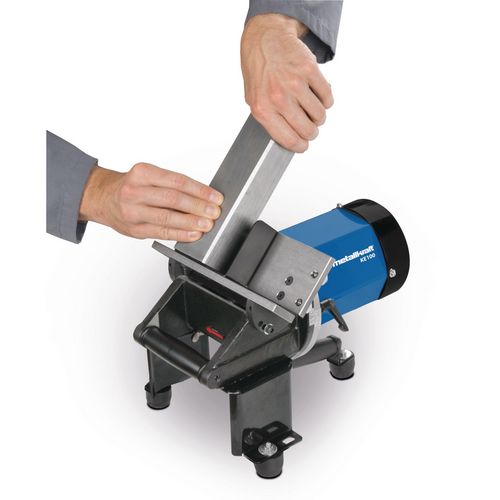

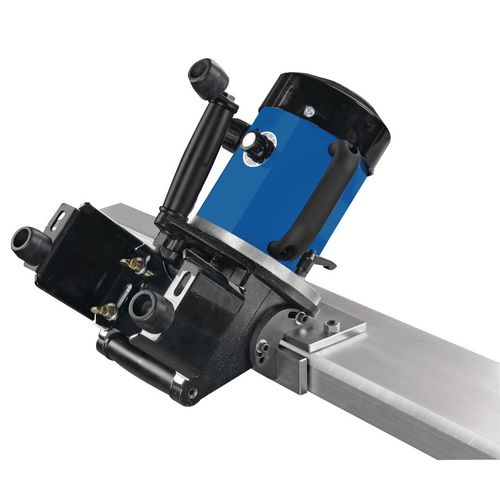

    • Stationary or mobile device to use

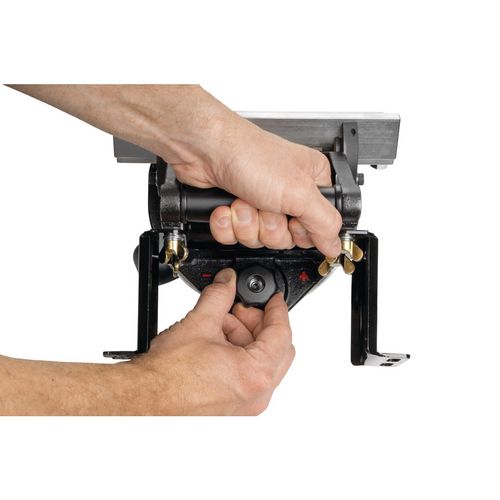

    • Easy and quick change from stationary to mobile use with thumbscrews and removable base

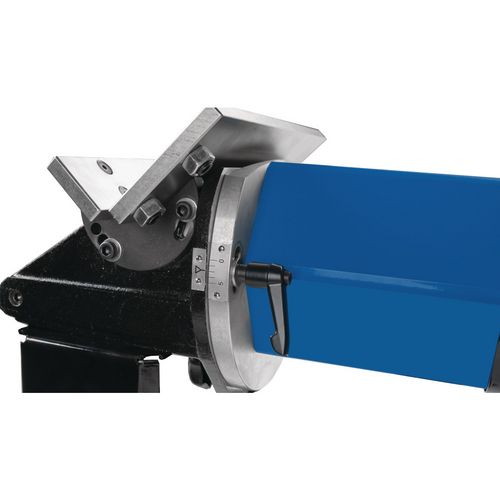

    • Tool-free adjustment of the chamfer depth

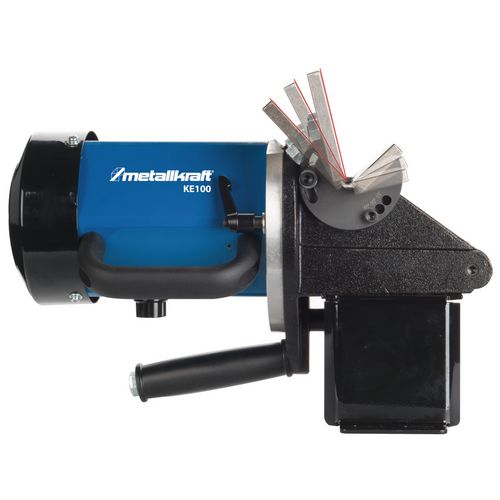

    • Standard angle settings at 15°, 30° and 45°
    • Feed is done manually
    • With patented technology
    • Handy and powerful device
    • For processing steel, non-ferrous metals and plastics

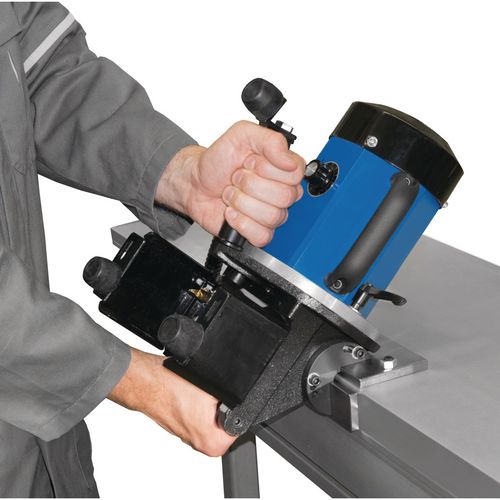

    • Functional arrangement of the handles enable safe guiding of the device in mobile operation

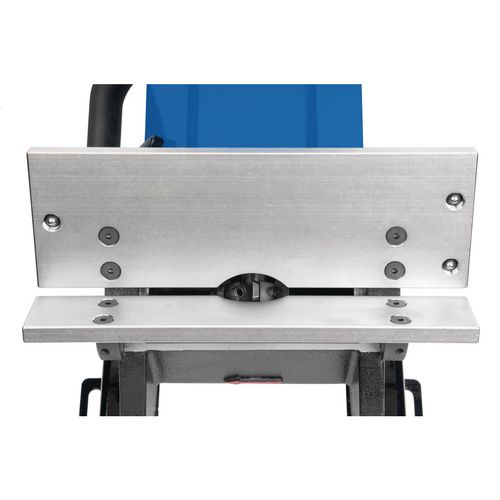

    • Guide plate equipped with adjustable ball heads for easy movement of the workpiece
    • Automatic safety shutdown in case of overheating



    Chamfer angle15/30/45 °
    Chamfer width at 15° about 5 mm
    Chamfer width at 30° about 6 mm
    Chamfer width at 45° about 7 mm

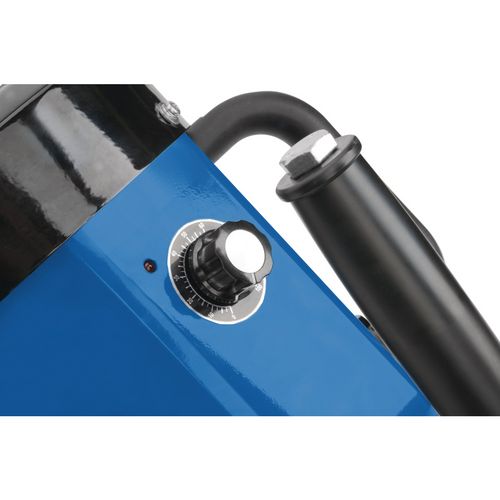

    Speed(s)2000 – 5000 min¯¹
    VPE1
    Dimensions and weights
    Length approx.360 mm
    Width/depth approx.230 mm
    Height approx.280 mm
    Weight approx.10.5 kg
    Electrical Data
    Supply voltage230 V
    Unit: pc(s).
    Packaging unit: 1

    • Edge deburring device KE 100
    • Milling head with inserts
    • 3 rubber feet
    • Workpiece carriage
