| Max. travel X-axis | 12000 mm |
| Max. travel Y-axis | 3500 mm |
| Max. travel Z-axis | 200 mm |
| Max. travel speed | 60 m/min |
| Position accuracy | ±0.05 mm/m |
| Max. machine table load | 23000 kg |
| Acceleration | 0.5 G |
| VPE | 1 |

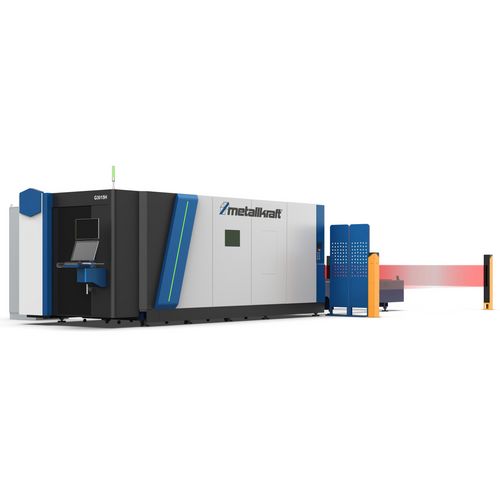

Plate laser cutting machine
G12035FA 40 kW
459.900,00
EUR excl. Tax / pc(s).
547.281,00
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650215
Are you interested in this product?
Put a request
Find Trader
Productdetails
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 50 mm |
| Material thickness max. stainless steel | 50 mm |
| Material thickness max. aluminum | 30 mm |
| Material thickness max. brass | 16 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 15450 mm |
| Width/depth approx. | 5700 mm |
| Height approx. | 2200 mm |
| Weight approx. | 6800 kg |
| Electrical Data | |
|---|---|
| Laser power | 40 kW |
| Input power | 156 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
