| Max. travel X-axis | 3100 mm |
| Max. travel Y-axis | 1550 mm |
| Max. travel Z-axis | 350 mm |
| Max. travel speed | 200 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 885 kg |
| Acceleration | 4 G |
| VPE | 1 |

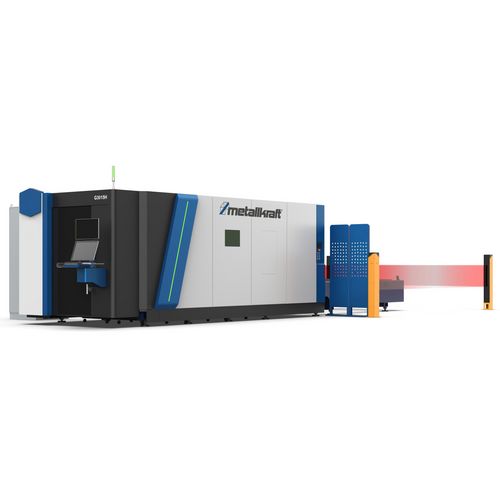

Laser cutting system
GH 3015 6 kW Gen 2
with automatic shuttle table
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650105.2
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Maximum dynamics thanks to up to 4G acceleration at 200 m/min rapid traverse
- Highest machine rigidity due to multi-reinforced machine bed
- High-quality components from leading manufacturers

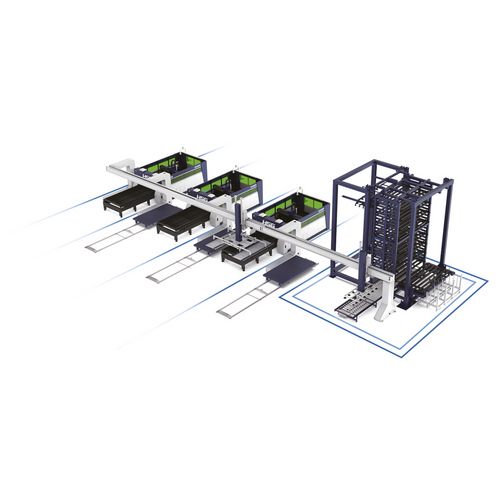

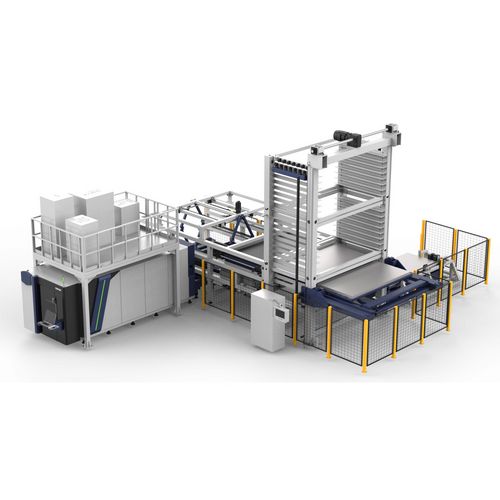

- Can be optionally equipped with automation options
- Shuttle table laser cutting system - simultaneous cutting and set-up of the machine - maximum efficiency
- Fully protected work area ensures maximum safety - A viewing window and video surveillance allow visual monitoring of the cutting process.
- Stable, welded machine bed in combination with highly dynamic drive systems from Innovance® and Alpha Wittenstein® ensure maximum process accuracy.

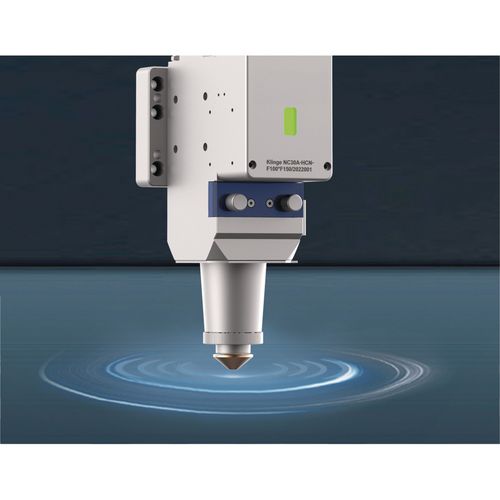

- High-quality laser sources from the renowned manufacturer Raycus® ensure maximum beam quality and process reliability.

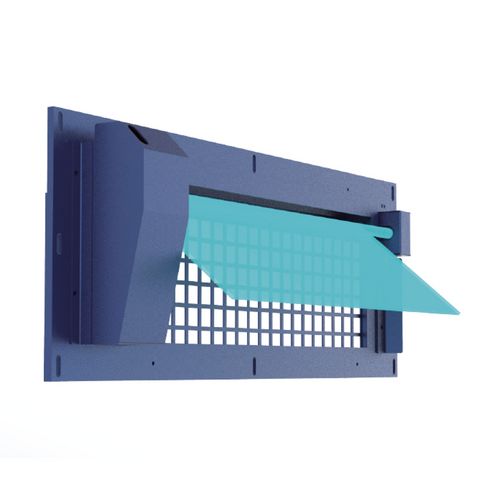

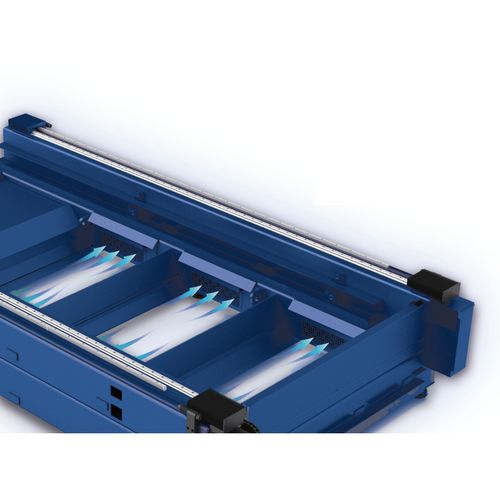

- Intelligent extraction system: Position-controlled extraction flaps ensure maximum extraction performance

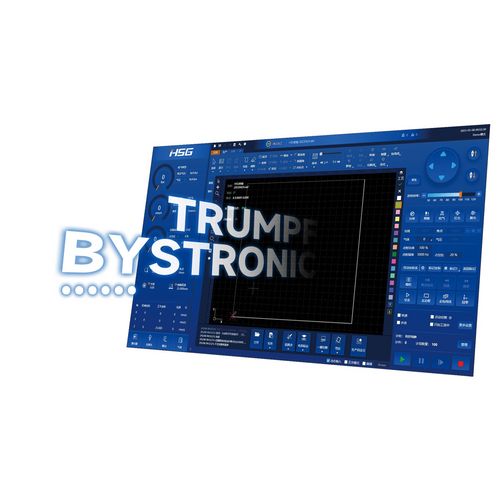

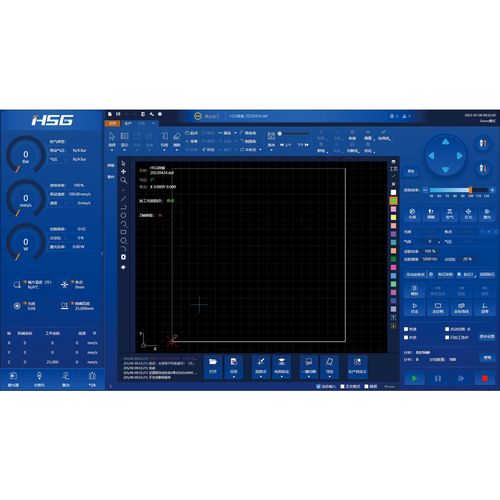

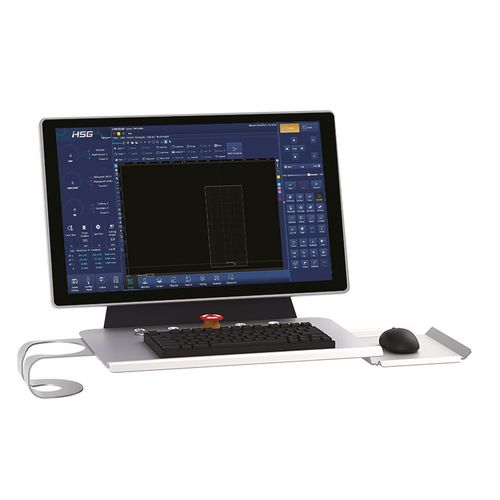

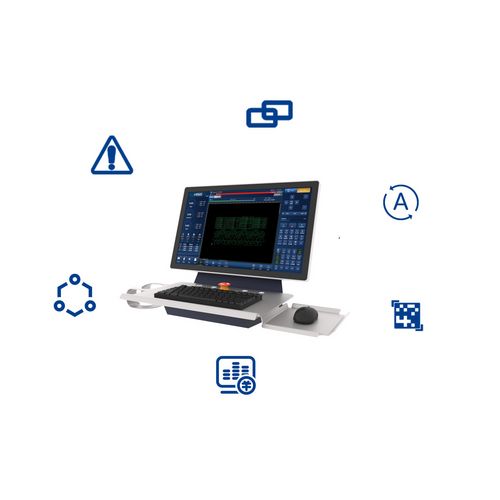

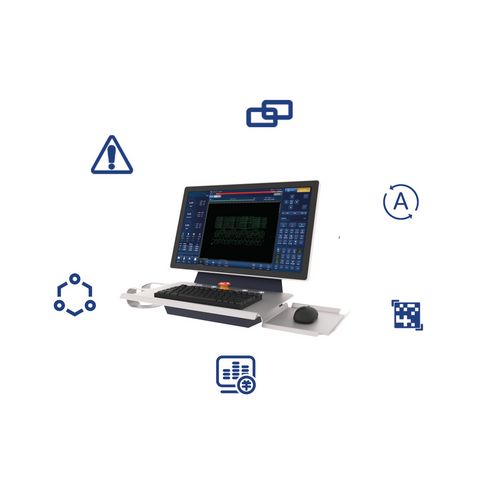

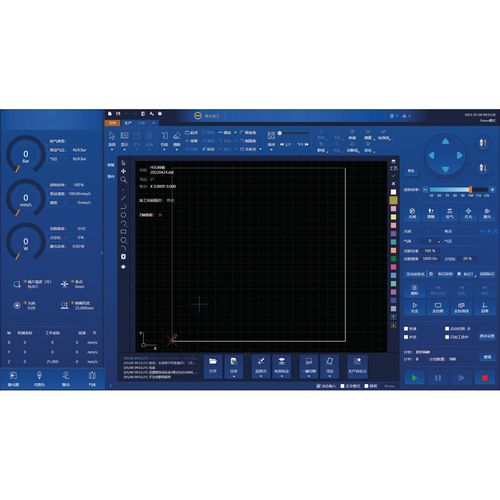

- Extremely simple machine operation thanks to the intelligent AlphaT Plus® control system
- Offline nesting software Cypnest Professional™ from the renowned manufacturer BOCHU® included in the scope of delivery as a lifetime license
- Equipped with fibre laser technology
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 20 mm |
| Material thickness max. stainless steel | 10 mm |
| Material thickness max. aluminum | 8 mm |
| Material thickness max. brass | 8 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 10120 mm |
| Width/depth approx. | 2370 mm |
| Height approx. | 2420 mm |
| Weight approx. | 7400 kg |
| Electrical Data | |
|---|---|
| Laser power | 6 kW |
| Input power | 38 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | HSG Laser Co., Ltd. (Responsible: Xlase Gmbh) |
| Address | No. 4, AnYe Road, Shunde District, Foshan, Guangdong, China (Responsible: Itterpark 6, 40724 Hilden, Germany) |
| info@hsglaser.com (Responsible: info@xlase.de) | |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device and a remote server |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Cooling unit
- Stabilizer
- Protective device / light barriers
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Accessories
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
