    Laser cutting machine

    TS 65 6kW

    for classic applications

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 4660005

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Extra-sturdy welded construction for high stability and high cutting precision
    • High quality components from the market leaders in their industry
    • Laser head from HSG Laser -> Higher focusing speed than comparable laser cutting units. Thus higher piercing speed for large material thicknesses. A double protective lens extends the life of the main lens
    • Laser source from Raycus -> One of the best known manufacturers of efficient and high quality laser sources that achieve large output powers.
    • Precise X and Y axes with servo motors from Rexroth and Sanyo Denki

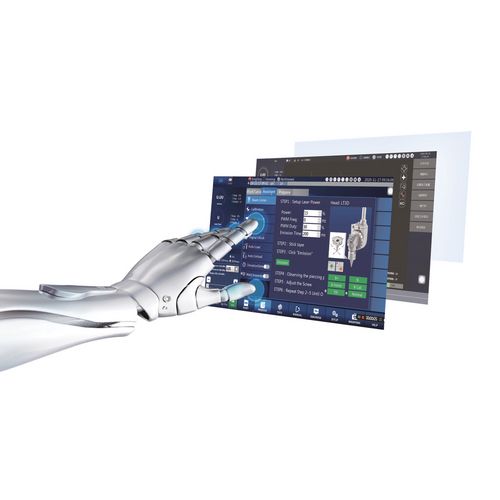

    • Control system - HSG X9000
    • Bus control via EtherCAT protocol, fast control speed
    • Equipped with several functions such as scan cutting, 5-step grooving, maintenance reminder, process report
    • Intelligent digital chuck with closed loop control: Precise clamping with exactly the right clamping force even for thin workpieces, Auto-centering, Wireless transmission, Detection of clamping jaw position in real time, Adjusting clamping force, Detects independently when a wrong workpiece is clamped and stops immediately



    Max. travel speed140 m/min
    Workpiece size round tube20 – 273 mm
    Workpiece size square tube20 – 200 mm
    Position accuracy± 0.03 mm/m
    Max. machine table load200 kg
    VPE1
    Cutting performance
    Material thickness max. mild steel25 mm
    Material thickness max. stainless steel14 mm
    Material thickness max. aluminum12 mm
    Material thickness max. brass12 mm
    Explanation Material thickness max.Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air)
    Dimensions and weights
    Length approx.12500 mm
    Width/depth approx.3000 mm
    Height approx.2600 mm
    Weight approx.9500 kg
    Electrical Data
    Laser power6.0 kW
    Input power65.0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
