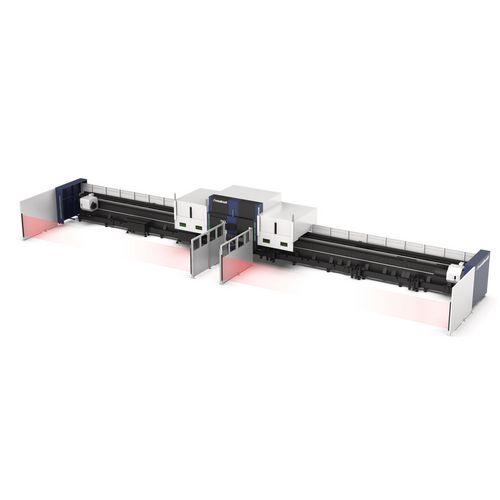

Laser cutting machine
TX3 6kW Raycus 7 m
Professional high-performance tube laser cutting machine
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4660125
Are you interested in this product?
Put a request
Find Trader
Productdetails
- L-shaped heavy-duty lathe bed developed for large and heavy pipes

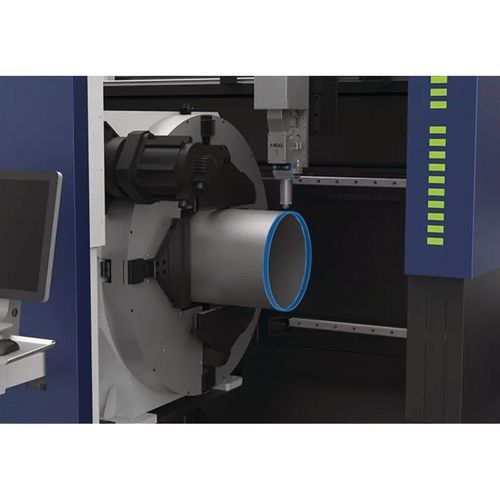

- HSG unique intelligent chuck -> for the production of tubes over the entire clamping range from 20mm to 360mm without retooling
- Automatic loading and unloading -> efficient and time-saving, saves manpower and reduces production costs
- Heavy-duty tubular support system -> provides all-round effective support for tube processing and improves accuracy when processing heavy tubes
- The multi-chuck reversing movement enables heavy pipes to be cut without residue and saves material costs
- Equipped with nationally standardized profile grippers as standard, with which angle steel, channel steel and H-steel can be cut with ease

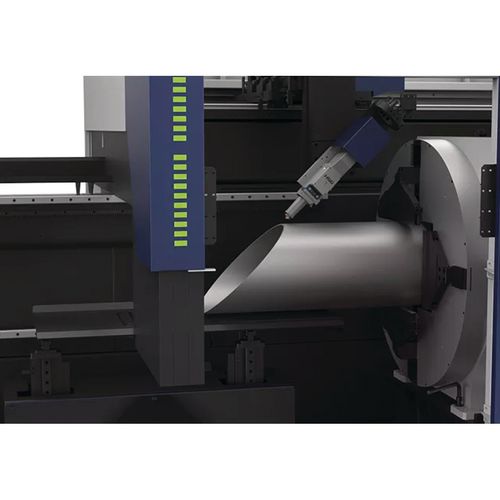

- For pipe joints with bevel cuts of up to 45°
- HSG intelligent bus operating system -> Enables convenient tube processing thanks to comprehensive application support, professional database for tube cutting processes and years of HSG data - for more efficient processes and clever designs in laser tube cutting
- High-quality components from the market leaders in their industry
- Laser source from Raycus -> one of the best-known manufacturers of efficient and high-quality laser sources that achieve high output powers
- L-shaped heavy-duty lathe bed for large and heavy pipes
- Intelligent chuck for the production of pipes over the entire clamping range from 20mm to 360mm without retooling
- Automatic loading and unloading
- Heavy-duty, tubular support system
- Multi-chuck reversing movement
- Standard with nationally standardized profile grippers for angle steel, channel steel and H-steel
- For pipe connections with bevel cuts up to 45°
| Max. travel X-axis | 12500 mm |
| Max. travel Y-axis | 360 mm |
| Max. travel Z-axis | 360 mm |
| Max. travel speed | 80 m/min |
| Workpiece size round tube | 20 – 360 mm |
| Workpiece size square tube | 20 – 360 mm |
| Position accuracy | ± 0,05 mm/m |
| Max. machine table load | 1200 kg |
| Acceleration | 0.8 G |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 16950 mm |
| Width/depth approx. | 3300 mm |
| Height approx. | 3450 mm |
| Electrical Data | |
|---|---|
| Laser power | 6 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
