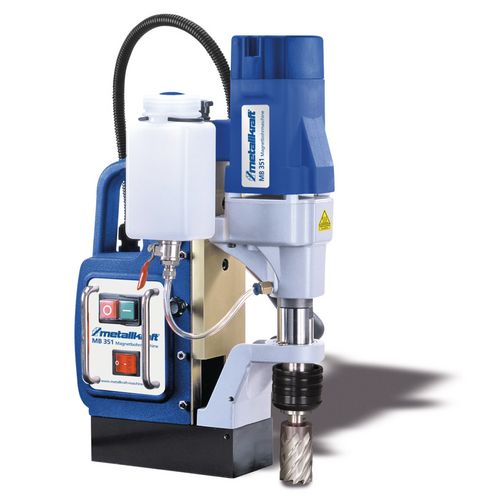

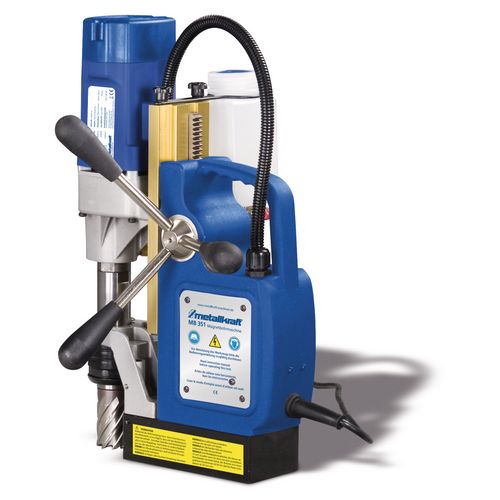

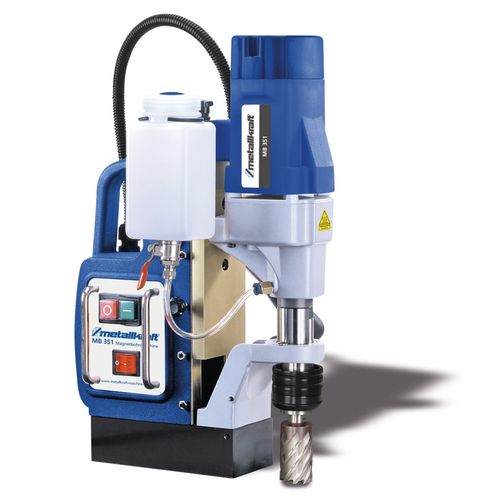

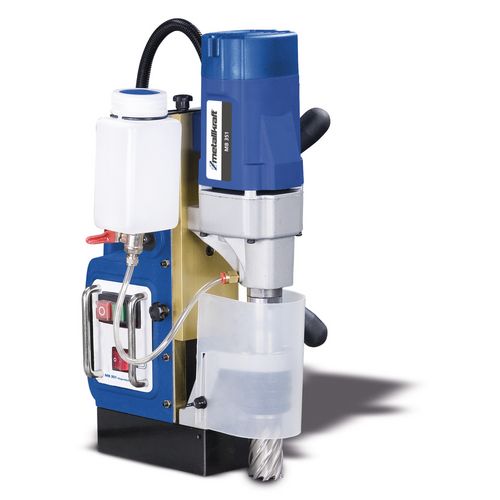

Magnetic core drill
High-quality machine for versatile use. Drill large diameters economically and quickly
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2021 in Germany.
|Core drills Ø max. with manual feed||35 mm|
|Max. drilling depth core drilling with manual feed||50 mm|
|Dimensions and weights|
|Length approx.||280 mm|
|Width/depth approx.||260 mm|
|Height approx.||395 mm|
|Weight approx.||12 kg|
|Supply voltage||230 V|
|Mains frequency||50 Hz|

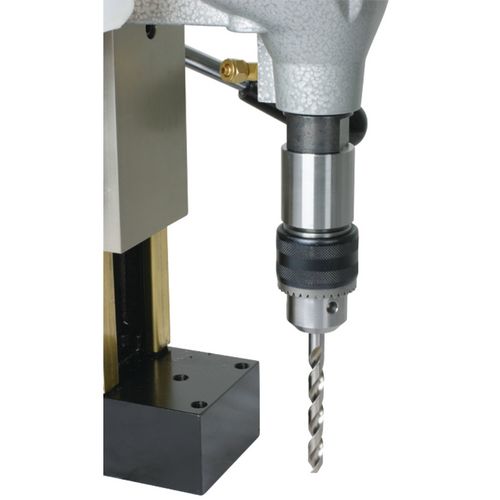

|Drill Ø max. full drilling mounted with adapter & chuck||13 mm|
|Drilling depth max. full drilling mounted with adapter & chuckBohrtiefe max.||140 mm|
|Holding force||15000 N|
|Magnet base length||165 mm|
|Magnet base width||80 mm|
|Speed(s) under load||330 min¯¹|
