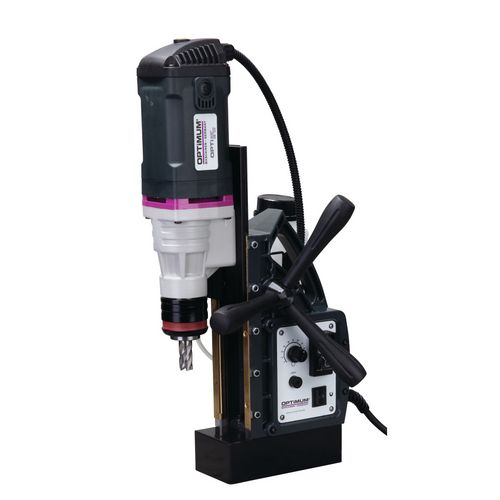

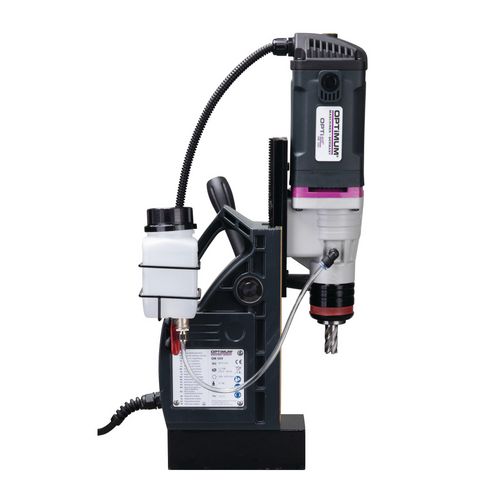

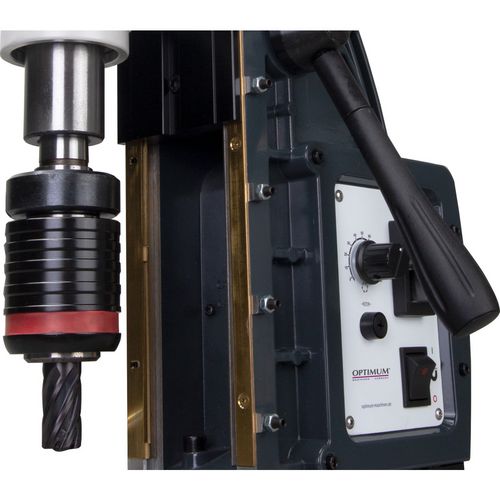

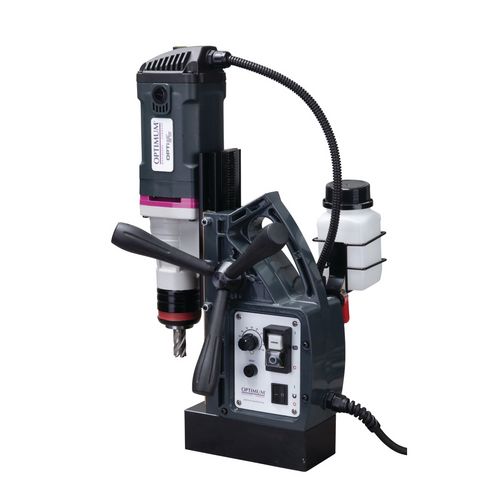

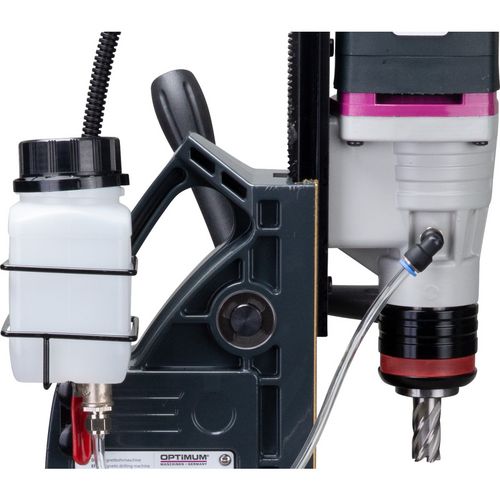

Magnetic core drill
Premium machine with continuously variable speed control and maximum feature set
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2021 in Germany.
|Core drills Ø max. with manual feed||50 mm|
|Max. drilling depth core drilling with manual feed||50 mm|
|Dimensions and weights|
|Length approx.||250 mm|
|Width/depth approx.||220 mm|
|Height approx.||300 – 470 mm|
|Weight approx.||11 kg|

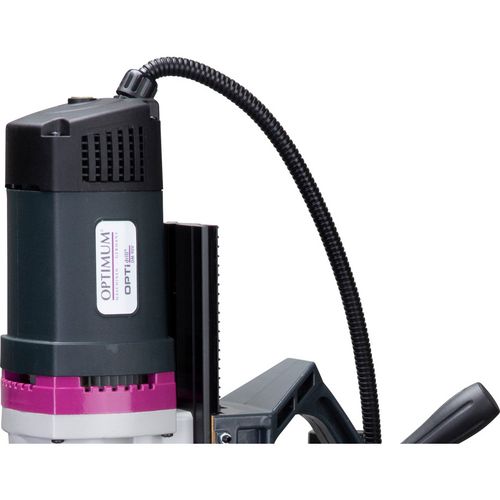

|Absorbed power drive motor||1.7 kW|
|Supply voltage||230 V|
|Mains frequency||50 Hz|
|Drill Ø max. full drilling directly mounted||13 mm|
|Holding force||15.6 kN|

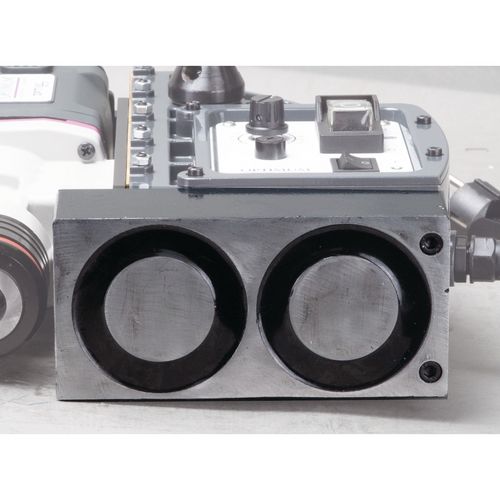

|Magnet base length||166 mm|
|Magnet base width||80 mm|
|Idle (CW run)||100 – 810 min¯¹|
|Speed control||continuously adjustable|
|Standards and certifications|
|Standard||DIN EN 55011|

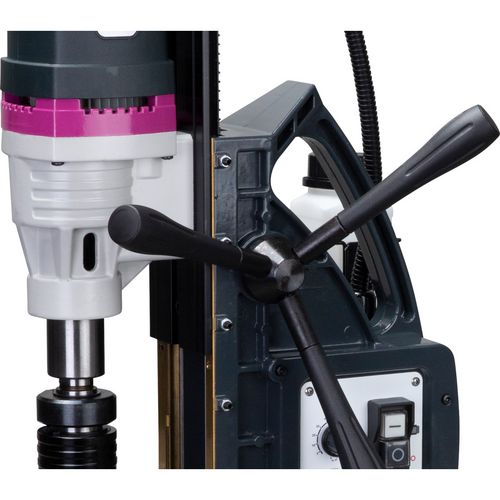

|Spindle sleeve feed||manually|
