    CNC milling machine

    OPTImill F 120X

    Drilling and thread tapping machine with full milling capability and SIEMENS SINUMERIK 828D.

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3515120

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Robust design
    • Servo tool changer with 21 tool slots
    • All linear guides with stainless steel covers
    • Automatic central lubrication
    • Machine lamp in workspace
    • Portable, electronic handwheel with confirm button and emergency stop mushroom button. Greatly facilitates running in of programs
    • Coolant system
    • Tool change automatic
    • Solid, precise milling table, precise surface machining
    • Generously designed access doors to reduce cleaning and maintenance time to a minimum
    • SIEMENS servodrive on all axes
    • Chip conveyor, belt type
    • Chip cart
    • Inline spindle 16000 rpm
    • Ball screws on all axes

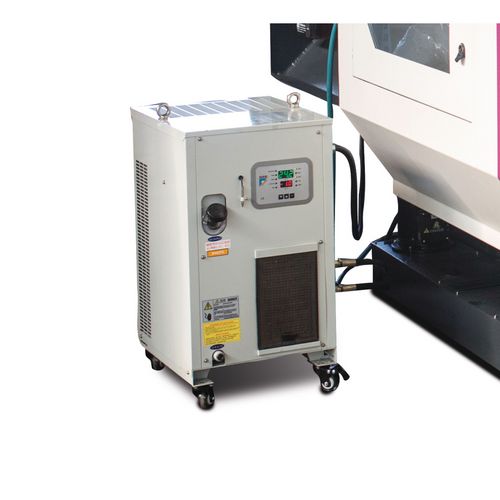

    • Oil cooler compensates for temperature fluctuations at the main spindle



    Control
    TypeSinumerik 828D
    System softwareSW 28x
    CNC memory8 MB
    Set change time1 ms
    Look Ahead150
    Number of tools512
    Cooling lubricant system
    Coolant pump(s) drive power370 W
    Tank capacity120 l
    Dimensions and weights
    Length approx.2315 mm
    Width/depth approx.2194 mm
    Height approx.2325 mm
    Weight approx.3800 kg
    Drilling/milling output
    Max. size milling head63 mm
    Max. size shaft milling cutter25 mm
    Electrical connections
    Total rated value45 kVA
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Fast motion speed
    X axis40000 mm/min
    Y axis40000 mm/min
    Z axis40000 mm/min
    Feed motor drive power
    X axis feed continuous operation S12.32 kW
    Y axis feed continuous operation S12.32 kW
    Z axis feed continuous operation S13.3 kW
    X axis 30% operation S64.1 kW
    Y axis 30% operation S64.1 kW
    Z axis 30% operation S66.5 kW
    Feed motor torque
    X axis continuous operation S17.4 Nm
    Y axis continuous operation S17.4 Nm
    Z axis continuous operation S110.5 Nm
    X axis 30% operation S614 Nm
    Y axis 30% operation S614 Nm
    Z axis 30% operation S621 Nm
    Feed speed
    Acceleration X, Y, Z axis2 m/s²
    Milling table horizontal
    Table length650 mm
    Table width400 mm
    Min. clearance vertical spindle - milling table150 mm
    Max. clearance vertical spindle - milling table450 mm
    T-groove size14 mm
    T-groove number3
    T-groove spacing125 mm
    Max. load bearing capacity250 kg
    Pneumatic connection
    Operating pressure6 bar
    Precision
    Repetition accuracy± 0.006 mm
    Positioning accuracy± 0.005 mm
    Travel
    X axis automatic500 mm
    Y axis automatic400 mm
    Z axis automatic300 mm
    Turret
    DesignServo
    Number of tool slots21 Tools
    Max. tool diameter80 mm
    Max. tool length80 mm
    Max. tool weight3 kg
    Tool change time chip to chip (C to C)7.33 s
    Vertical spindle
    Spindle chuckBT 30
    Speed range16000 min¯¹
    Explanation speed rangePlease note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
    Spindle centre to Z axis cover400 mm
    Drive motor output continuous operation S112 kW
    Drive motor output S6-30 % operation22.8 kW
    Torque drive motor continuous operation S138 Nm
    Torque drive motor S6-30 % operation116 Nm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
