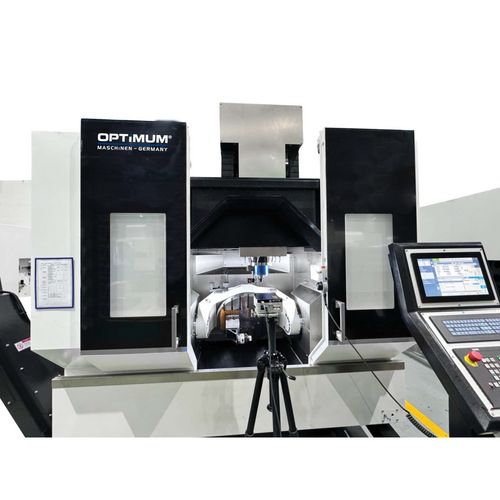

    CNC milling machine

    OPTImill FU 450

    5-axis simultaneous machining center for maximum productivity

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3522100

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

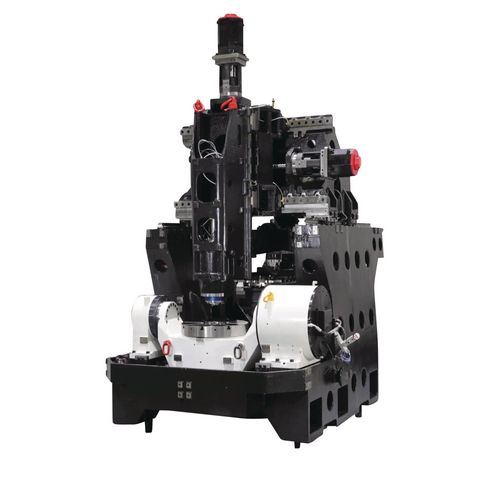

    • Heavy-duty design
    • High productivity
    • Telescopic guideway cover
    • Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
    • Spindle mounted in P5 precision bearings and permanently lubricated
    • High-torque servo drives in all five axes
    • Precision linear guide
    • Heidenhain glass scales for higher accuracy
    • High rapid traverse speed of up to 40 m/min.

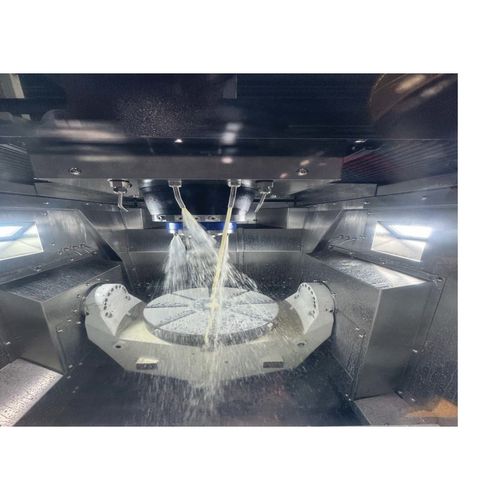

    • C-axis with torque motor for maximum speed and lifetime accuracy
    • A-axis with worm gear for high torque during tilting operations
    • Z-axis feed motor reinforced
    • The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
    • Tool changer double-arm gripper with 40 tool positions included as standard
    • Coolant system with 380 liter coolant tank with chip flushing system and cleaning gun

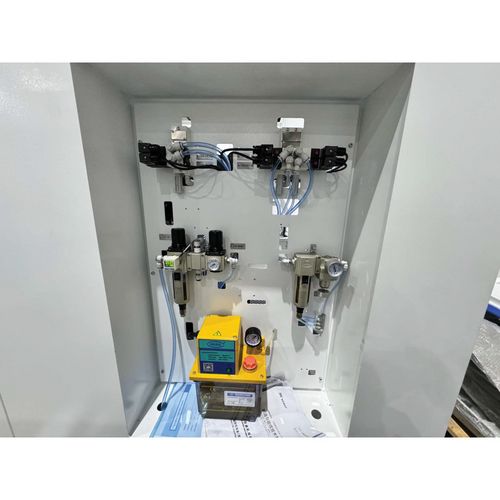

    • Automatic central lubrication
    • RJ45 plug connection, USB and 230 V power connection
    • Additional USB interface on the control panel

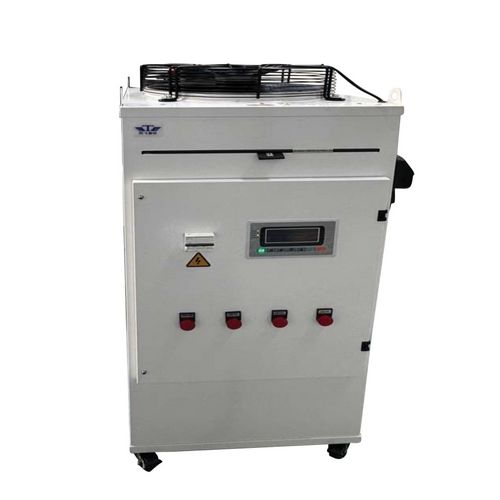

    • Water circuit cooling unit for the main spindle and main spindle motor
    • Chip conveyor in belt design ensures efficient chip removal
    • Chip trolley
    • Collision avoidance software for collision avoidance

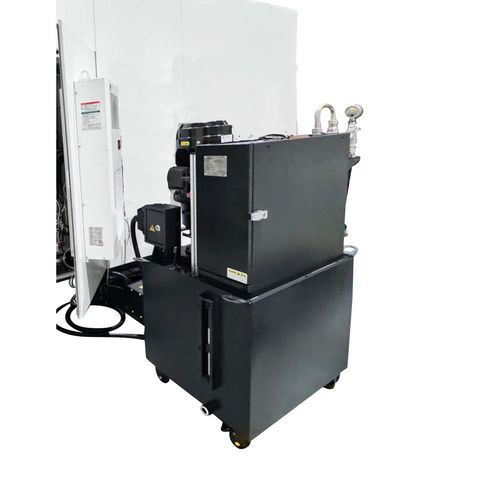

    • Internal spindle cooling 40 bar with internal tank (an extraction unit is required)
    • Air conditioning
    • Encoder for A and C axis
    • TSC Thermal spindle compensation
    • DCM Dynamic collision monitoring
    • EMC (electromagnetic compatibility)
    • Two-year SIEMENS repair service contract included. Extension of the SIEMENS additional package repair service contract (RSV) possible



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cooling lubricant system
    Coolant pump(s) drive power0,55 kW
    Tank capacity500 l
    Tank capacity CTS230 l
    Dimensions and weights
    Length approx.3400 mm
    Width/depth approx.3500 mm
    Height approx.2940 mm
    Weight approx.8000 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Fast motion speed
    X axis48000 mm/min
    Y axis48000 mm/min
    Z axis40000 mm/min
    Milling table horizontal
    Table length750 mm
    T-groove size14 mm
    Max. load bearing capacity300 kg
    Pneumatic connection
    Operating pressure6 bar
    Precision
    Repetition accuracy± 0.003 mm
    Positioning accuracy± 0.004 mm
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    Data storage location On the device
    Data accessVia physical interfaces
    Further informationIn the operating instructions or at info@stuermer-maschinen.de
    Pump
    Pump motor chip flushing3 kW
    Pump motor cleaning gun3 kW
    Rotary axis
    Rotary axis max. permissible torque (S1)340 Nm
    Rotary axis max. permissible torque (S6)340 Nm
    Swivel axis± 120 °
    Rotation axis360 °
    Rotary table diameter450 mm
    Max. speed A axis50 min¯¹
    Max. speed C axis80 min¯¹
    Swivel axis max. permissible torque (S1)1200 Nm
    Swivel axis max. permissible torque (S6)1200 Nm
    Tilting and rotating table
    Hydraulic clamping torque swivel axis C (at 50 bar hydraulic pressure)650 Nm
    Hydraulic clamping torque swivel axis A (at 50 bar hydraulic pressure)2500 Nm
    Travel
    X axis automatic450 mm
    Y axis automatic500 mm
    Y axis milling head400 mm
    Turret
    DesignDouble arm gripper
    Number of tool slots40
    Max. tool diameter adjacent slots free120 mm
    Max. tool diameter80 mm
    Max. tool length300 mm
    Max. tool weight8 kg
    Tool change time chip to chip (C to C)3.5 s
    Vertical spindle
    Spindle chuckHSK 63 DIN 69893
    Speed range10 18000 min¯¹
    Drive motor output continuous operation S115 kW
    Drive motor output S6-30 % operation18,5 kW
    Torque drive motor continuous operation S133,2 kW
    Torque drive motor S6-30 % operation45,2 kW
