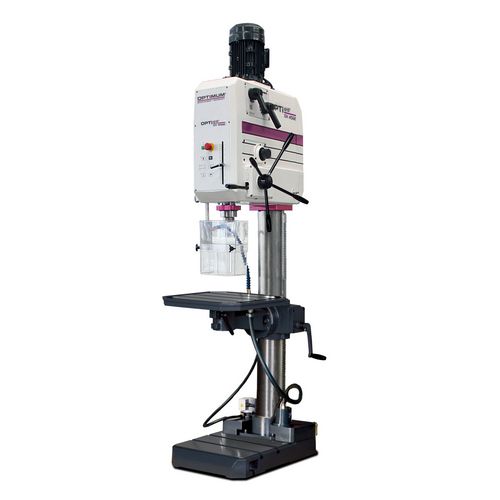

    Productimage for OPTIdrill DH 45GE
    Brandimage to Product OPTIdrill DH 45GE

    Getriebebohrmaschine

    OPTIdrill DH 45GE

    Heavy-duty version with thread cutting device

    5.835,00 EUR excl. Tax / pc(s).
    6.943,65 EUR incl. 19% Tax / pc(s).
    Promotional price *
    5.499,00 EUR excl. Tax / pc(s).
    6.543,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3034257

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy, solid cast design
    • Dirt and water-resistant, easy-to-clean membrane keypad
    • 24V DC electronics
    • Machine light
    • Drilling depth stop
    • Solid base plate with precise surface finish
    • Coolant device, chip filter
    • Tapping device
    • Extremely stable, thick-walled cast column

    Equipment

    • Electrically operated quill feed
    • Oil pump
    • Programmable feed cut-off
    • Easy-to-read digital display
    • Digitally adjustable drilling and thread depth
    • Digital zero point can be set



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.880 mm
    Width/depth approx.595 mm
    Height approx.2445 mm
    Weight approx.550 kg
    Drilling performance
    Drilling performance steel (S235JR)40 mm
    Continuous drilling performance steel (S235JR)35 mm
    Thread tapping steel (S235JR)M 30
    Drilling table
    Workspace length530 mm
    Workspace width530 mm
    T-groove size18 mm
    Electrical Data
    Drive motor output2.2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Speed range
    Speed range90 1520 min¯¹
    Number of gears8 Steps
    Spindle
    Quill stroke170 mm
    Spindle chuckMT 4
    Reach350 mm
    Quill feedautomatic
    Quill feed speed0.1 – 0.25 mm/rev
    Quill feed gears3 Steps
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Quick-action drill chuck 1-16 mm
    • Tapered arbor for drill chuck MK4/B16
