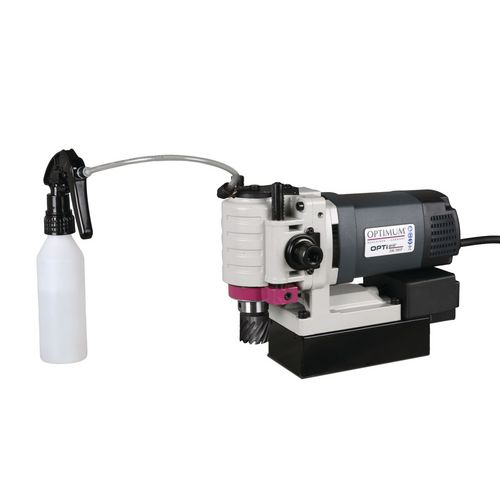

Magnetic core drill
OPTIdrill DM 38VF
Flat version
649,00
EUR excl. Tax / pc(s).
772,31
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3071339
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for hard-to-reach drilling locations with limited overhead clearance
- Reversible handle mountable on either the left or right side
- Stable drill guidance thanks to an extended, low-mounted quill holder
- Ideal for construction sites, as the units are grounded and double-insulated
- Internal self-lubrication system ensures a longer service life for the gearbox
- Soft-start function protects the motor and extends its service life
- Powerful, low-maintenance motor with high torque
- High-quality construction
- Quick and easy conversion from core drilling to solid drilling
- Automatic return to the starting position
- IP42 protection class
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 38 mm |
| Max. drilling depth core drilling with manual feed | 35 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 350 mm |
| Width/depth approx. | 150 mm |
| Height approx. | 240 mm |
| Weight approx. | 8.8 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.65 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Magnet | |
|---|---|
| Holding force | 14.5 kN |
| Magnet base length | 166 mm |
| Magnet base width | 80 mm |
| Manufacturer infos | |
|---|---|
| Manufacturer | Optimum Maschinen Germany GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@optimum-maschinen.de | |
| Speed range | |
|---|---|
| Idle (CW run) | 670 min¯¹ |
| VPE | 1 |
