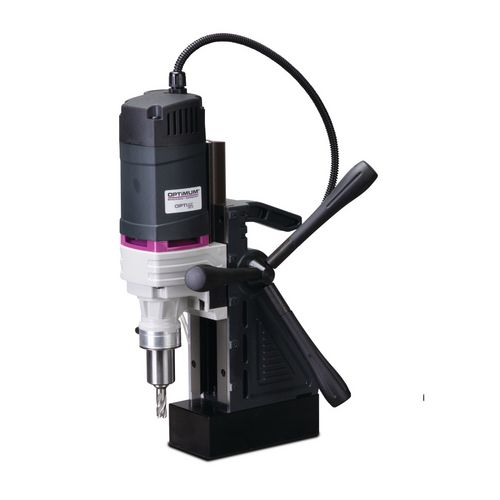

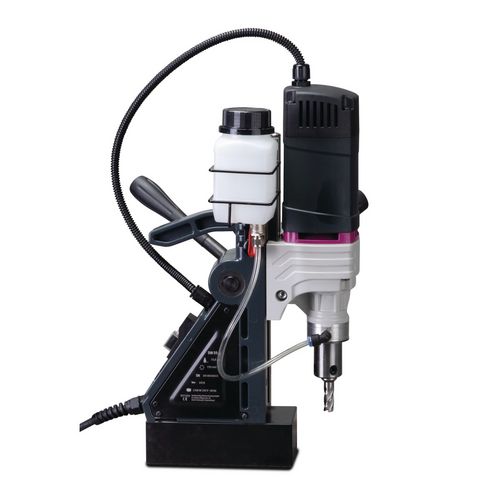

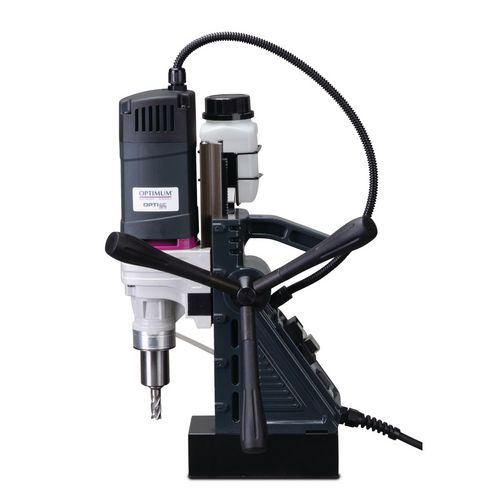

Magnetic core drill
Premium machine offers maximum feature set
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3071050
DM 35PF
Equipment details:

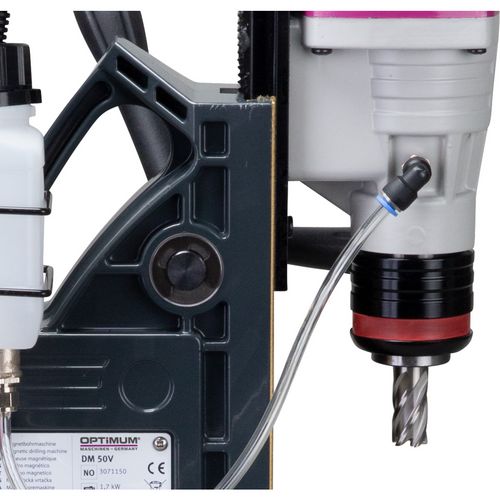

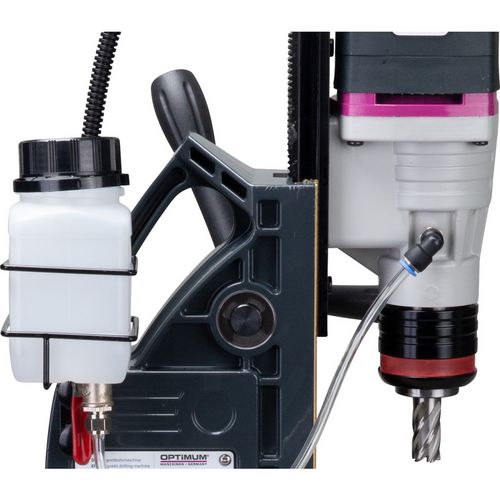

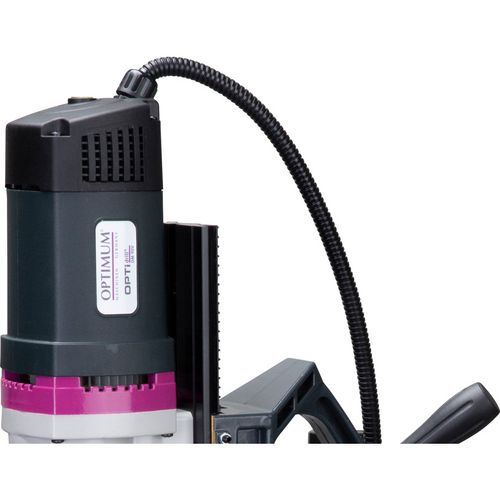

MotorCoolant tank
Guides
Housing

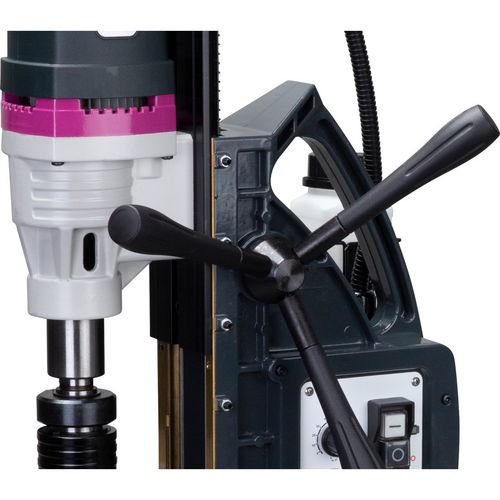

Handles
DM 35PF only
Collet | |
---|---|
Spindle | fixed |

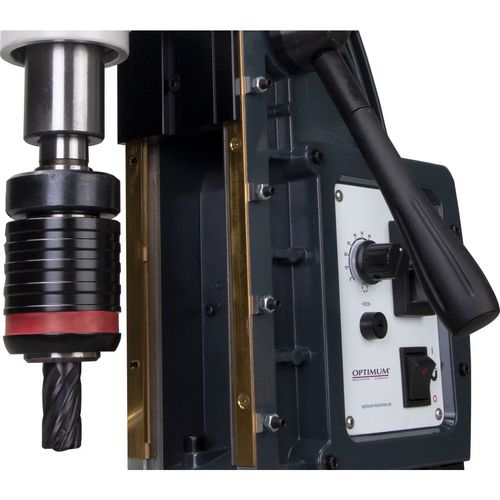

Drill | Weldon 3/4" |

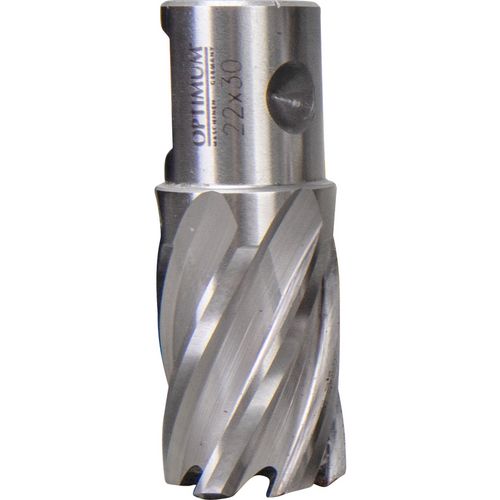

Core drills | |
---|---|
Core drills Ø max. with manual feed | 50 mm |
Max. drilling depth core drilling with manual feed | 50 mm |
Dimensions and weights | |
---|---|
Length approx. | 370 mm |
Width/depth approx. | 180 mm |
Height approx. | 580 mm |
Weight approx. | 10,6 kg |
Drive output | |
---|---|
Absorbed power drive motor | 1.75 kW |
Electrical Data | |
---|---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Full drills | |
---|---|
Drill Ø max. full drilling directly mounted | 13 mm |

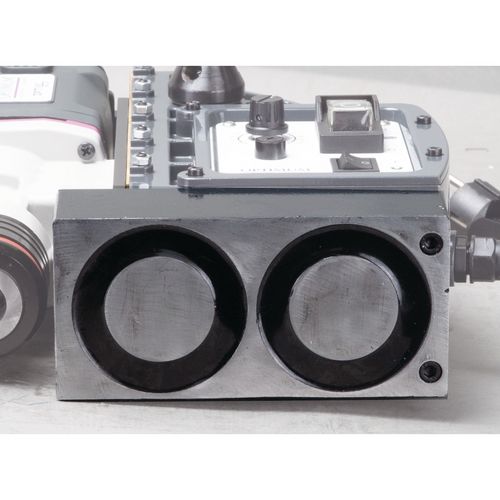

Magnet | |
---|---|
Holding force | 14.5 kN |
Magnet base length | 166 mm |
Magnet base width | 80 mm |
Speed range | |
---|---|
Idle (CW run) | 790 min¯¹ |
Standards and certifications | |
---|---|
EMV-Class | C2 |
Protection class | IP 42 |
VPE | 1 |
Spindle sleeve feed | Manual |
