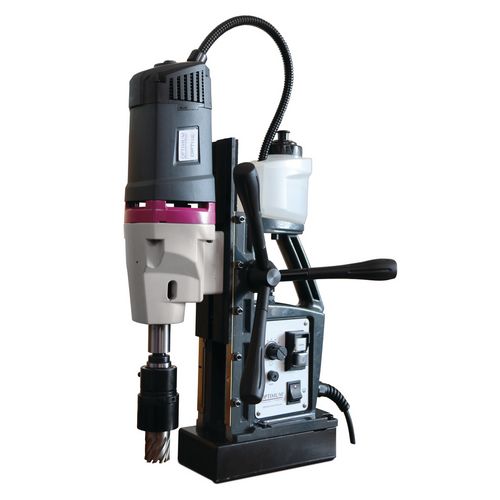

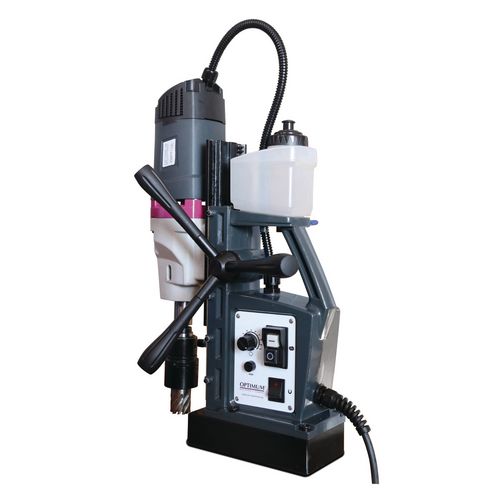

Magnetic core drill
OPTIdrill DM 60V
When reliability, precision and cost-effective working are important
935,00
EUR excl. Tax / pc(s).
1.112,65
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3071161
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Stable drill guide due to long and low-mounted quill holder
- The devices are ideal for the construction site as they are earthed and double insulated
- Internal self-lubrication function ensures a longer service life of the gearbox
- Soft start protects the motor and extends the service life
- Powerful motor with high torque and low maintenance
- High-quality construction
- Conversion from core drilling to solid drilling in a few simple steps
- Automatic return to the starting position
- Protection class IP42
Vario machines:
- Infinitely variable speed
- Quick-change chuck
- Low-wear brass guide
| Collet | |
|---|---|
| Drill | Weldon 3/4" |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 23 mm |
| Max. drilling depth core drilling with manual feed | 40 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 330 mm |
| Width/depth approx. | 230 mm |
| Height approx. | 490 mm |
| Weight approx. | 15.8 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,99 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |

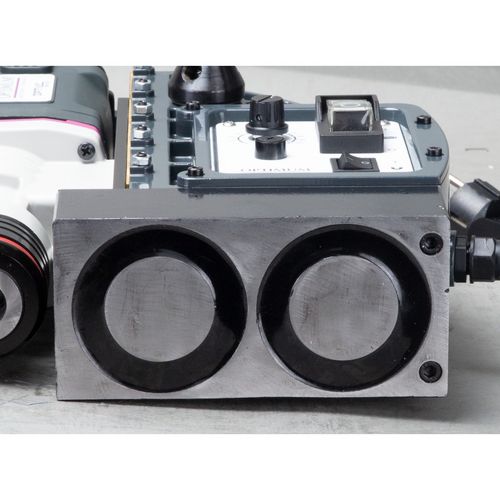

| Magnet | |
|---|---|
| Holding force | 16 kN |
| Magnet base length | 202 mm |
| Magnet base width | 102 mm |
| Speed range | |
|---|---|
| Idle (CW run) | 100 - 600 min¯¹ |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
