| Dimensions and weights | |
|---|---|
| Column diameter | 80 mm |
| Length approx. | 845 mm |
| Width/depth approx. | 406 mm |
| Height approx. | 1025 mm |
| Weight approx. | 98 kg |

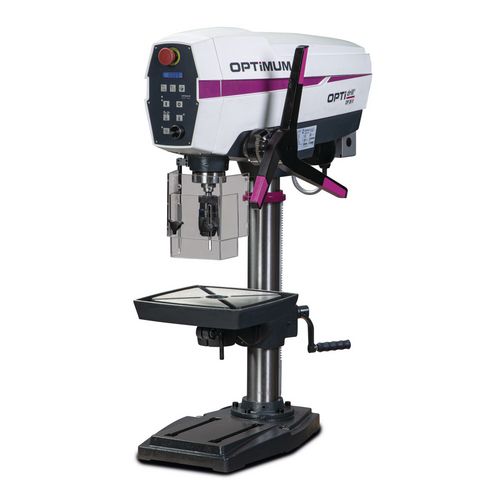

Upright drill
OPTIdrill DP 26VT Special offer set
With electronically controllable drive in modern design
2.048,00
EUR excl. Tax / pc(s).
2.437,12 EUR incl. 19% Tax / pc(s).
2.437,12 EUR incl. 19% Tax / pc(s).
Promotional price *
1.899,00 EUR excl. Tax / pc(s).2.259,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3020675TSET
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Industrial motor

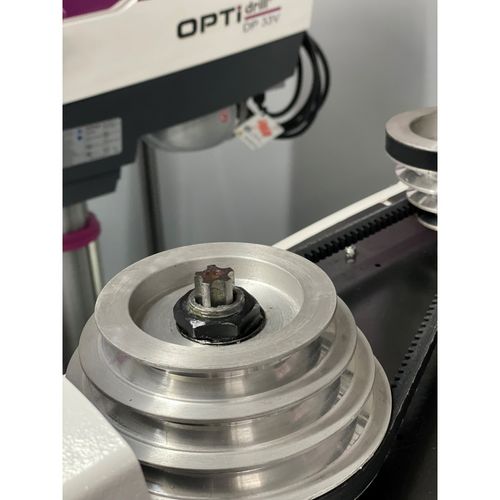

- Quiet running spindle thanks to new spindle design
- Machine operation with safety electrics in 24 V DC voltage
- Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
- Right/left rotation
- Precision spindle bore
- Control panel with user-friendly, dirt and water resistant membrane keypad
- Speed display
- Separate emergency stop impact switch
- Thread cutting function

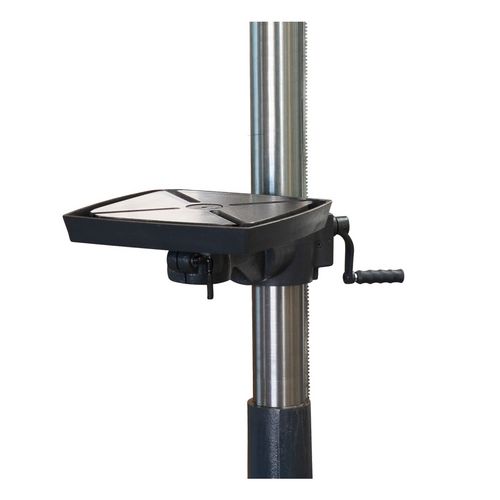

- Precisely machined, stable drilling table with diagonally running T-slots with circumferential cooling water channel, laterally tiltable by ±45° and 360° rotatable
- Digital depth gauge
- LED machine light integrated in drill head

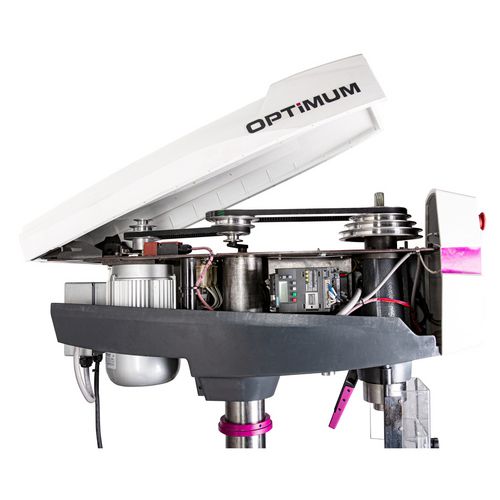

- V-belt cover with safety switch
- Thick-walled steel column for high force absorption and stability
- Solid, large-dimensioned base plate with T-slots
- Heavy-duty design of the entire machine
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 25 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
|---|---|
| Workspace length | 308 mm |
| Workspace width | 308 mm |
| T-groove type | diagonal |
| T-groove size | 12 mm |
| T-groove number | 2 |
| Rotation | 360 ° |
| Angle | ± 45 ° |
| Max. distance spindle - drilling table | 400 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 0.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 592 mm |
| Work area length | 202 mm |
| Work area width | 265 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Speed range | |
|---|---|
| Speed range | 60 – 3050 min¯¹ |
| Number of gears | 12 Steps |
| Spindle | |
|---|---|
| Quill stroke | 95 mm |
| Spindle chuck | MT 3 |
| Reach | 209 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Keyless drill chuck 1-16 mm
- Taper mandrel for drill chuck
- T-slots
- Ejector
