| Airflow | 4.6 m³/min |
| Volume of chip drawer | 15 l |
| VPE | 1 |

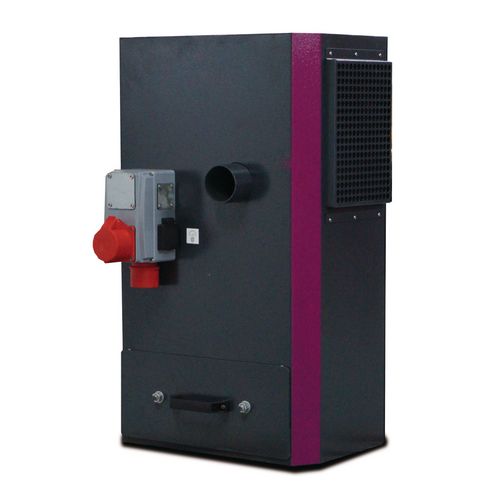

Machine substructure with extraction
GU 2
Twin-engined cyclone vacuum for belt grinding machines or other external machines
959,00
EUR excl. Tax / pc(s).
1.141,21
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3107115
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Twin-engined cyclone vacuum
- Y-adapter for two-pipe suction connection 60 x 300-1000 mm flexible
- Low space requirement
- Noise-insulated
- External 230 V -permanent connection
- Y adapter for two-pipe connection
Automatic switch
- When the external device is switched on, the suction system starts automatically with a delay of 2-3 seconds. The additional switching on the suction is eliminated
- After switching off the external device, the extraction continues for another 2-3 seconds
- The residual dust is sucked off after switching off the machine according to the Hazardous Substances Ordinance
Die Unterbauten GU 1 und GU 2 entsprechen der Norm DIN EN 55011: Klasse C2.
Hinweis: Die Absaugung benötigt einen 0-Leiter
| Dimensions and weights | |
|---|---|
| Length approx. | 525 mm |
| Width/depth approx. | 440 mm |
| Height approx. | 815 mm |
| Weight approx. | 60 kg |
| Drive output | |
|---|---|
| Main motor | 2 x 1.3 kW |
| Electrical connections | |
|---|---|
| Total rated value | 4 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Standards and certifications | |
|---|---|
| EMV-Class | C2 |
| Standard | DIN EN 55011 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
