Surface grinding machine

OPTIgrind GT 40

For the fine grinding (finishing) of metal surfaces. Accuracy and high grinding quality with digital position display DPA 31

34.500,00 EUR excl. Tax / pc(s).
41.055,00 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3111040

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Electromagnetic clamping plate for fixing the workpiece with automatic demagnetization function
    • High-quality spindle with precision taper roller bearings
    • Hardened and ground table guideways
    • Turcite-B-coated counter-guides for high wear resistance and low friction
    • Grinding spindle with high-quality precision bearings
    • Grinding wheel can be resharpened directly on the machine using a puller device
    • Digital position indicator
    • Machine base made of stable, torsion-resistant cast iron for maximum rigidity and stability
    • Guideways of the longitudinal grinding wheel Lateral and vertical movements are backlash-free and self-centering as V- and flat track design
    • Precision ball screws
    • Guideways and transport spindle with central lubrication
    • All flat tracks are finely scraped and thus guarantee highest precision of all manual movements
    • Safety electrical system in 24 V direct voltage
    • Largely dimensioned decoupled handwheels in all three axes
    • Hydraulic lines according to DIN EN 853
    • Grinding accuracy: 0,005 mm
    • Corundum grinding wheel grain 46 for all common steels

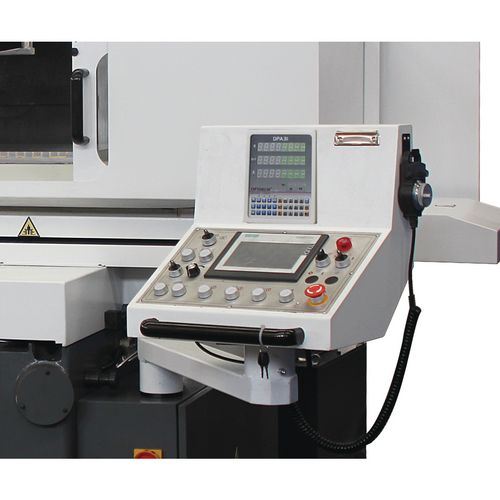

    • Swivelling control panel makes work considerably easier
    • Two-channel safety electronics
    • Sanding tableSplash guard
    • Coolant tank capacity 100 liters
    • Digitally controlled automatic vertical feed with servo motor
    • Complex hydraulic system with heat exchanger ensures smooth table repositioning even with high table loads
    • EMV filter class
    • With IE3 motor - consumes considerably less energy and therefore significant cost savings



    Dimensions and weights
    Length approx.3600 mm
    Width/depth approx.2400 mm
    Height approx.1900 mm
    Weight approx.3600 kg
    Electrical Data
    Drive motor output4 kW
    Total rated value7,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Grinding wheel(s)
    External diameter350 mm
    Width40 mm
    Drill hole127 mm
    Peripheral speed27 m/s
    Spindle
    Speed1450 min¯¹
    True running accuracy0.005 mm
    Surface grinding table
    Clamping surface length400 mm
    Clamping surface width800 mm
    X axis
    Travel speed5 – 25 m/min
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Digital position display
    • Coolant device
    • Balancing mandrour
    • Grinding wheel Grain 46
    • Diamond pen
    • Operating tool
    • Time controlled central lubrication
    • LED lamp
    • Electromagnetic clamping plate
    • Demagnetizing function



    Clamping plateElectro Magnet
    Splash guardTable enclosure
    Demagnetizing deviceAutomatic
    Parallel hone device
    Coolant device125 W
    Work lightLED light
    Alignment feet
