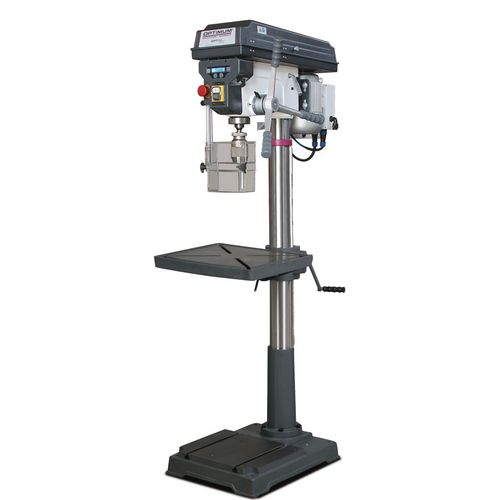

Upright drill

OPTIdrill D 33Pro

with V-belt drive

1.499,00 EUR excl. Tax / pc(s).
1.783,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3003040

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Industrial engine
    • Easy to use safety switch according to IP 54

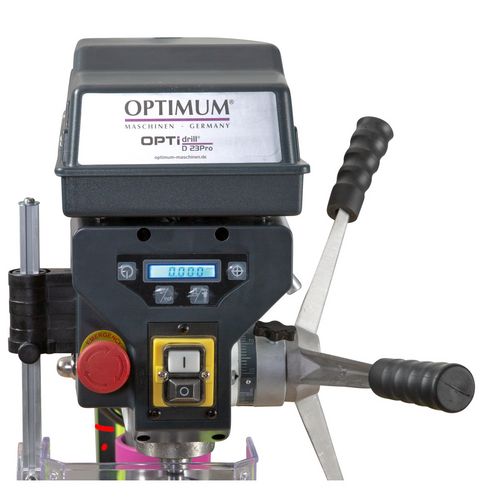

    • Digital drilling depth and speed indicator integrated in the housing
    • Separate emergency stop impact switch
    • Precision Spindle bore
    • Safety electronics in 24 V DC
    • Guaranteed concentricity measured less than 0.02 mm in the drill quill
    • Drill spindle with precision ball bearings
    • High quality keyless chuck
    • Depth stop

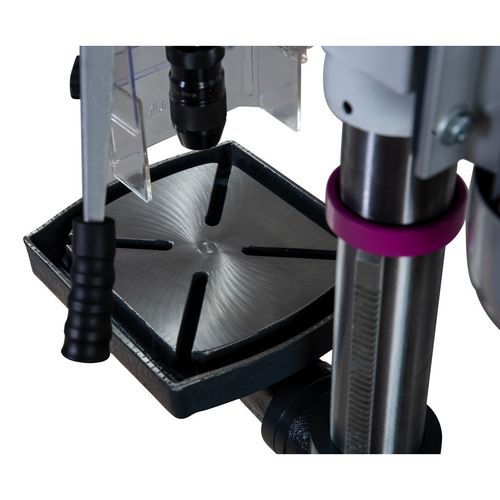

    • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

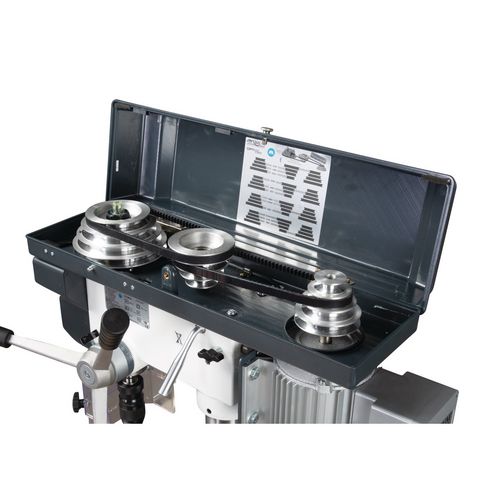

    • V-belt cover with safety switch
    • One piece cast aluminum die-cast quill lever with softgrip handles
    • Large, height-adjustable protective screen with safety switch
    • Heavy version of the entire machine

    From D 23 Pro

    • GATES quality strap

    From D 23 Pro / 400 V

    • Forward / reverse operation

    D 33Pro

    • Massive, large base plate with T-slots, strongly ribbed on the back



    Dimensions and weights
    Column diameter92 mm
    Length approx.755 mm
    Width/depth approx.440 mm
    Height approx.1705 mm
    Weight approx.132 kg
    Drilling performance
    Drilling performance steel (S235JR)30 mm
    Continuous drilling performance steel (S235JR)25 mm
    Drilling table
    Workspace length475 mm
    Workspace width425 mm
    T-groove size14 mm
    Rotation360 °
    Angle45 °
    Max. distance spindle - drilling table695 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1180 mm
    Work area length410 mm
    Work area width 325 mm
    Machine base T-groove size16 mm
    Machine base T-groove number2
    Machine base T-groove spacing250 mm
    Speed range
    Speed range120 – 1810 min¯¹
    Number of gears9
    Spindle
    Quill stroke120 mm
    Spindle chuckMT4
    Reach254 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Keyless drill chuck 1 - 16 mm
    • Morse taper MK 4/B16
    • T-slots
