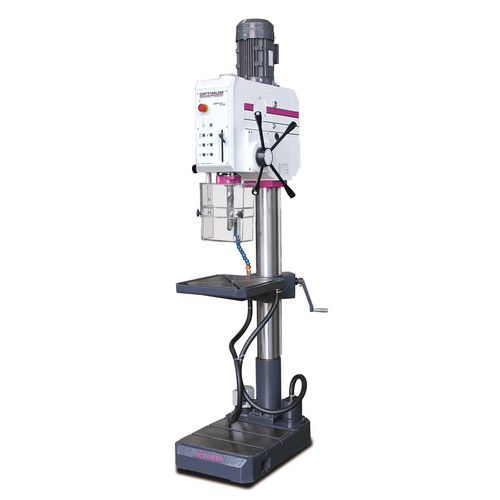

• Productimage for OPTIdrill DH 35G
  • Productimage for OPTIdrill DH 35G
  • Productimage for OPTIdrill DH 35G
  • Productimage for OPTIdrill DH 35G
Brandimage to Product OPTIdrill DH 35G

Gear drilling machine

OPTIdrill DH 35G

With coolant and thread cutting device

4.990,00 EUR excl. Tax / pc(s).
5.938,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3034250

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Dirt and water resistant, easy to clean membrane keypad
    • Electronics 24V DC
    • Depth stop
    • Electrical quill feed
    • Low-maintenance, running in closed oil bath gearbox
    • Threading attachment
    • Machine light integrated in the drill head
    • Main switch
    • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
    • Large dimensioned, solid drill table, precisely worked with diagonal T-slots and all-round cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
    • Coolant device integrated with coolant reservoir in the base plate
    • Chip filter cleans the coolant from coarse components
    • Extremely stable, thick-walled cast-iron column for high power consumption
    • Solid base plate with parallel T-slots, precision surface finish
    • Optional foot switch for switching between right-left rotation and thread cutting (article no. 3050032) available



    Dimensions and weights
    Column diameter115 mm
    Length approx.860 mm
    Width/depth approx.474 mm
    Height approx.2175 mm
    Weight approx.350 kg
    Drilling performance
    Drilling performance steel (S235JR)35 mm
    Continuous drilling performance steel (S235JR)26 mm
    Thread tapping steel (S235JR)M 24
    Drilling table
    Workspace length400 mm
    Workspace width420 mm
    T-groove typediagonal
    T-groove size14 mm
    T-groove number2
    Load bearing capacity200 kg
    Max. distance spindle - drilling table800 mm
    Min. distance spindle - drilling table65 mm
    Electrical Data
    Drive motor output1,5 / 2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1217 mm
    Work area length420 mm
    Work area width 395 mm
    Machine base T-groove size14 mm
    Machine base T-groove number2
    Machine base T-groove spacing150 mm
    Motor(s)
    Coolant pump drive motor output40 W
    Speed range
    Speed range75 – 2000 min¯¹
    Number of gears8 Steps
    Spindle
    Quill stroke125 mm
    Spindle chuckMT 4
    Reach285 mm
    Quill feed speed0.05 – 0.15 mm/rev
    Quill feed gears3 Steps
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Keyless drill chuck 1 - 16 mm
    • Morse taper MK 4/B16
