| Dimensions and weights | |
|---|---|
| Column diameter | 115 mm |
| Length approx. | 920 mm |
| Width/depth approx. | 680 mm |
| Height approx. | 1895 mm |
| Weight approx. | 275 kg |

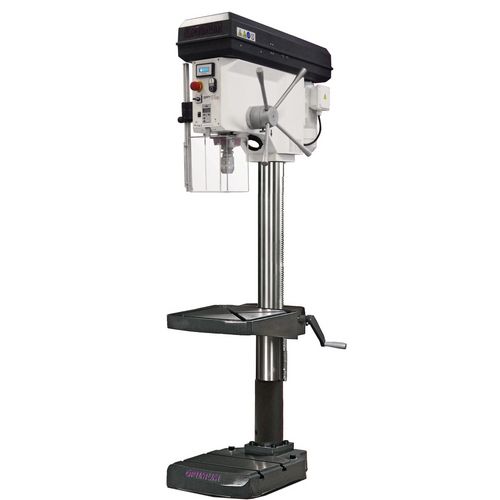

Upright drill
OPTIdrill DH 40BV
With stepless mechanical transmission from Berges
4.250,00
EUR excl. Tax / pc(s).
5.057,50 EUR incl. 19% Tax / pc(s).
5.057,50 EUR incl. 19% Tax / pc(s).
Promotional price *
4.089,00 EUR excl. Tax / pc(s).4.865,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3020450
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Smooth and powerful electric motor
- Two speed levels
- Forward / reverse operation
- V-belt cover with safety switch
- Digital speed indicator integrated in the housing
- Concentricity guaranteed less than 0.015 mm measured in quill
- Height-adjustable feed guard with microswitch for the utmost protection of the user
- Machine light integrated in the drill head
- Drill spindle with precision ball bearing
- High quality keyless chuck as standard
- Precision machined drilling table with diagonally running T-slots, 360 ° rotatable with circulating cooling water channel
- Thick-walled cast-iron column for high power absorption and stability
- Massive base plate, large dimensions heavily ribbed on the back
- Base plate usable by pivoting away the drilling table as a work surface for particularly high workpieces
From DH 28BV
- Easy tool change through integrated expeller
- Quillons made of steel
DH 40BV
- Digital depth gauge
- Countershaft transmission allows a much higher torque
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 40 mm |
| Continuous drilling performance steel (S235JR) | 32 mm |
| Drilling table | |
|---|---|
| Workspace length | 420 mm |
| Workspace width | 400 mm |
| T-groove type | diagonal |
| T-groove size | 14 mm |
| Rotation | 360 ° |
| Max. distance spindle - drilling table | 790 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1275 mm |
| Work area length | 390 mm |
| Work area width | 400 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Motor(s) | |
|---|---|
| Spindle motor drive output | 1.50 / 2.20 kW |
| Number of gears spindle motor | 2 Steps |
| Speed range | |
|---|---|
| Speed range | 150 – 2000 min¯¹ |
| Number of gears | 2 Steps |
| Speed control | Manual |
| Spindle | |
|---|---|
| Quill stroke | 160 mm |
| Spindle chuck | MT 4 |
| Reach | 285 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Optimum quality keyless chuck (1 - 16 mm)
- Morse cone MK 4 / B16
- T-nuts
