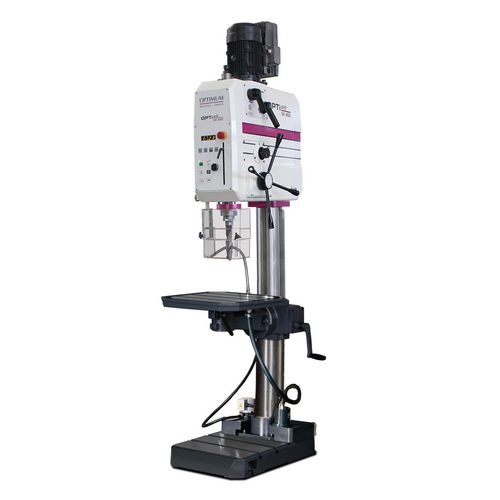

• Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
  • Productimage for OPTIdrill DH 45V
Brandimage to Product OPTIdrill DH 45V

Gear drilling machine

OPTIdrill DH 45V

Heavy duty tapping attachment for industrial use. With continuously adjustable speed control

10.550,00 EUR excl. Tax / pc(s).
12.554,50 EUR incl. 19% Tax / pc(s).
Promotional price *
8.799,00 EUR excl. Tax / pc(s).
10.470,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2023 in Germany.

Art.-No. 3034262

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Dirt and water resistant, easy to clean membrane keypad
    • Electronics 24V DC
    • Drilling depth stop
    • Automatic gear lubrication via oil pump
    • Thread cutting device
    • Machine light integrated in drill head
    • Main switch
    • Largely dimensioned, height-adjustable safety screen with safety switch for the greatest possible protection of the operator
    • Largely dimensioned, solid drilling table, precisely machined with parallel T-slots and circumferential cooling water channel, heavily ribbed at the rear, can be tilted sideways by ± 90°.
    • Coolant unit and external coolant tank can be removed for easy and complete emptying
    • Extremely stable, thick-walled cast column for high force absorption
    • Solid base plate with parallel T-slots, precisely surface machined
    • Optional foot switch available for switching between clockwise and counterclockwise rotation and for thread cutting (article no. 3050032)

    OPTIdrill DH 45V

    • Electrically operated quill feed
    • Programmable feed cut-off
    • Easy to read digital display
    • Digitally adjustable drilling and tapping depth
    • Digital zero point can be set
    • With infinitely variable speed control

    OPTIdrill DH 45G

    • Mechanical quill feed




    Dimensions and weights
    Column diameter150 mm
    Length approx.880 mm
    Width/depth approx.595 mm
    Height approx.2445 mm
    Weight approx.550 kg
    Drilling performance
    Drilling performance steel (S235JR)40 mm
    Continuous drilling performance steel (S235JR)35 mm
    Thread tapping steel (S235JR)M 35
    Drilling table
    Workspace length530 mm
    Workspace width530 mm
    T-groove size18 mm
    T-groove number3
    T-groove spacing125 mm
    Rotation360 °
    Angle± 90 °
    Load bearing capacity250 kg
    Max. distance spindle - drilling table740 mm
    Min. distance spindle - drilling table130 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1210 mm
    Work area length435 mm
    Work area width 445 mm
    Machine base T-groove size18 mm
    Machine base T-groove number2
    Machine base T-groove spacing150 mm
    Motor(s)
    Coolant pump drive motor output100 W
    Speed range
    Speed range30 – 2430 min¯¹
    Number of gears4 Steps
    Speed controlelectronic
    Spindle
    Quill stroke170 mm
    Spindle chuckMT 4
    Reach350 mm
    Quill feedautomatic
    Quill feed speed0,1 – 0,2 mm/rev
    Quill feed gears3 Steps
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Keyless chuck 1 - 16 mm
    • Morse cone MK 4-B16
    • Transmission oil
