| Dimensions and weights | |
|---|---|
| Column diameter | 200 mm |
| Length approx. | 850 mm |
| Width/depth approx. | 1060 mm |
| Height approx. | 2545 mm |
| Weight approx. | 907 kg |

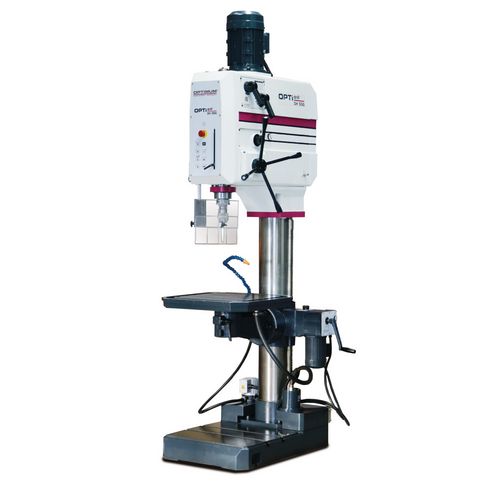

Gear drilling machine
OPTIdrill DH 55G
Heavy duty tapping attachment for industrial use
10.290,00
EUR excl. Tax / pc(s).
12.245,10 EUR incl. 19% Tax / pc(s).
12.245,10 EUR incl. 19% Tax / pc(s).
Promotional price *
8.999,00 EUR excl. Tax / pc(s).10.708,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3034265
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy, solid cast construction
- Dirt and water resistant, easy to clean membrane keypad
- Electronics 24V DC
- Electrical quill feed
- Depth stop
- Threading attachment
- Machine light integrated in the drill head
- Large, height-adjustable protective screen with safety switch for maximum protection of the user
- Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
- Motorized rotary table height adjustment
- Coolant system and external coolant tank can be removed for easy and complete emptying
- Chip filter according to Machinery Directive
- Extremely stable, thick-walled cast-iron column for high power consumption
- Solid base plate with parallel T-slots, precision surface finish
- Optional foot switch for switching between clockwise and anticlockwise rotation and for thread cutting
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 55 mm |
| Continuous drilling performance steel (S235JR) | 50 mm |
| Thread tapping steel (S235JR) | M 42 |
| Drilling table | |
|---|---|
| Workspace length | 600 mm |
| Workspace width | 600 mm |
| T-groove size | 18 mm |
| T-groove number | 2 |
| Rotation | 360 ° |
| Angle | ± 90 ° |
| Load bearing capacity | 350 kg |
| Max. distance spindle - drilling table | 725 mm |
| Min. distance chuck - drilling table | 130 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 2,2 / 2,8 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1300 mm |
| Work area length | 515 mm |
| Work area width | 570 mm |
| Machine base T-groove size | 18 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Motor(s) | |
|---|---|
| Coolant pump drive motor output | 100 W |
| Speed range | |
|---|---|
| Speed range | 45 – 2000 min¯¹ |
| Number of gears | 16 Steps |
| Spindle | |
|---|---|
| Quill stroke | 200 mm |
| Spindle chuck | MT 4 |
| Reach | 400 mm |
| Quill feed speed | 0,1 – 0,2 mm/rev |
| Quill feed gears | 3 Steps |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Keyless chuck 1-16 mm
- Morse cone MK 4 / B 16
