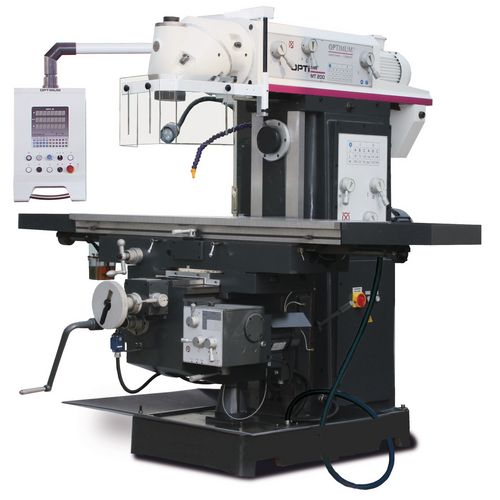

Productdetails
- Versatile application
- Heavy, solid design made of high-quality Meehanite cast iron
- Vertical and horizontal milling position
- Robust machine construction
- Smooth running due to polished gear wheels running in oil bath

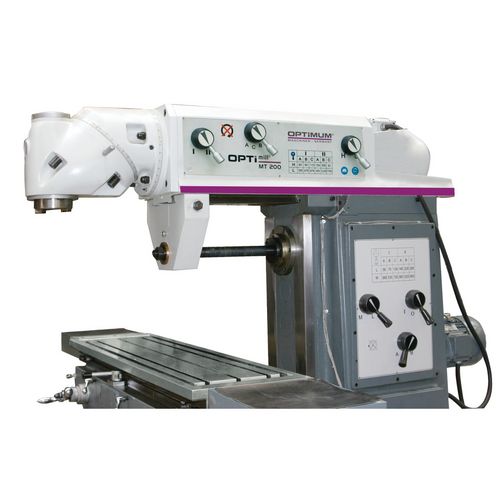

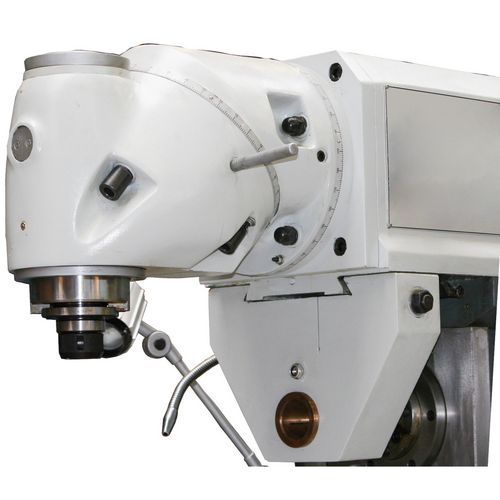

- Milling head with two axes of rotation, swiveling and rotating in every spatial angle
- Backstop for horizontal milling by attachment to the back always at hand
- All guides are hardened and adjustable by means of wedges
- Central lubrication
- Large sized decoupled handwheels with scale
- LED machine lamp
- Coolant system
- Easy operation of the switching elements
- Stable flat bed guide in the Y and Z axis
- Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
- Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
- Table feed X, Y and Z axis
- Digital position indicator DPA 2000
- Feed motor with fixed steps

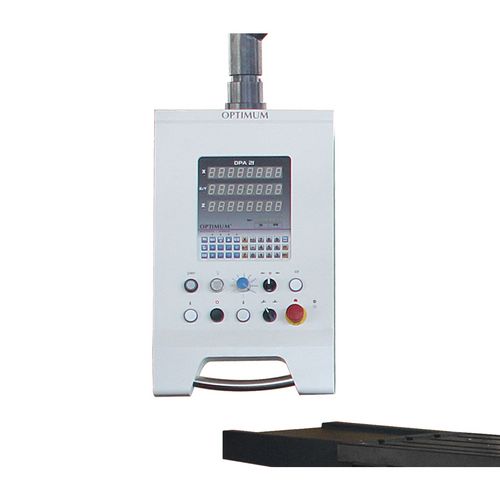

OPTI control panel
- Integrated control panel
- Integrated digital position indicator
- Rotatable around its own axis
| Cooling lubricant system |
|---|
| Coolant pump(s) drive power | 90 W |
| Dimensions and weights |
|---|
| Length approx. | 2160 mm |
| Width/depth approx. | 2160 mm |
| Height approx. | 2100 mm |
| Weight approx. | 2700 kg |
| Drilling/milling output |
|---|
| Max. size milling head | 100 mm |
| Max. size shaft milling cutter | 20 mm |
| Electrical connections |
|---|
| Total rated value | 9.2 kW |
| Electrical Data |
|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Fast motion speed |
|---|
| X axis | 1290 mm/min |
| Y axis | 1290 mm/min |
| Z axis | 342 mm/min |
| Feed |
|---|
| X axis | 8 Steps |
| Y axis | 8 Steps |
| Z axis | 8 Steps |
| Feed motor drive power |
|---|
| X axis feed continuous operation S1 | 1,1 kW |
| Y axis feed continuous operation S1 | 1,1 kW |
| Z axis feed continuous operation S1 | 1,1 kW |
| Feed speed |
|---|
| X axis | 22 – 380 mm/min |
| Y axis | 20 – 380 mm/min |
| Z axis | 7 – 127 mm/min |
| Horizontal spindle |
|---|
| Drive motor output | 4 kW |
| Spindle chuck | ISO 50 DIN 2080 |
| Horizontal spindle spindle chuck diameter | 22 mm |
| Speed range | 58 – 1800 min¯¹ |
| Number of gears | 12 |
| Milling table horizontal |
|---|
| Table length | 1650 mm |
| Table width | 360 mm |
| Min. clearance vertical spindle - milling table | 250 mm |
| Max. clearance vertical spindle - milling table | 670 mm |
| T-groove size | 14 mm |
| T-groove number | 3 |
| T-groove spacing | 95 mm |
| Rotation | 35 ° |
| Max. load bearing capacity | 450 kg |
| Min. clearance horizontal spindle - milling table | 0 mm |
| Max. clearance horizontal spindle - milling table | 400 mm |
| Standards and certifications |
|---|
| Standard | DIN EN 55011 |
| Travel |
|---|
| X axis manual | 1290 mm |
| Y axis manual | 280 mm |
| Z axis manual | 400 mm |
| X axis automatic | 1210 mm |
| Y axis automatic | 200 mm |
| Z axis automatic | 320 mm |
| Min. distance spindle to column | 250 mm |
| Max. distance spindle to column | 750 mm |
| Vertical spindle |
|---|
| Spindle chuck | ISO 50 DIN 2080 |
| Speed range | 60 – 1750 min¯¹ |
| Number of gears | 12 |
| Tightening bar | M 24 |
| Vertical spindle normal operation | 4 kW |
| Swivel range milling cutter head X - Y plane | 360 ° |
| Swivel range milling cutter head Z - X plane | 360 ° |
Unit: pc(s).
Packaging unit: 1
- Milling spindle Horizontal milling ISO 50 Ø 32 mm
- Milling spindle Horizontal milling ISO 50 Ø 27 mm
- Adapter for cutterhead ISO 50 Ø 32 mm
- Collet chuck ISO 50 Ø 4 - 26 mm
- Operating Tool
