| Dimensions and weights | |
|---|---|
| Length approx. | 1930 mm |
| Width/depth approx. | 725 mm |
| Height approx. | 1620 mm |
| Weight approx. | 572 kg |
Mechanics lathe

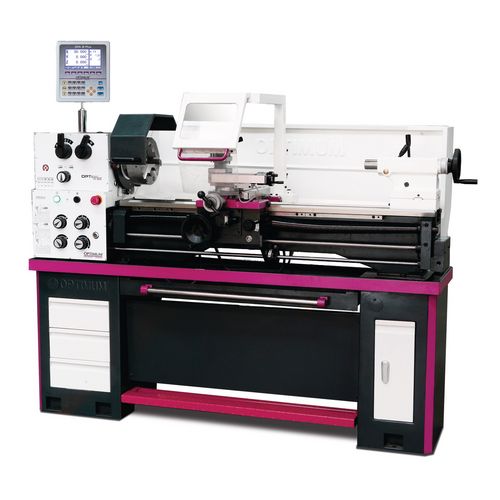

OPTIturn TH 3610D
Fully equipped and with digital position indicator DPA 31 Plus
8.390,00
EUR excl. Tax / pc(s).
9.984,10 EUR incl. 19% Tax / pc(s).
9.984,10 EUR incl. 19% Tax / pc(s).
Promotional price *
7.899,00 EUR excl. Tax / pc(s).9.399,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3402060
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Hardened and ground Z-axis guideway
- Precisely machined slide
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Spindle holder Camlock DIN ISO 702-2 No. 5
- Handwheels decoupled and tested in accordance with EN 23125
- Lead screw cover
- All guides can be adjusted using gibs
- Right/left rotation switchable on the bed slide
- Two-channel safety electronics
- Switch with life cycle calculation, tested in accordance with EN ISO 13849
- Smooth-running gear wheels, hardened and ground
- Main spindle runs in an oil bath
- Quick, easy and tool-free adjustment using clamping lever
- Handwheels with adjustable fine scaling 0.04 / 0.02 mm
- Handwheels decoupled and tested in accordance with EN 23125
- Safety handwheels with disengagement function in the X and Z axes
- Heavily ribbed prism bed, induction hardened and precision ground
- Machine base with tool compartments on both sides
- Motor protection switch, lockable main switch
- Quadruple steel holder
- Emergency stop device with foot control
- LED machine lamp integrated in the chip guard
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0,052 – 1,392 mm/rev |
| Number of longitudinal feeds | 32 |
| Flat feed range | 0,014 – 0,38 mm/rev |
| Number of flat feeds | 32 |
| Pitches | |
|---|---|
| Metric pitch | 0,4 – 7 mm/rev |
| Number of metric pitches | 26 |
| Imperial pitch | 56 – 4 Gg/1" |
| Number of imperial pitches | 34 |
| Speed range | |
|---|---|
| Number of gears | 8 |
| Speed range | 70 – 2000 min¯¹ |
| Spindle | |
|---|---|
| Spindle chuck | Camlock DIN ISO 702-2 No. 5 |
| Spindle bore/rod passage diameter | 52 mm |
| Tool holder max. chuck height | 16 mm |
| Spindle cone | MT 6 |
| Tailstock | |
|---|---|
| Chuck | MK 3 |
| Quill stroke | 120 mm |
| Quill diameter | 42 mm |
| Travel | |
|---|---|
| Travel upper slide | 100 mm |
| Travel cross slide | 170 mm |
| Travel carriage saddle | 840 mm |
| Work areas | |
|---|---|
| Max. height | 180 mm |
| Max. width | 980 mm |
| Swing diameter above machine bed | 356 mm |
| Swing diameter above planing slide | 225 mm |
| Turning length in bed bridge | 160 mm |
| Bed width | 187 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Fixed bezel passage max. Ø 100 mm
- Running bezel passage max. Ø 95 mm
- LED machine light
- Reduction sleeve MK 6 / MK 3
- Two fixed centering points MK 3
- Quadruple tool holder
- Change gear set
- substructure
- Initial machine filling with quality oil
- operating tool
Do not forget the lathe chuck!
| Digital position indicator | DPA 31 Plus |
