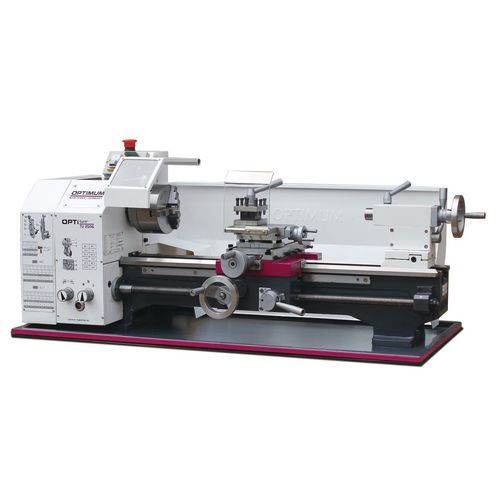

Center lathe

OPTIturn TU 2506 (400 V)

Center lathe with feed gear for the demanding user

1.980,00 EUR excl. Tax / pc(s).
2.356,20 EUR incl. 19% Tax / pc(s).
Promotional price *
1.799,00 EUR excl. Tax / pc(s).
2.140,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 29.02.2024 in Germany.

Art.-No. 3425003

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Precisely manufactured
    • Powerful, maintenance-free engine
    • Hardened and ground Z-axis guideway
    • Guaranteed concentricity of the spindle nose ≤ 0.009 mm
    • Concentricity on the lathe chuck ≤ 0.04 mm
    • Lead screw for thread cutting or automatic longitudinal turning
    • Leadscrew stored in two sintered bearings
    • All guides can be adjusted by wedge strips
    • Right / left rotation in the control panel switchable
    • Rolled trapezoid spindles
    • Thrust bearing
    • Tapered roller bearings in P5 quality
    • Hardened main spindle mounted in adjustable precision tapered roller bearings
    • Hardened spindle nose with Ø 26 mm spindle bore
    • Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm
    • Upper slide on cross slide slidable
    • Chip protection on the upper slide

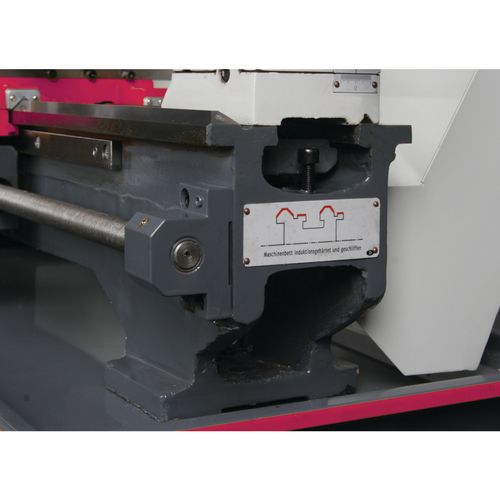

    • Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
    • Tailstock for taper turning ± 5 mm adjustable

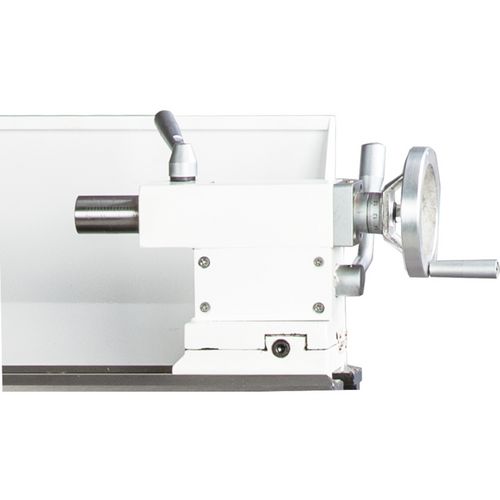

    • Tailstock quill and handwheel with adjustable fine scale 0.02 mm
    • Quick, easy and tool-free adjustment of the tailstock by a clamping lever

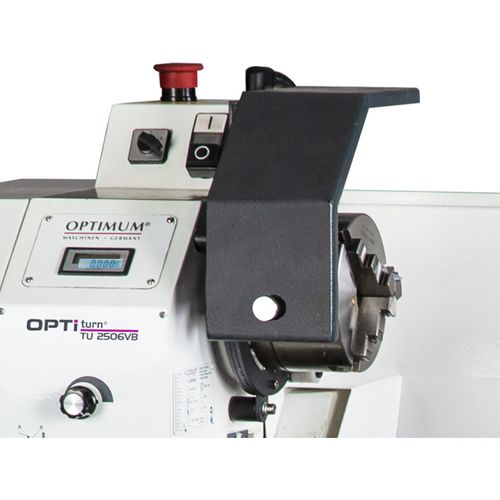

    • Emergency stop impact switch
    • Quadruple tool holder
    • 3-jaw lathe chuck in the standard scope of delivery
    • Change gear set in the standard scope of delivery for thread cutting
    • Fully equipped, allowing the user to be productive immediately after commissioning
    • TU 2506VB: Speed change easily adjustable via potentiometer


    Dimensions and weights
    Length approx.1250 mm
    Width/depth approx.585 mm
    Height approx.475 mm
    Weight approx.138 kg
    Electrical Data
    Drive motor output0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Longitudinal feed range0,07 – 0,4 mm/rev
    Number of longitudinal feeds6
    Metric pitch0,2 – 4 mm/rev
    Number of metric pitches21
    Imperial pitch56 – 8 Gg/1"
    Number of imperial pitches21
    Speed range
    Number of gears6 Steps
    Speed range125 – 2000 min¯¹
    Spindle chuckshort taper
    Spindle bore/rod passage diameter26 mm
    Tool holder max. chuck height12 mm
    Spindle coneMT 4
    ChuckMK 2
    Quill stroke65 mm
    Quill diameter30 mm
    Travel upper slide70 mm
    Travel cross slide110 mm
    Travel carriage saddle550 mm
    Work areas
    Max. height125 mm
    Max. width550 mm
    Swing diameter above machine bed246 mm
    Swing diameter above planing slide149 mm
    Bed width134 mm
    Unit: pc(s).
    Packaging unit: 1

    • Three-jaw lathe chuck Ø 125 mm, centrically exciting
    • Fixed centering point MK 2 and MK 4
    • Quadruple tool holder 12 mm
    • HSS lathe tool
    • Bulkhead
    • Chip pan
    • Change gear set
    • Operating tool
