Center lathe

OPTIturn TU 3008G

Guide and traction spindle lathes with longitudinal and face feed. TU 3008G with gearbox. TU 3008V with brushless motor for stepless speed control

4.479,00 EUR excl. Tax / pc(s).
5.330,01 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3427210

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Precise processing

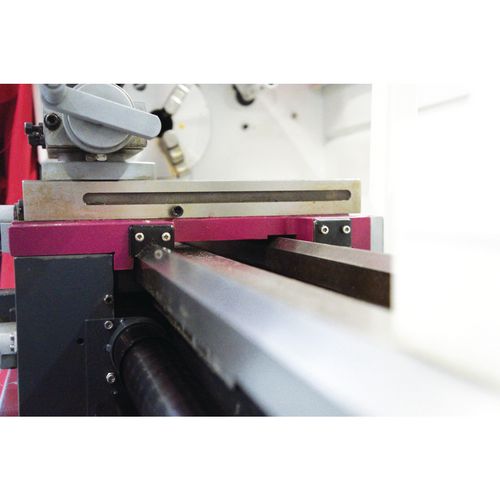

    • Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
    • Hardened and ground Z-axis guideway
    • Smooth-running feed gear with rounded gears running in an oil bath
    • Guaranteed concentricity of the spindle nose better than 0.009 mm
    • Concentricity on the lathe chuck better than 0.04 mm
    • Quadruple tool holder
    • All guides can be adjusted by wedge strips
    • Right / left rotation in the control panel switchable
    • Hardened main spindle mounted in adjustable, precision tapered roller bearings
    • Tapered roller bearings in P5 quality
    • Hardened spindle nose
    • Large spindle bore Ø 38 mm
    • Lead screw for thread cutting or automatic longitudinal turning
    • Guide and feed shaft stored in two sintered bearings
    • Automatic longitudinal / flat feeds
    • Lead screw and tension spindle cover

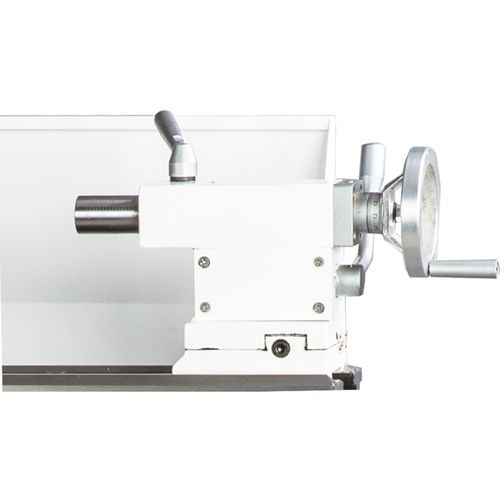

    • Tailstock for taper turning ± 5 mm adjustable
    • Tailstock quill and handwheel with adjustable fine scale 0.02 mm
    • Fast, easy and tool-free adjustment by means of a clamping lever
    • Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm
    • Change wheel set in the standard scope of supply for thread cutting
    • Emergency stop impact switch

    TU 3008

    • fan belt

    TU3008G

    • transmission

    TU 3008V

    • V-belt and brushless drive
    • Quiet, powerful and brushless DC drive with excellent control characteristics
    • High precision steel lining for higher speeds
    • Digital speed display



    Dimensions and weights
    Length approx.1525 mm
    Width/depth approx.705 mm
    Height approx.575 mm
    Weight approx.261 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Feed
    Longitudinal feed range0,085 – 0,832 mm/rev
    Number of longitudinal feeds9
    Flat feed range0,01 – 0,1 mm/rev
    Number of flat feeds9
    Pitches
    Metric pitch0,2 – 3,5 mm/rev
    Number of metric pitches18
    Imperial pitch56 – 8 Gg/1"
    Number of imperial pitches21
    Speed range
    Number of gears6
    Speed range165 – 2400 min¯¹
    Spindle
    Spindle chuckCamlock DIN ISO 702-2 No. 4
    Spindle bore/rod passage diameter38 mm
    Spindle coneMK 5
    Tool holder max. chuck height18 mm
    Tailstock
    ChuckMK 3
    Quill stroke70 mm
    Quill diameter38 mm
    Travel
    Travel upper slide65 mm
    Travel cross slide150 mm
    Travel carriage saddle600 mm
    Work areas
    Max. height158 mm
    Max. width720 mm
    Swing diameter above machine bed310 mm
    Swing diameter above planing slide190 mm
    Bed width180 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Three-jaw lathe chuck Ø 160 mm, centric clamping
    • Fixed centering point MK 3 and MK 5
    • Quadruple steel holder 25 mm
    • Bulkhead
    • Chip pan
    • Change gear set
    • Operating tool
