| Cutting ranges | |
|---|---|
| 0° round (full material) | 128 mm |
| 0° rectangle horizontal (full material) | 100 x 145 mm |
| -45° round (full material) | 90 mm |
| -45° rectangle horizontal (full material) | 70 x 85 mm |
| +45° round (full material) | 90 mm |
| +45° rectangle horizontal (full material) | 70 x 85 mm |
| +60° round (full material) | 45 mm |
| +60° rectangle horizontal (full material) | 45 x 55 mm |

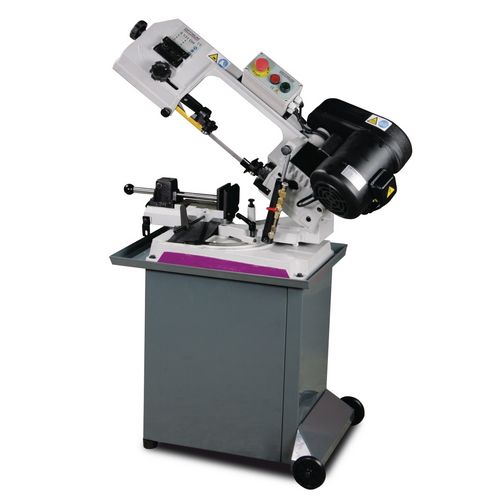

Metal band saw
OPTIsaw S 131GH
Metal band saw ideal for light sawing work. Miter saws from -45 ° to 60 ° via swiveling saw bow
1.269,00
EUR excl. Tax / pc(s).
1.510,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3300131
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Circuit breaker for the belt cover and the saw band cover in low-voltage version

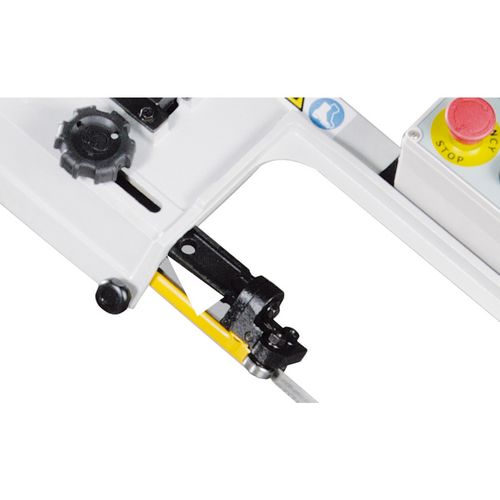

- Separate emergency stop impact switch
- Low-voltage electronics 24 V
- Silent run
- Mobile machine base
- Ball bearing saw band guide
- Three speed levels for a wide range of materials
- Micro switch for automatic limit switch

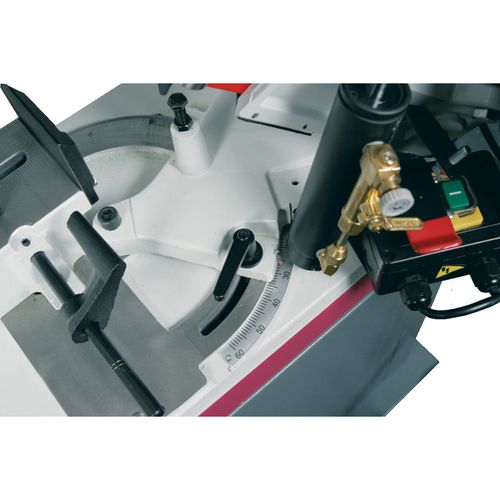

- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Adjustable material stop for serial work
- Quick-action vice for fast workpiece clamping
- With a powerful belt drive
| Dimensions and weights | |
|---|---|
| Max. length | 1085 mm |
| Max. height | 1300 mm |
| Length approx. | 965 mm |
| Width/depth approx. | 498 mm |
| Height approx. | 978 mm |
| Weight approx. | 78 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 22 / 31 / 55 m/min |
| Saw band length | 1638 mm |
| Saw band width | 13 mm |
| Saw band thickness | 0.65 mm |
| Cutting angle | -45 – +60 ° |
| Feed | infinitely adjustable |
| Lifting the saw bow | Manual |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Material stop
- Bi-metal saw band
- Machine base
