| Cutting ranges | |
|---|---|
| 0° round (full material) | 225 mm |
| 0° quadratic (full material) | 180 mm |
| 0° rectangle upright (full material) | 150 x 245 mm |
| -45° round (full material) | 120 mm |
| -45° quadratic (full material) | 120 mm |
| -45° rectangle horizontal (full material) | 150 x 120 mm |
| +45° round (full material) | 145 mm |
| +45° quadratic (full material) | 145 mm |
| +45° rectangle horizontal (full material) | 190 x 145 mm |
| +60° round (full material) | 90 mm |
| +60° quadratic (full material) | 90 mm |
| +60° rectangle horizontal (full material) | 115 x 90 mm |

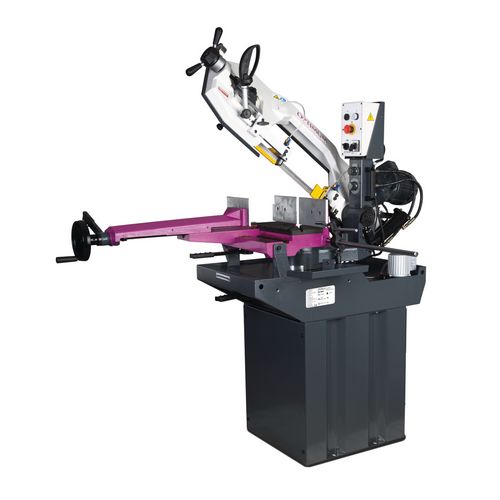

Metal band saw
OPTIsaw SD285
Metal band saw with swiveling saw bow
3.850,00
EUR excl. Tax / pc(s).
4.581,50 EUR incl. 19% Tax / pc(s).
4.581,50 EUR incl. 19% Tax / pc(s).
Promotional price *
3.469,00 EUR excl. Tax / pc(s).4.128,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3300287
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Low noise running
- Stable cast iron design
- High cutting accuracy due to vibration-free running
- Lowering of saw bow infinitely adjustable via hydraulic cylinder with throttle valve
- Microswitch for automatic limit switch
- Coolant device
- High-quality bi-metal saw band as standard equipment

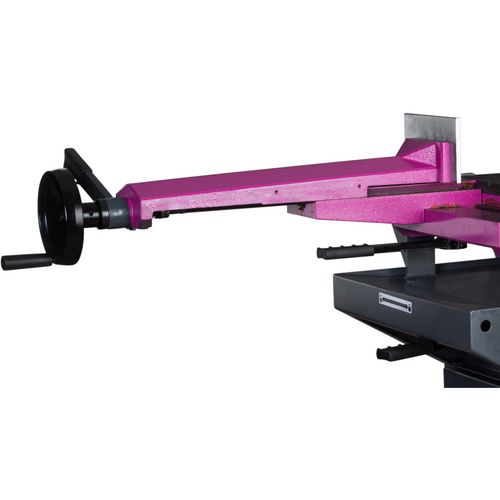

- Adjustable material stop for serial work
- Robust machine base

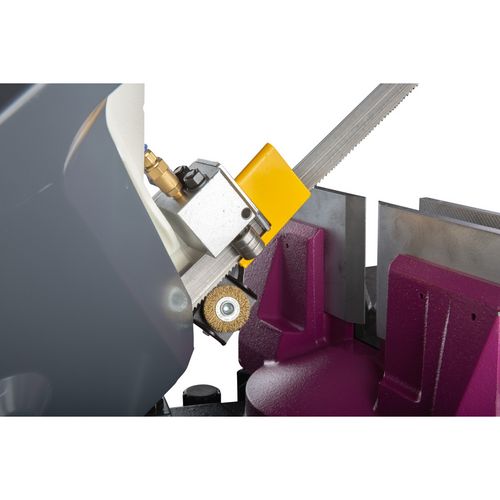

- Ball bearing saw band guide
- Well readable scale for angle adjustment
- Overload protection
| Dimensions and weights | |
|---|---|
| Width without material stop approx. | 550 mm |
| Height lower end position approx. | 1580 mm |
| Length approx. | 1450 mm |
| Weight approx. | 245 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.1 kW |
| Engine power coolant pump | 0.1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 45 / 90 m/min |
| Saw band length | 2480 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle | -45 – +60 ° |
| Lifting the saw bow | manual |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- material stop
- Bi-metal saw band
- substructure
- Coolant pump
