| Cutting ranges | |
|---|---|
| 0° round (full material) | 125 mm |
| 0° quadratic (full material) | 125 mm |
| 0° rectangle horizontal (full material) | 125 x 125 mm |
| +45° round (full material) | 85 mm |
| +45° quadratic (full material) | 85 mm |
| +45° rectangle horizontal (full material) | 85 x 85 mm |
| +60° round (full material) | 50 mm |
| +60° quadratic (full material) | 50 mm |
| +60° rectangle horizontal (full material) | 50 x 50 mm |
| Explanation Cutting range | The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |

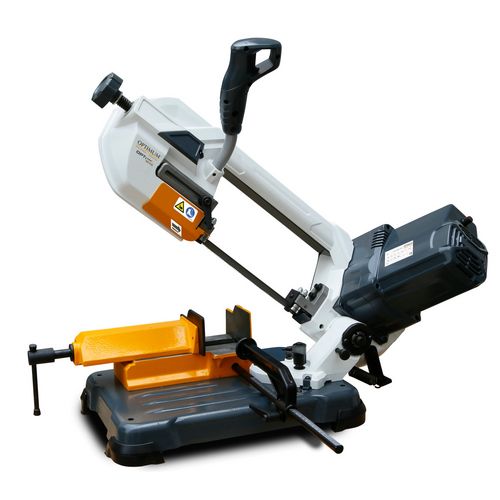

Miter band saw
OPTIsaw SQ-V13
Portable bandsaw for mitre cuts with high cutting precision, especially low noise. With infinitely variable saw blade speed
415,00
EUR excl. Tax / pc(s).
493,85 EUR incl. 19% Tax / pc(s).
493,85 EUR incl. 19% Tax / pc(s).
Promotional price *
389,00 EUR excl. Tax / pc(s).462,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3194013
Are you interested in this product?
Put a request
Find Trader
Productdetails
- In series with high-quality bi-metal saw blade
- Adjustable material stop for series work

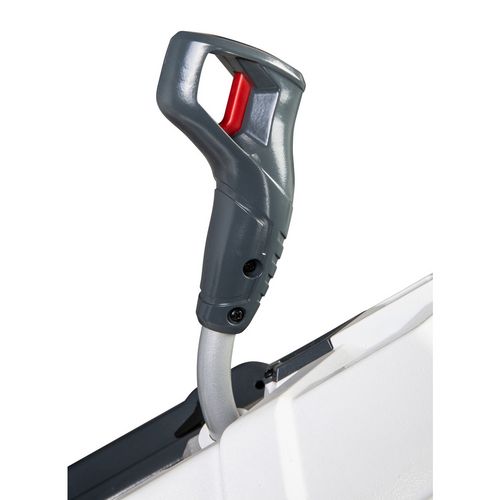

- Push button on the lever arm for saw blade run switches the run of the saw blade on and offbelt on and off
- bottom plate with non-slip feet
- saw bow can be swivelled from 0° to +60° to allow angular saw cuts
| Dimensions and weights | |
|---|---|
| Max. length | 795 (open vice) mm |
| Max. width/depth | 613 (with material stop) mm |
| Max. height | 640 (lower end position) mm |
| Length approx. | 670 mm |
| Width/depth approx. | 382 mm |
| Height approx. | 420 mm |
| Weight approx. | 23.3 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.4 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 30 – 80 m/min |
| Saw band length | 1440 mm |
| Saw band width | 12,5 mm |
| Saw band thickness | 0,6 mm |
| Cutting angle | 0 – 60 ° |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- material stop
- bi-metal saw blade
