    Manual toggle press

    PD8

    939,00 EUR excl. Tax / pc(s).
    1.117,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3359080

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Adjustable offset
    • Hardened and ground spindle
    • Long spindle guide
    • High force at the end of stroke
    • Honed ram guide and ground rams ensure a long service life and precise guidance
    • Quick changeover thanks to simple and safe adjustment of the working height
    • Ground press tables allow reproducible positioning of your tools
    • Locating holes in the ram and table plate for precise alignment of the tools

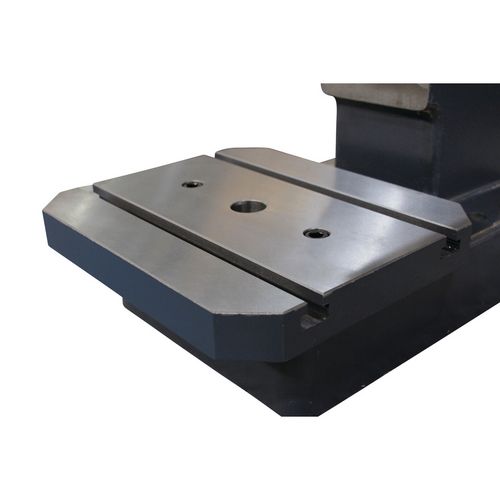

    • Support table with T-slots for attaching workpiece clamping fixtures
    • PD5 with locking function

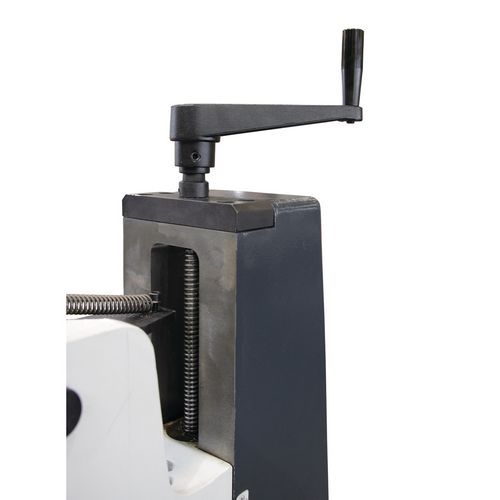

    • PD5 and PD8 with spindle for height adjustment



    Pressure force8 kN
    Piston stroke60 mm
    Piston Travel from to90 410 mm
    Work table number of T-slots2
    Work table T-slot size18 mm
    Maximum force8 kN
    Distance between press frame and press ram150 mm
    Bore spindle sleeve25 mm
    Press ram travel60 mm
    Press head travel range90 – 410 mm
    Table length260 mm
    Table width300 mm
    T-slot size18 mm
    VPE1
    Dimensions and weights
    Work table length260 mm
    Work table width300 mm
    Reach150 mm
    Diameter piston rod25 x 30 mm
    Length approx.300 mm
    Width/depth approx.460 mm
    Height approx.940 mm
    Weight approx.134 kg
    Unit: pc(s).
    Packaging unit: 1
