| Device data | |
|---|---|
| Pulse rate | 0.5 – 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas / water |

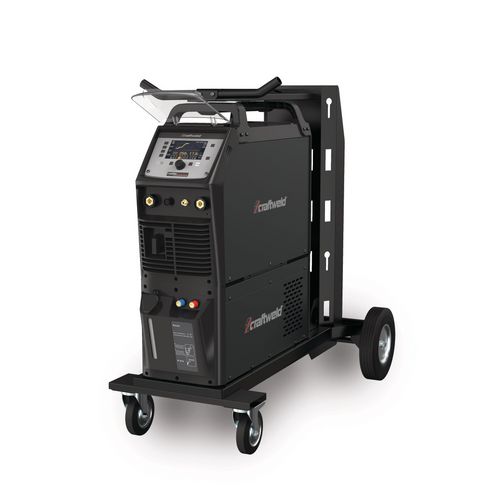

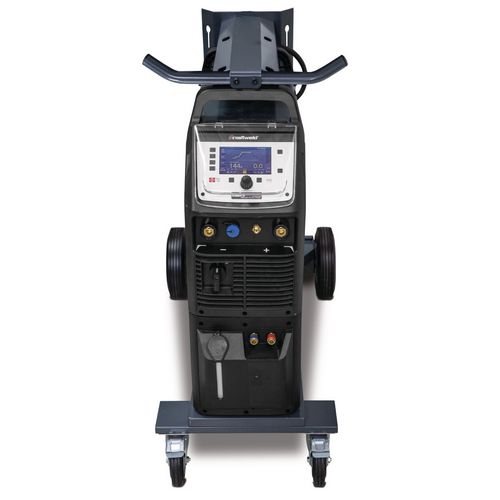

TIG inverter
CRAFT-TIG PRO 323 AC/DC PULSE
built in modern inverter technology
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1364323
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful TIG AC/DC welding machine, designed for heavy-duty use
- With 60% duty cycle at 320A, also suitable for continuous use at the power limit
- Intelligent ignition management with synergy characteristics ensures consistently good ignition behavior even in AC mode

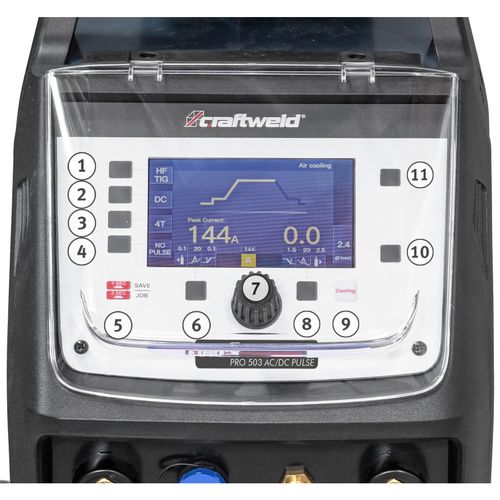

- Extremely simple operation via high-resolution color display with graphic illustration of the welding curve and setting options

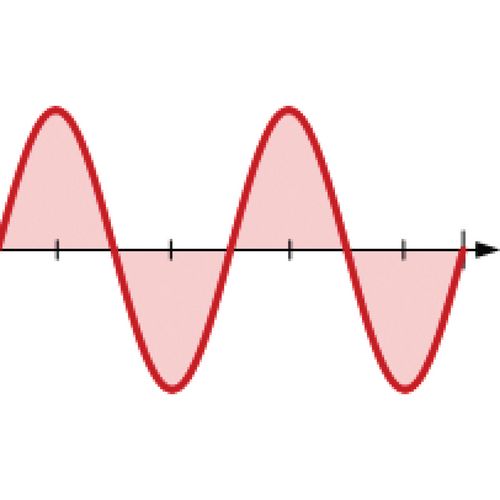

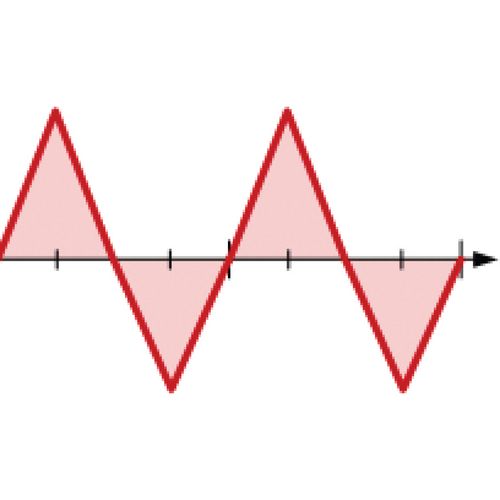

- Arc selection, adjustable balance and frequency in AC mode - welding characteristics can be adapted to the respective requirements
- Spot function
- Program memory with 10 memory locations
- Supports wireless foot pedal and remote control
| Dimensions and weights | |
|---|---|
| Length approx. | 700 mm |
| Width/depth approx. | 260 mm |
| Height approx. | 484 mm |
| Weight approx. | 29.7 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 60 % |
| Current at 100% DC 40°C TIG DC | 250 A |
| Current at 100% DC 40°C electrode | 250 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Total output | 19.0/16.0 kVA |
| Input current TIG AC | 18.7 A |
| Input current TIG DC | 18.9 A |
| Input current electrode AC | 23.5 A |
| Input current electrode DC | 24.7 A |
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 5.0 mm |
| Input | |
|---|---|
| TIG | 9 kVA |
| Electrode | 12.5 kVA |
| Efficiency | 90.48 % |
| Setting range | |
|---|---|
| TIG DC | 10 – 320 A |
| Electrode | 10 – 320 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Ground cable 35 mm² 4 m with 300 A clamp
- TIG torch SR18, 4 m water cooled
- gas hose 12 x 6 mm, 4 m
- Pressure reducer large
| Process MMA | ✔ |
| Process TIG pulsing | ✔ |
| LC display | 5 " |
| Water cooling device | 7 l / 400 V with 1 m connection cable |

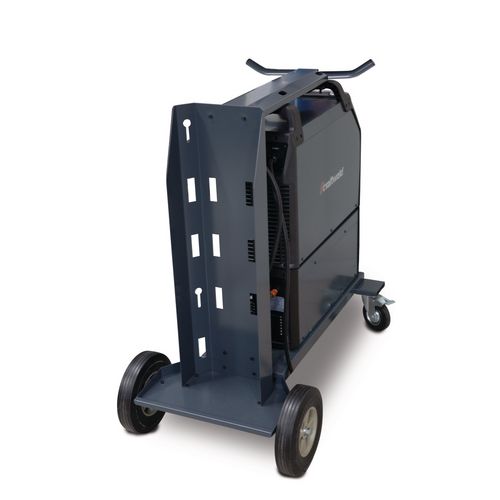

| Trolley | with two swivel castors at the front, two fixed castors at the rear and gas bottle holder |
| Single Spot | ✔ |
| Multi Spot | ✔ |
