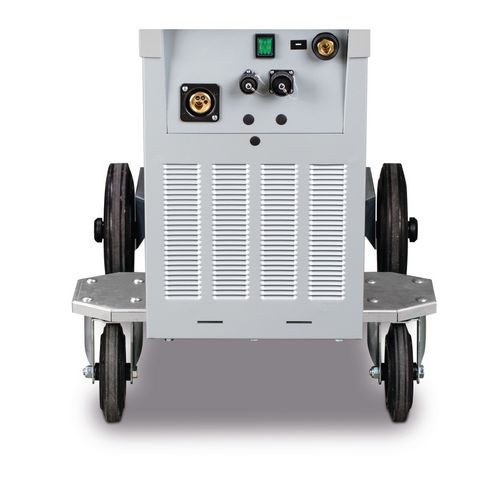

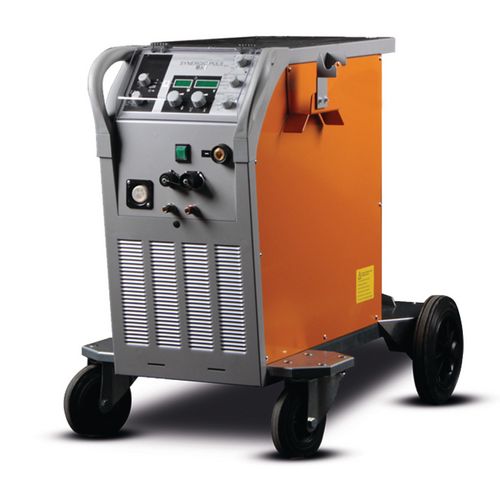

MIG/MAG welding machine
SYNERGIC.PULS 430 W
Modern welding technology for the highest demands
6.660,00
EUR excl. Tax / pc(s).
7.925,40
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1045432
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- MIG/MAG
Description
- Easy to use
- Clear operation
- Higher productivity and lower manufacturing costs by increasing the melting rate
- Less distortion due to controllable heat input
- Significantly less reworking by low-spray welding
- Quickly find the optimal setting
- Equipped with the right welding process for every application
- Certified processes according to WPQR
- Versatile and flexible for all common materials
The manufacturer Rehm is currently undergoing insolvency proceedings. Some products may not be available. Please contact us if you are interested.
- Health to love: Up to 70% less welding fumes
- Modern pulse technique: significantly reduced rework
- Price: High-tech pulse technology at a low price
| Cooling | |
|---|---|
| Cooling type | AF |
| Torch cooling | water |
| Dimensions and weights | |
|---|---|
| Length approx. | 1030 mm |
| Width/depth approx. | 605 mm |
| Height approx. | 845 mm |
| Weight approx. | 129 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 60 % |
| Current at 60% DC 40°C | 430 A |
| Current at 100% DC 40°C | 340 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Input | |
|---|---|
| MIG/MAG | 21 kVA |
| Electrode | 22 kVA |
| Efficiency | > 85 % |
| Setting range | |
|---|---|
| MIG/MAG | 10 – 430 A |
| Electrode | 20 – 430 A |
| MIG soldering | 10 – 430 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.8 – 1.2 mm |
| weldable wires stainless steel from to | 0.8 – 1.2 mm |
| weldable wires aluminium from to | 1.0 – 1.2 mm |
| Wire feet unit | 4 Rollers |
| Speed from to | 0 – 24 m/min |
| Wire feed rolls/driven | 4 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Feed rollers 1.0/1.2 mm
| Volume gas cylinder max. | 50 l |
