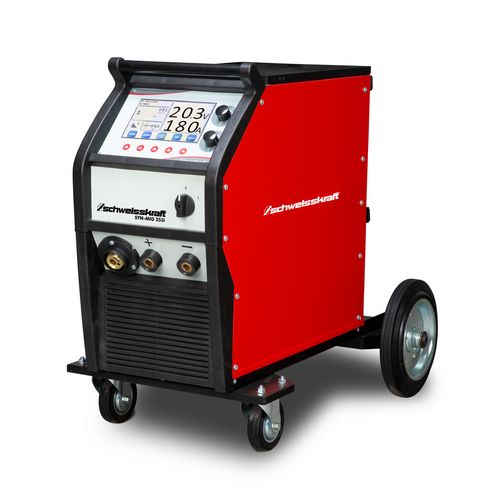

SYN-MIG 253i SC digital

Infinitely variable. Universal workshop machine for steel, stainless steel and aluminum

2.279,00 EUR excl. Tax / pc(s).
2.712,01 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 1089125

Are you interested in this product?

Put a request

Find Trader

Productdetails

Basic Features

Method

MAG
MIG
E-Hand

Sheet thicknesses

From 0.8 mm for steel and stainless steel (MAG)
From 2 mm for aluminium (MIG)

Base materials

Structural steels
Unalloyed and low-alloyed materials
CrNi steels ferritic/austenitic
Aluminium alloys

Typical applications

Locksmithery, mechanical engineering
agriculture, car workshop
Maintenance, repair

Description

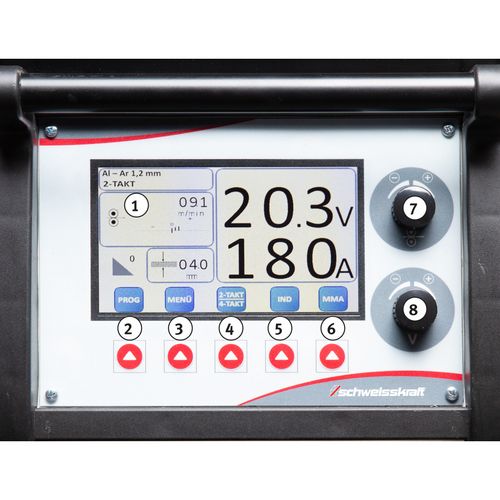

Particularly clear and simple operation via LCD display
Modern and proven inverter technology with synergy function
The Synergie function continuously adjusts the material thickness and the power and the wire adapts to it
Quick to the perfect result after setting in three steps: (1) gas, material, diameter (2) 2/4 cycle, points, interval (3) material thickness
Sensitive adjustment due to stepless controllability. Your advantage: Quick to the perfect result
Standard equipment: 2-stroke/4-stroke, spot and interval welding, gas test function, adjustable throttle, operating and overload indicator, temperature-controlled fan
Method: MAG, MIG, MMA
Typical areas of application: locksmith's shop, mechanical engineering, agriculture, automotive workshop, maintenance, repair
Base materials: structural steels, non-alloyed and low-alloyed materials, ferritic/austenitic CrNi steels, aluminium alloys
Two-year Schweißkraft warranty
Quality - Made in Europe

Modern and proven inverter technology with synergy function
Fast to the perfect result after setting in three steps:
1. Gas, material, diameter
2. 2/4 cycle, points, interval
3. Material thickness
Base materials: structural steels, non-alloy and low-alloy materials, CrNi steels ferritic/austenitic, aluminum alloys
Three-year Schweisskraft warranty

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Cooling
Cooling type	AF
Torch cooling	gas

Dimensions and weights
Length approx.	835 mm
Width/depth approx.	510 mm
Height approx.	720 mm
Weight approx.	29,5 kg

Duty cycle
Duty cycle at Imax. 40°C	60 %
Current at 60% DC 40°C	250 A
Current at 100% DC 40°C	200 A

Electrical connections
Input current	12 A

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Power consumption
MIG/MAG	7,5 kVA
Electrode	7,5 kVA
Efficiency	0.9

Setting range
MIG/MAG	25 – 250 A
Electrode	25 – 200 A
Switching stages	stepless

Standards and certifications
Standard	EN 60 974-1; -10
EMC class	A
Explanation EMC class	This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
Marking	CE, S

Wire feed
weldable wires steel from to	0.8 – 1.2 mm
weldable wires stainless steel from to	0.8 – 1.2 mm
weldable wires aluminium from to	1.0 – 1.2 mm
Wire feet unit	4 Rollers
Speed from to	1,0 – 22 m/min
Wire feed rolls/driven	4 Rollers

VPE

Unit: pc(s).
Packaging unit: 1

Torch SMB 25/3m
Ground cable 4m / 35mm²
Pressure reducer large
Basket spool adapter
Feed rollers V0.8 - 1.0 mm
Power cable 5 m with 5-pole plug 16A

Type of construction

compact
