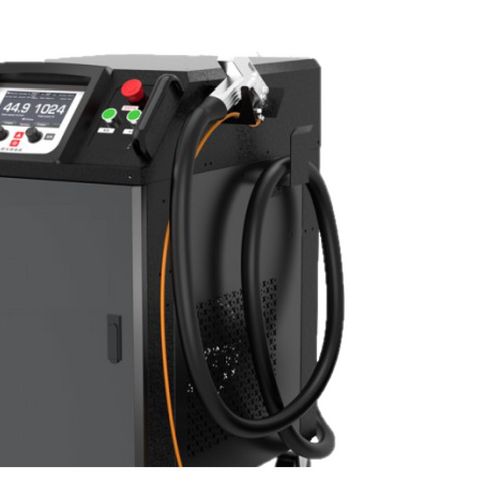

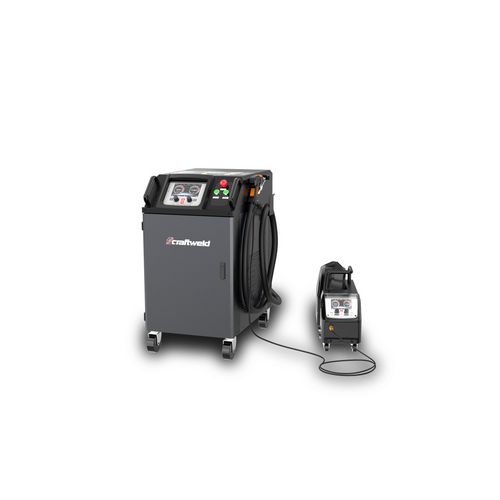

Craft-Laser 2000 WS

The Craft-Laser 2000 WS is a water-cooled, hand-held laser welding machine, built for the highest demands and heavy-duty applications. Maximum focus stability at 100%ED guarantees maximum process reliability.

Technical highlights

• Water-cooled 2,000W single-mode laser source with 100%ED

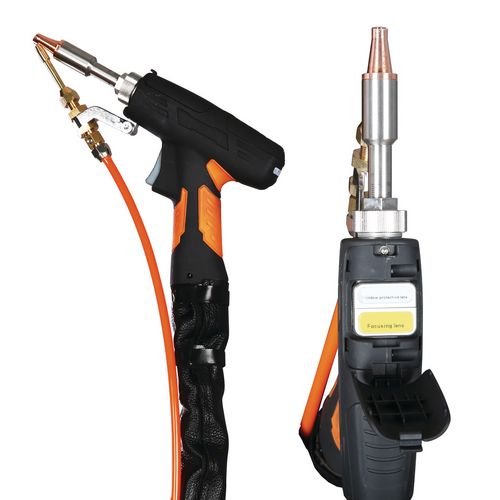

• Specially developed, water-cooled laser gun and improved optical systems guarantee maximum focus stability
• Program selection via laser gun possible
• High-performance water cooling from the laser cutting area guarantees maximum process reliability

Operation

• Extremely simple operation thanks to synergy characteristics
• Three steps to the finished welding result. Automatic adjustment of power, wire feed, oscillation width, oscillation frequency, laser frequency, PWM, hot start, etc.

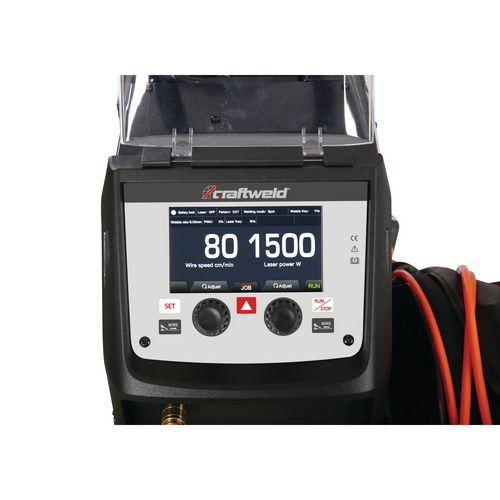

• High-resolution display enables optimum readability of all necessary parameters. Integrated help ensures better understanding of the setting options

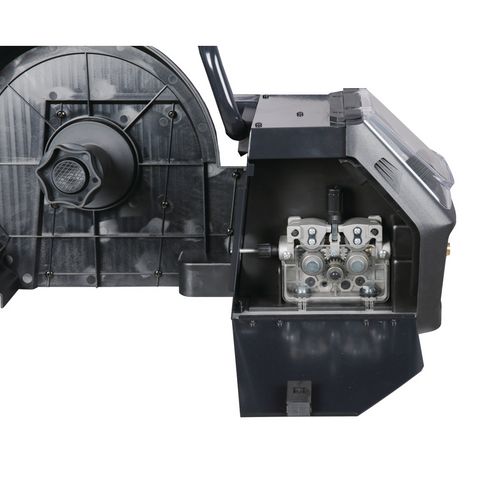

• Fully integrated operation in the wire feed case - optional operation via machine or wire feed

Technical features

• 20µm single-mode laser sources. Double the power density of the standard 50µm multi-mode laser sources of many competitors ensure significantly higher penetration depths and beam qualities.
• High-performance laser cells paired with gas-cooled torches ensure maximum power and focus stability.
• 2-in-1 machine: welding and cleaning: Laser cleaning is perfect for paint stripping, rust removal and scale removal
• Optional: Ethernet-IP interface for robot applications
• Optional: double wire feed

Safety and security

• 2-channel emergency stop system
• 2-channel safety interface for access monitoring (door contact switch)
• Key switch to prevent unauthorized use
• 2-channel fiber breakage detection and monitored QBH connection
• Safety instructions and manual activation of laser release at each start
• Double push button prevents unintentional activation of the laser
• Water-cooled
• Suitable for heavy-duty applications

Advantages of laser welding compared to conventional welding processes

• Hardly any distortion, incredibly fast, incredibly good quality (even with very thin materials <1 mm)
• Consumes approx. 70% less energy
• Quick and easy to learn
• High process reliability
• Extreme time savings with greatly reduced rework at the same time
• One of the lightest torches on the market at approx. 680 g
• 2-channel safety loop for maximum safety

Advantages of the Craft laser

• Laser cleaning with up to 100 mm scan width with autofocus
• 2-in-1 machine: welding and cleaning
• Complete synergy - no more parameter lists
• Service-friendly - no more inconvenient sending in

• Water-cooled 2,000W single-mode laser source with 100%ED
• Specially developed, water-cooled laser gun and improved optical systems guarantee maximum focus stability
• Program selection via laser gun possible
• High-performance water cooling from the laser cutting area guarantees maximum process reliability

• Welding gun
• VarioProtect LASER-M laser welding helmet
• 1 wire feed nozzle 0.8 mm
• 1 wire feed nozzle 1.0 mm
• 1 wire feed nozzle 1.2 mm
• 1 wire feed nozzle 1.6 mm
• 5 protective glasses
• 1 nozzle AS-12
• 1 nozzle ES-12
• 1 nozzle CS-12
• 1 nozzle BS-16
• 1 nozzle FS-16
• 1x nozzle C
• 1 nozzle AS-20D
• 1 cutting nozzle
• 1 laser cleaning set
• 1 feed roller 0.8 - 1.0 mm V-groove
• 1 feed roller 1.0 - 1.2 mm V-groove
• 1 feed roller 1.2 - 1.6 mm V-groove
• 1 feed roller 1.0 - 1.2 mm U-groove
• 1 feed roller 0.8 - 1.0 mm U-groove
• 1 feed roller 1.2 - 1.6 mm U-groove
