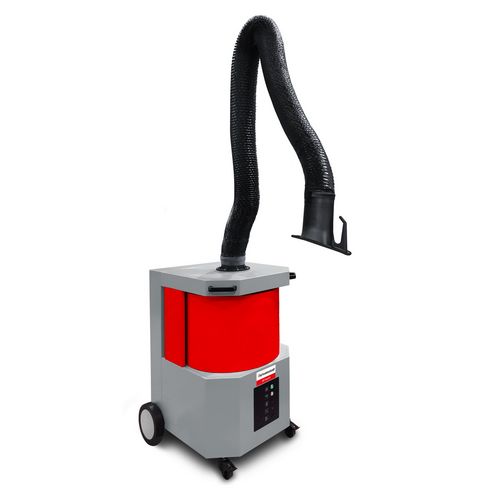

Welding fumes extraction unit
SRF SmartFil
The mobile professional extraction system for regular use
3.120,00
EUR excl. Tax / pc(s).
3.712,80 EUR incl. 19% Tax / pc(s).
3.712,80 EUR incl. 19% Tax / pc(s).
Promotional price *
3.029,00 EUR excl. Tax / pc(s).3.604,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 1800031
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Application range: Medium smoke/dust volumes with regular use at changing workplaces.
- Compact and stable design
- Safe operation due to rotating field detection
- Three meter extraction arm
- Less tracking of the extraction arm due to flow-optimized design of the extraction hood
- Suction hood with throttle valve can be rotated 360 degrees
- Increased safety due to filter monitoring and contamination-free filter replacement
- High efficiency due to large capacity and long filter service life
- Filter area of the replacement filter 42 square meters
- Quality Made in Germany
- Safe operation due to rotating field detection
- Less tracking of the extraction arm thanks to the flow-optimized design of the extraction hood
- Increased safety through filter monitoring
- High efficiency thanks to large capacity and long filter life
| Dimensions and weights | |
|---|---|
| Length approx. | 795 mm |
| Width/depth approx. | 836 mm |
| Height approx. | 1169 mm |
| Weight approx. | 131 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Max. extraction performance | 1100 m³/h |
| Extraction arm type | Hose design |
| Extraction hood length | 360 mm |
| Extraction hood width | 295 mm |
| Fan type | Radial ventilator |
| Filter | |
|---|---|
| Filtering process | 2-stage |
| Area approx. | 25 m² |
| Noise emission | |
|---|---|
| Sound pressure level | 70 dB(A) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
3m Extraction arm
